Reference Value

WARNING: This page is about a different car, the 2008 Infiniti M45 and 2008 Infiniti M35. However, it is still accessible from the selected car via links, so may be relevant.

TERMINAL LAYOUT

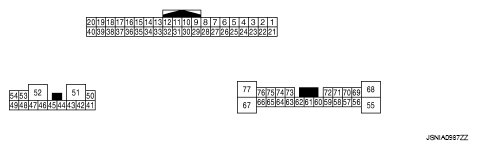

Fig 1: Identifying Bose Amp Connector Terminal Layout

Courtesy of NISSAN MOTOR CO., U.S.A.

PHYSICAL VALUES

CONNECTOR TERMINAL VOLTAGE REFERENCE TABLE

Terminal (Wire color)		Description		Condition		Reference value (Approx.)
+	-	Signal name	Input/Output	Condition		Reference value (Approx.)
16 (B/W)	15 (L)	Voice guidance signal	Input	Ignition switch ON	When inputting voice guidance.	Courtesy of NISSAN MOTOR CO., U.S.A.
25 (L)	26 (B/W)	MIC. signal (for AudioPilot®)	Input	Ignition switch ON	When inputting noise.	Courtesy of NISSAN MOTOR CO., U.S.A.
27	-	Shield	-	-	-	-
35 (G)	-	AV communication signal (L)	Input/Output	-	-	-
36 (G)	-	AV communication signal (L)	Input/Output	-	-	-
37 (R)	-	AV communication signal (H)	Input/Output	-	-	-
38 (R)	-	AV communication signal (H)	Input/Output	-	-	-
45 (BR)	46 (B/R)	Sound signal woofer	Output	Ignition switch ON	Sound output.	Courtesy of NISSAN MOTOR CO., U.S.A.
47 (B/W)	Ground	Ground	-	Ignition switch ON	-	0 V
50 (Y)	Ground	Battery power supply	Input	Ignition switch OFF	-	Battery voltage
51 (R)	Ground	Battery power supply	Input	Ignition switch OFF	-	Battery voltage
52 (B/W)	Ground	Ground	-	Ignition switch ON	-	0 V
54 (O)	49 (B/P)	Sound signal rear door speaker RH	Output	Ignition switch ON	Sound output.	Courtesy of NISSAN MOTOR CO., U.S.A.
58 (P)	59 (L/Y)	Sound signal front door speaker RH	Output	Ignition switch ON	Sound output.	Courtesy of NISSAN MOTOR CO., U.S.A.
60 (BR)	Ground	ACC power supply	Input	Ignition switch ACC	-	Battery voltage
64 (P)	63 (W)	Sound signal LH	Input	Ignition switch ON	Audio sound output.	Courtesy of NISSAN MOTOR CO., U.S.A.
66 (P)	65 (G)	Sound signal RH	Input	Ignition switch ON	Audio sound output.	Courtesy of NISSAN MOTOR CO., U.S.A.
68 (LG)	55 (B/Y)	Sound signal rear door speaker LH	Output	Ignition switch ON	Sound output.	Courtesy of NISSAN MOTOR CO., U.S.A.
69 (V)	70 (G/Y)	Sound signal center speaker	Output	Ignition switch ON	Sound output.	Courtesy of NISSAN MOTOR CO., U.S.A.
71 (BR)	72 (R)	Sound signal front door speaker RH	Output	Ignition switch ON	Sound output.	Courtesy of NISSAN MOTOR CO., U.S.A.
