AWD : Component

WARNING: This page is about a different car, the 2009 Infiniti M35. However, it is still accessible from the selected car via links, so may be relevant.

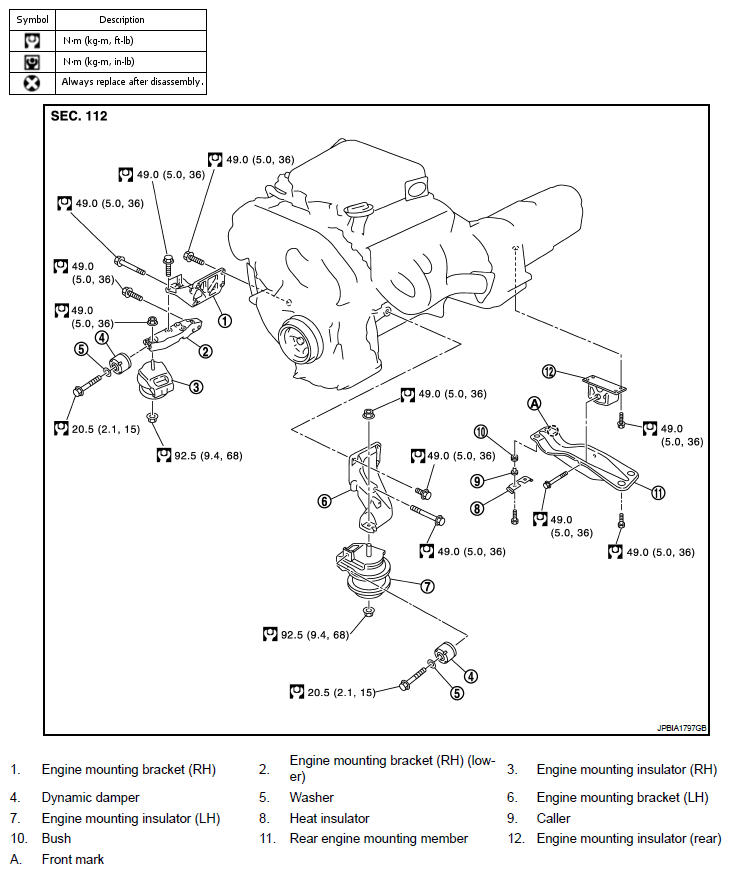

Fig 1: Engine Assembly Replacement Components With Torque Specifications (AWD)

Courtesy of NISSAN MOTOR CO., U.S.A.

Refer to "COMPONENT " for symbols in the figure.
