Customize Parameters

WARNING: This page is about a different car, the 2008 Toyota Tundra. However, it is still accessible from the selected car via links, so may be relevant.

CUSTOMIZING FUNCTION WITH TECHSTREAM

HINT:

The following items can be customized.

NOTE:

When the customer requests a change in a function, first make sure that the function can be customized.
Be sure to make a note of the current settings before customizing.
When troubleshooting a function, first make sure that the function is set to the default setting.

Connect the Techstream to the DLC3.
Turn the ignition switch ON.
Turn the tester on.
Enter the following menus:
1. Techstream - Select: Customize Setting.

Select the setting by referring to the table below.

Techstream

Main Body

MAIN BODY - TECHSTREAM

Display	Default	Contents	Setting
I/L ON / ACC OFF	ON	Illuminates light when ignition switch turned to ACC (Room light illuminated when interior light switch set to DOOR)	ON / OFF
Lighting Time	15s	Changes illumination duration after door closure (It will quickly fade out when turning ignition switch ON)	7.5s/15s/30s
I/L ON / Unlock	ON	Function to light up room light when unlocking with door key cylinder (Room light illuminated when interior light switch set to DOOR)	ON/OFF
Light OFF Delay	30s	Function to continue illuminating headlight for certain period of time after closing all doors with ignition switch turned from ON to OFF under condition that light control switch is at HEAD or AUTO with the headlight ON	OFF / 30s / 60s / 90s
Sensitivity	NORMAL	Function to adjust sensitivity of lighting illumination*1	LIGHT2 / LIGHT1 / NORMAL / DARK1 /DARK2
Disp Ex ON Sen	NORMAL	Changes brightness when lowering lights such as combination meter indicator light, A/C indicator light, and clock light*2	LIGHT2 / LIGHT1 / NORMAL / DARK1/DARK2
Disp Ex OFF Sen	NORMAL	Changes brightness when canceling lowering lights such as combination meter indicator light, A/C indicator light, and clock light*3	LIGHT2 / LIGHT1 / NORMAL / DARK1/DARK2
HINT: *1: The sensitivity adjustment may be difficult to confirm. Check by driving the customer's vehicle.

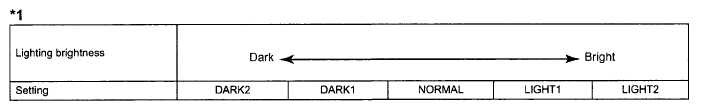

Fig 1: Customize Parameters Chart (1 Of 3)

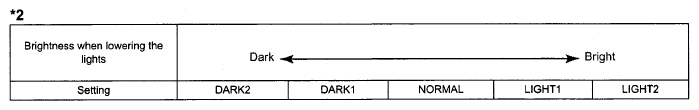

Fig 2: Customize Parameters Chart (2 Of 3)

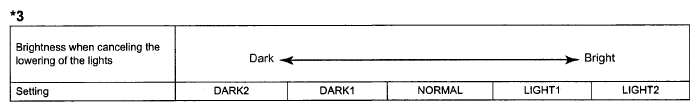

Fig 3: Customize Parameters Chart (3 Of 3)
