Light Control Switch Circuit: Wiring Diagram

WARNING: This page is about a different car, the 2008 Toyota Tundra. However, it is still accessible from the selected car via links, so may be relevant.

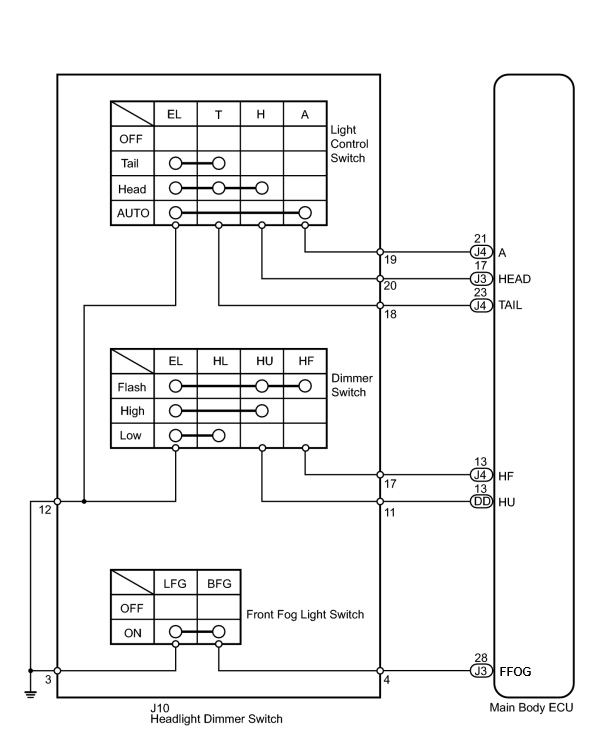

Fig 1: Identifying Light Control Switch - Wiring Diagram
G00412852Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
