Light Control Rheostat: Inspection
WARNING: This page is about a different car, the 2008 Toyota Tundra. However, it is still accessible from the selected car via links, so may be relevant.
- INSPECT LIGHT CONTROL RHEOSTAT (w/o TAIL Cancel Switch)
- Measure the resistance according to the value(s) in the table below.
Standard resistance

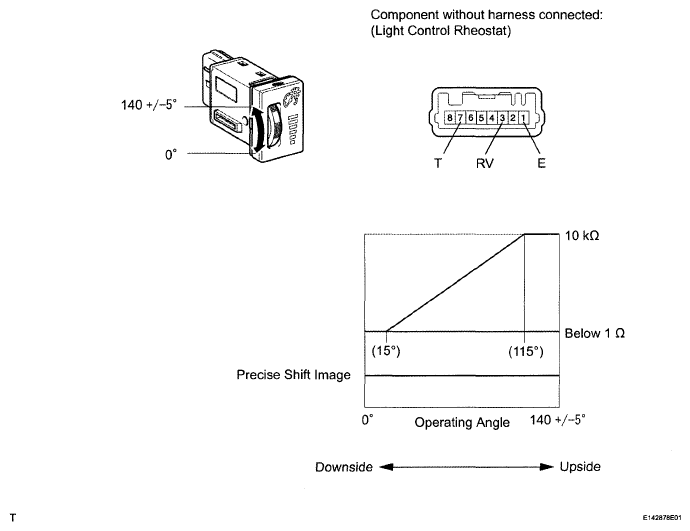

LIGHT CONTROL RHEOSTAT (W/O TAIL CANCEL SWITCH) RESISTANCE REFERENCETester Connection Switch Condition Specified Condition 3 (RV) - 1 (E) Downside → Upside See illustration 7 (T) - 1 (E) If the result is not as specified, replace the rheostat.
- Measure the resistance according to the value(s) in the table below.
- INSPECT LIGHT CONTROL RHEOSTAT (w/ TAIL Cancel Switch)
- Measure the resistance according to the value(s) in the table below.
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Standard resistance

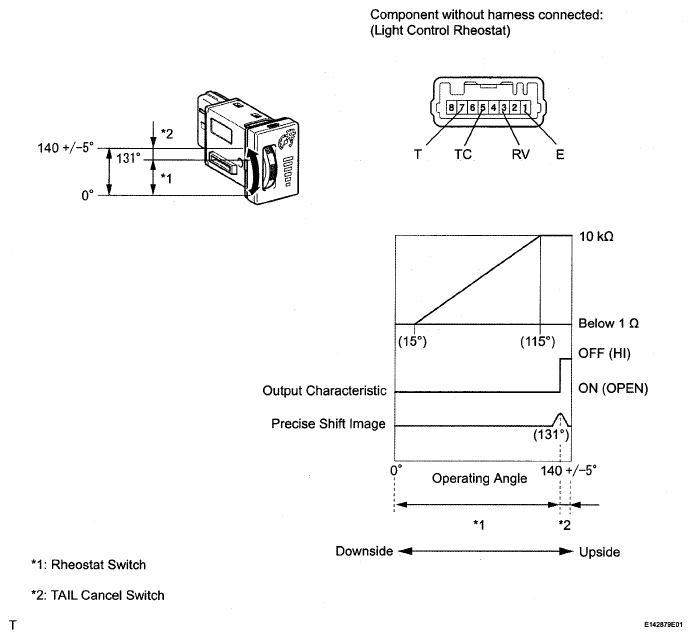

LIGHT CONTROL RHEOSTAT (W/ TAIL CANCEL SWITCH) RESISTANCE REFERENCETester Connection Switch Condition Specified Condition 3 (RV) - 1 (E) Downside → Upside See illustration 5 (TC) - 1 (E) 7 (T) - 1 (E) If the result is not as specified, replace the rheostat.
- Measure the resistance according to the value(s) in the table below.
