Parts Location

WARNING: This page is about a different car, the 2008 Toyota Tundra. However, it is still accessible from the selected car via links, so may be relevant.

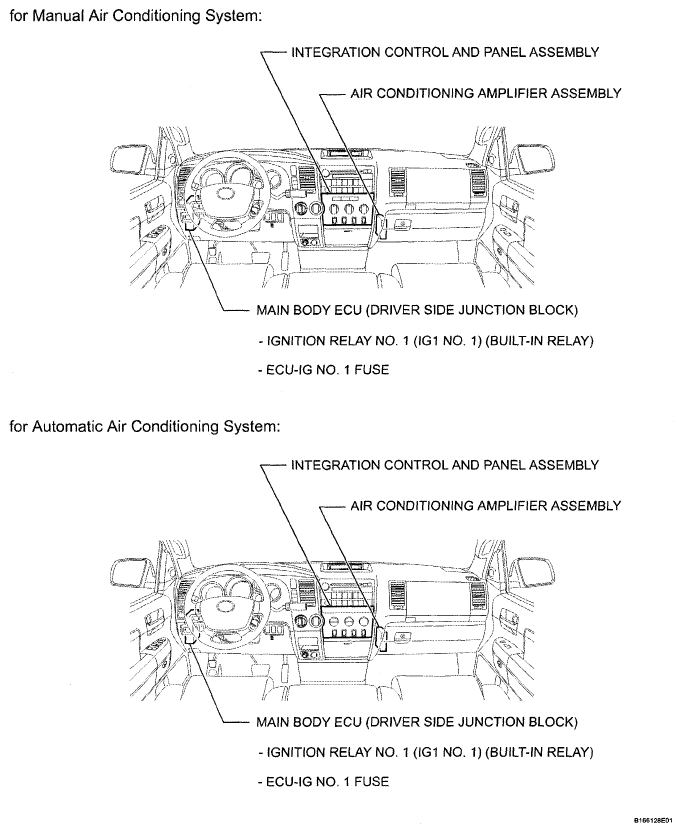

Fig 1: Identifying LIN Communication System Parts Location (For Manual Air Conditioning System)
G05163361Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

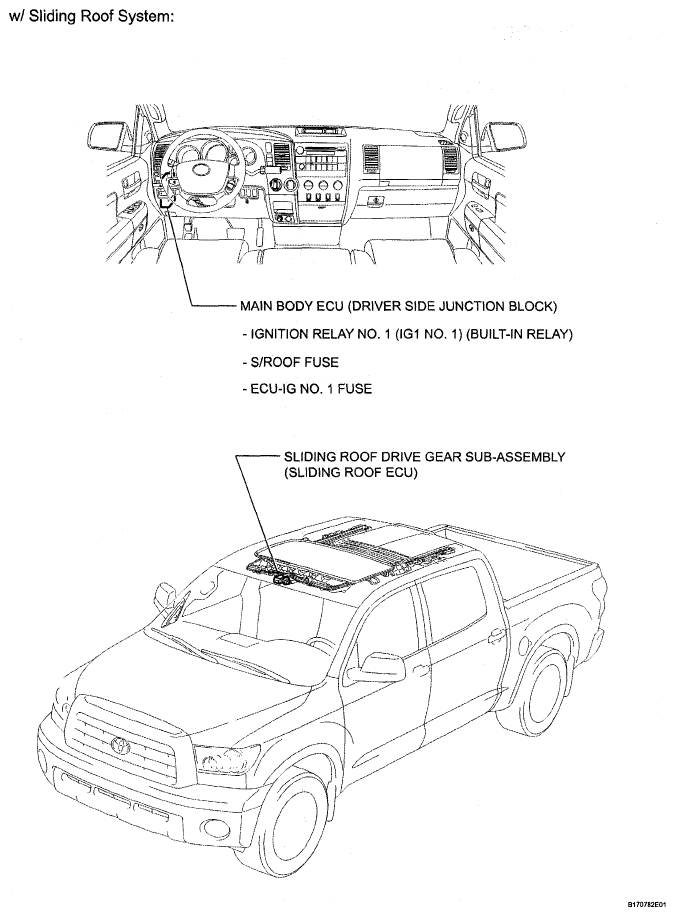

Fig 2: Identifying LIN Communication System Parts Location (W/Sliding Roof System)
G05163362Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
