Front Passenger Side Power Window does not Operate with Front Passenger Side Power Window Switch: Wiring Diagram

WARNING: This page is about a different car, the 2008 Toyota Tundra. However, it is still accessible from the selected car via links, so may be relevant.

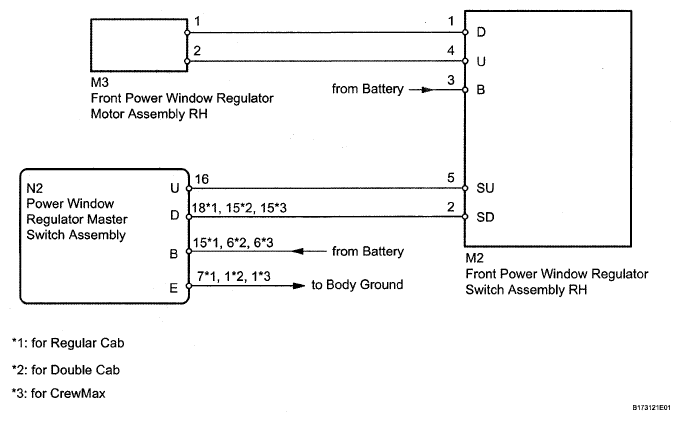

Fig 1: Power Window Regulator Master Switch Assembly RH Wiring Diagram
G05161437Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
