Removal and Installation: Notes

WARNING: This page is about a different car, the 2008 Infiniti FX45 and 2008 Infiniti FX35. However, it is still accessible from the selected car via links, so may be relevant.

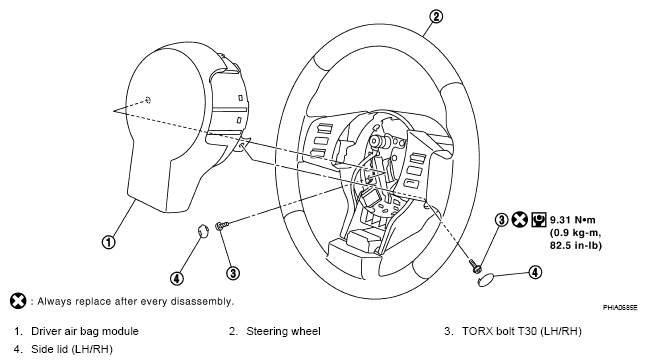

Fig 1: Driver Air Bag Module Replacement Components With Torque Specifications
G05220719Courtesy of NISSAN MOTOR CO., U.S.A.
WARNING:
  • Before servicing SRS, turn ignition switch OFF, disconnect both battery cables and wait at least 3 minutes.
  • Always work from the side of driver air bag module.
  • Do not use air tools or electric tools for servicing.
