Inspection Procedure

CHECK VDC OFF SWITCH

Turn ignition switch OFF and disconnect VDC OFF switch connector M24.

Check continuity between VDC OFF switch connector M24 terminal 1 and 2.

CONTINUITY CHART

VDC OFF switch	Condition	Continuity
1, 2	VDC OFF switch ON	Yes
1, 2	VDC OFF switch OFF	No

Fig 1: Checking Continuity Between VDC Off Switch Terminal Side Harness Connector M24 Terminal 1 And 2

Courtesy of NISSAN MOTOR CO., U.S.A.

OK or NG

OK: GO TO 2.

NG: VDC OFF switch is malfunctioning. Replace VDC OFF switch.

CHECK VDC OFF SWITCH HARNESS

Disconnect ABS actuator and electric unit (control unit) connector E30.

Check continuity between VDC OFF switch connector M24 and ABS actuator and electric unit (control unit) connector E30.

CONTINUITY CHART

ABS actuator and electric unit (control unit)	VDC OFF switch	Continuity
31	1	Yes
31	Ground	No
Ground	2	Yes

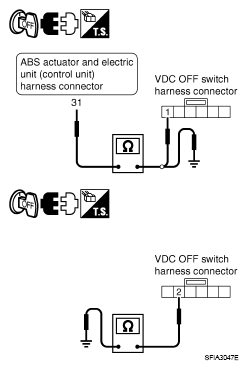

Fig 2: Checking Continuity Between VDC OFF Switch Terminal Side Harness Connector M24 And ABS Actuator And Electric Unit Terminal Side Harness Connector E30

Courtesy of NISSAN MOTOR CO., U.S.A.

OK or NG

OK: INSPECTION END

NG: Repair or replace malfunctioning components.
