Zone Variation Setting Procedure

WARNING: This page is about a different car, the 2008 Infiniti FX45 and 2008 Infiniti FX35. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: The zone setting is factory preset ("default" setting) to zone 8.

Press and hold the inside mirror switch for 6 - 9 seconds.
The current zone setting appears on the compass display.
Find the current geographical location number in the Zone Variation Chart.
Select the new zone number. (Press the inside mirror switch until the new zone number appears on the compass display.)
After select the new zone number, the compass display will automatically shows a direction within a few seconds.
Preform the following Calibration Procedure for more accurate indications.

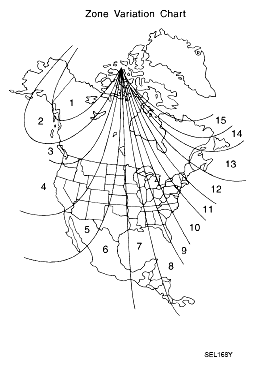

Fig 1: Identifying Zone Variation Chart

Courtesy of NISSAN MOTOR CO., U.S.A.
