Exploded View

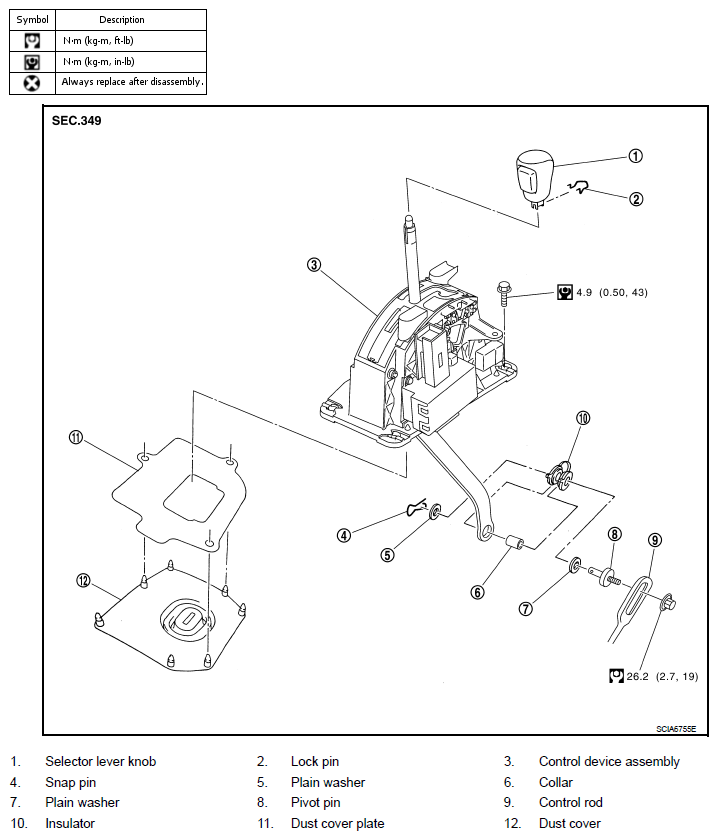

Fig 1: Exploded View Of Control Device With Torque Specifications
G06307731Courtesy of NISSAN MOTOR CO., U.S.A.

Refer to "COMPONENT " for symbols in the figure.
