Removal and Installation: Notes

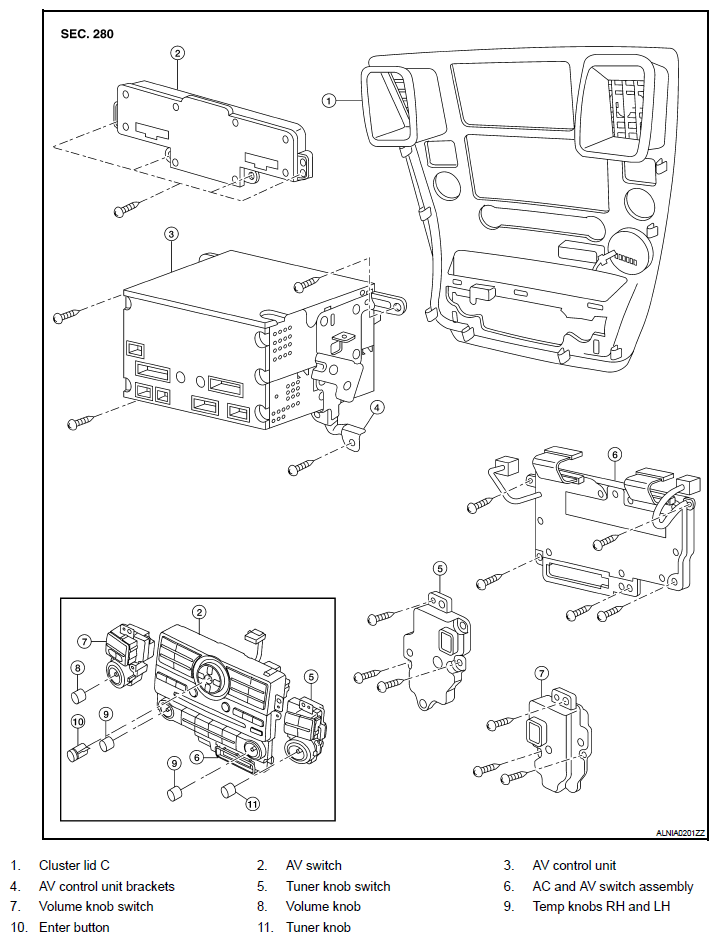

Fig 1: Identifying AV Control Unit Connector

Courtesy of NISSAN MOTOR CO., U.S.A.

CAUTION: Only remove and replace the A/C or AV switch assembly knobs if damaged or missing. The knobs must not be removed from the switches when removing and installing the A/C or AV switch assembly to prevent damage to the switch assembly.
