Confirmation/Adjustment Mode
- Start the diagnosis function and select "Confirmation/Adjustment". The confirmation/adjustment mode indicates where each item can be checked or adjusted.
- Select each item on the "Confirmation/Adjustment" mode screen to display the relevant trouble diagnosis screen. Touch "BACK" on the display or press the "BACK" button to return to the initial Confirmation/Adjustment Mode screen.

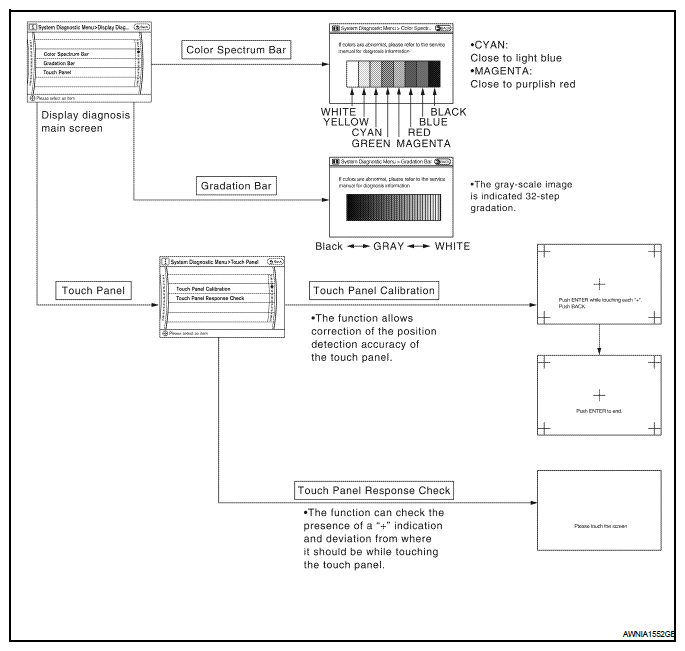

Display Diagnosis
The tint of the color bar indication is as per the following list if RGB signal error is detected.
R (red) signal error: Light blue (Cyan) tint
G (green) signal error: Purple (Magenta) tint
B (blue) signal error: Yellow tint
Vehicle Signals
A comparison check can be made of each actual vehicle signal and the signals recognized by the system.
VEHICLE STATUS REFERENCE
| Diagnosis item | Display | Vehicle status | Remarks |
|---|---|---|---|
| Vehicle speed | ON | Vehicle speed > 0 km/h | Changes in indication may be delayed by approximately 1.5 seconds. This is normal. |
| OFF | Vehicle speed = 0 km/h | ||
| - | Ignition switch in ACC position | ||
| Parking brake | ON | Parking brake is applied. | |
| OFF | Parking brake is released. | ||
| Lights | ON | Light switch ON | Block the light beam from the auto light optical sensor. |
| OFF | Light switch OFF | ||
| Ignition | ON | Ignition switch ON | - |
| OFF | Ignition switch in ACC position | ||
| Reverse | ON | Selector lever in R position | Changes in indication may be delayed by approximately 1.5 seconds. This is normal. |
| OFF | Selector lever in any position other than R | ||
| - | Ignition switch in ACC position |
Speaker Test
Select "Speaker Test" to display the speaker diagnosis screen. Press "Start" to generate a test tone in speakers. Touch "End" to stop the test tones.
