Function and System Application

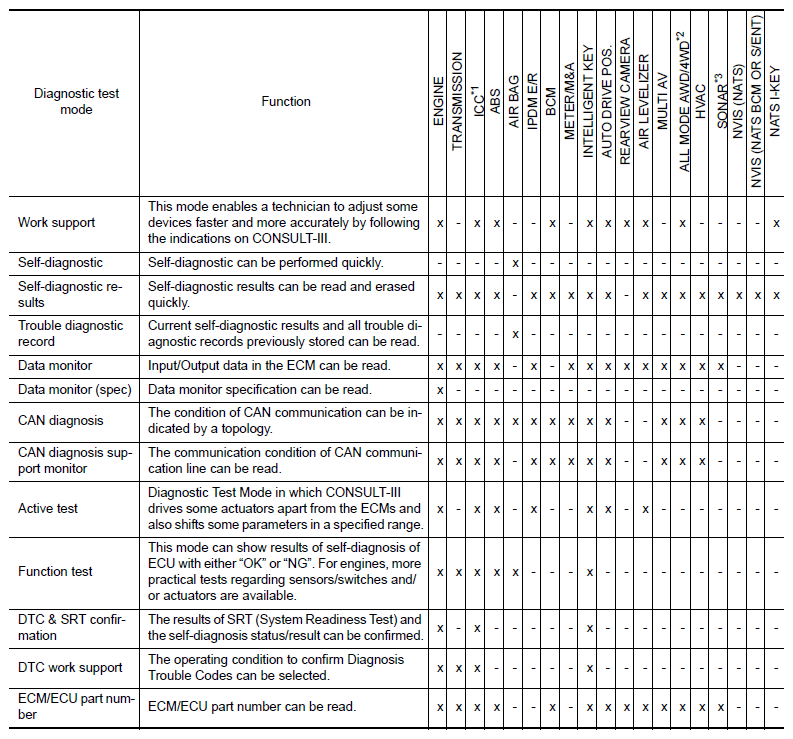

Fig 1: Diagnostic Test Chart (1 Of 2)
G06319319Courtesy of NISSAN MOTOR CO., U.S.A.

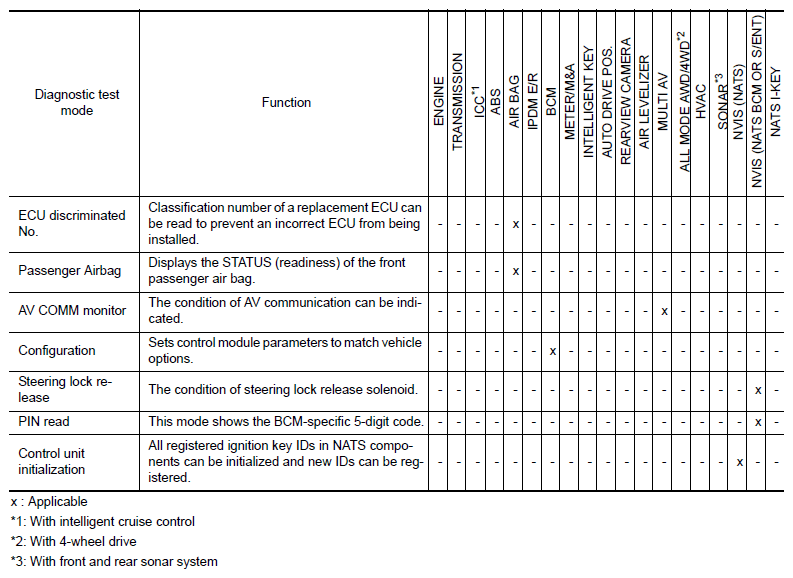

Fig 2: Diagnostic Test Chart (2 Of 2)
G06319320Courtesy of NISSAN MOTOR CO., U.S.A.
