Without CONSULT-III

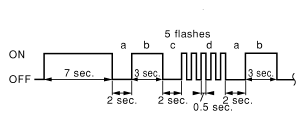

FLASH PATTERN CHART

< Occupant classification system >
Flash pattern Repair order
a through d are repeated.
d: Five flashes indicate malfunctioning occupant classification system control unit.
G06319550Courtesy of NISSAN MOTOR CO., U.S.A.
  1. Visually check the wiring harness connection.
  2. Replace the harness if it has visible damage.
  3. Replace the RH front seat cushion occupant classification system control unit assembly.
  4. Replace the air bag diagnosis sensor unit.
