Exploded View

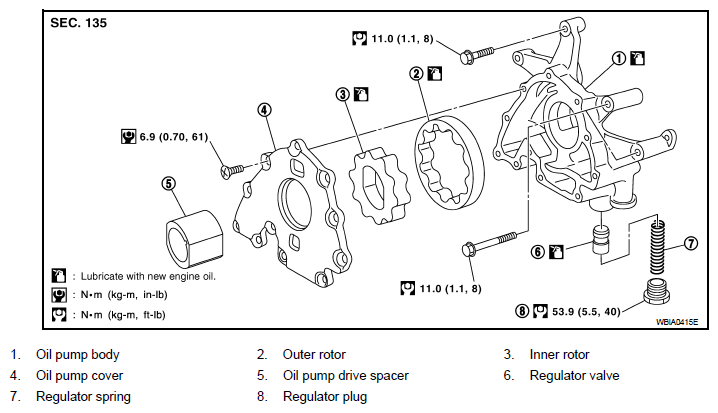

Fig 1: Exploded View Of Oil Pump With Torque Specifications
G06315376Courtesy of NISSAN MOTOR CO., U.S.A.
