Key Switch
Check continuity between terminals of the key switch and key lock solenoid.
TERMINAL CONTINUITY REFERENCE
Condition
Terminal No.
Continuity
Key inserted
1 - 2
Yes
Key withdrawn
No

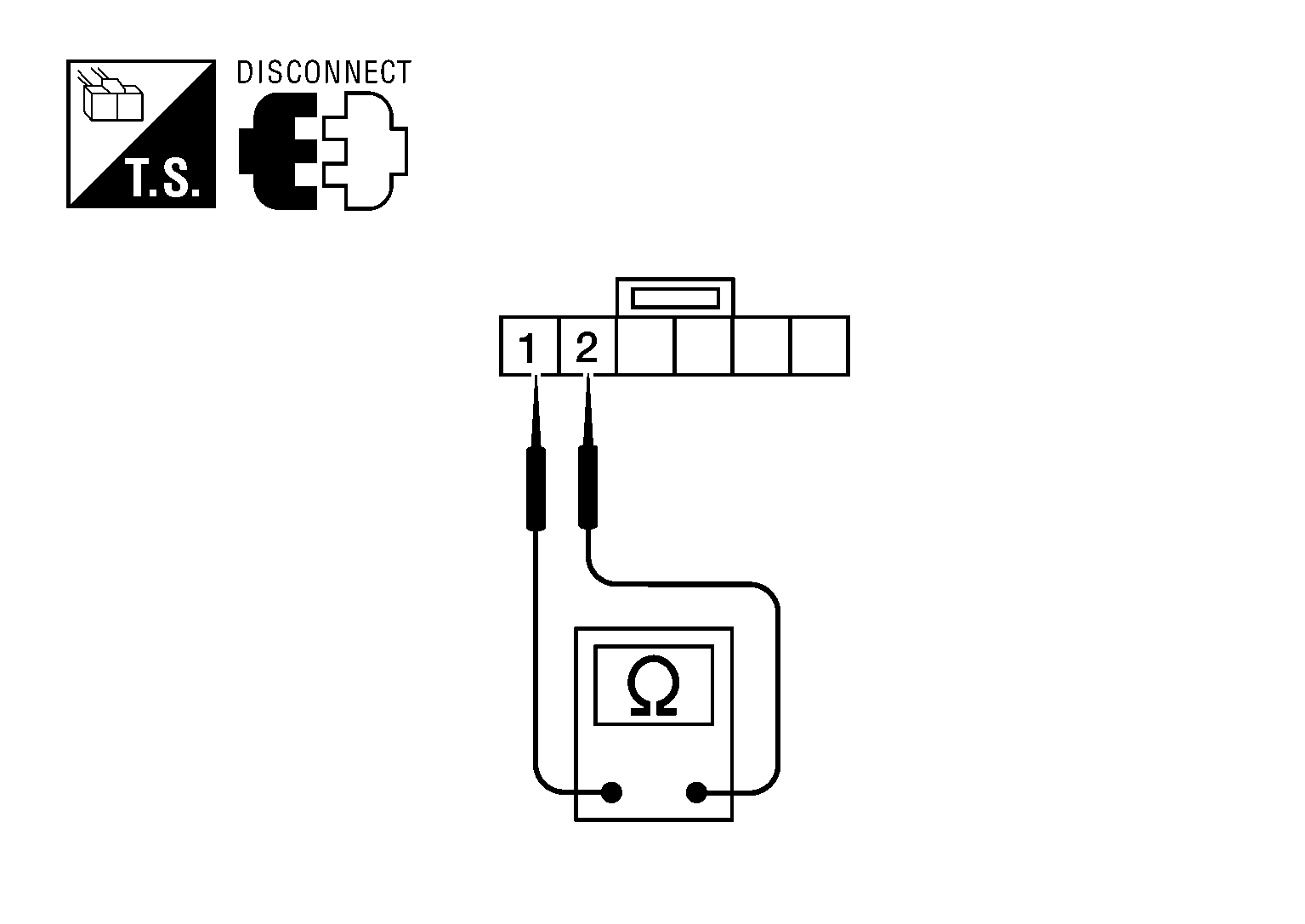

Fig 1: Checking Continuity Between Terminals Of Key Switch And Key Lock Solenoid
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
