Disassembly And Assembly: Overhaul: Component: Notes

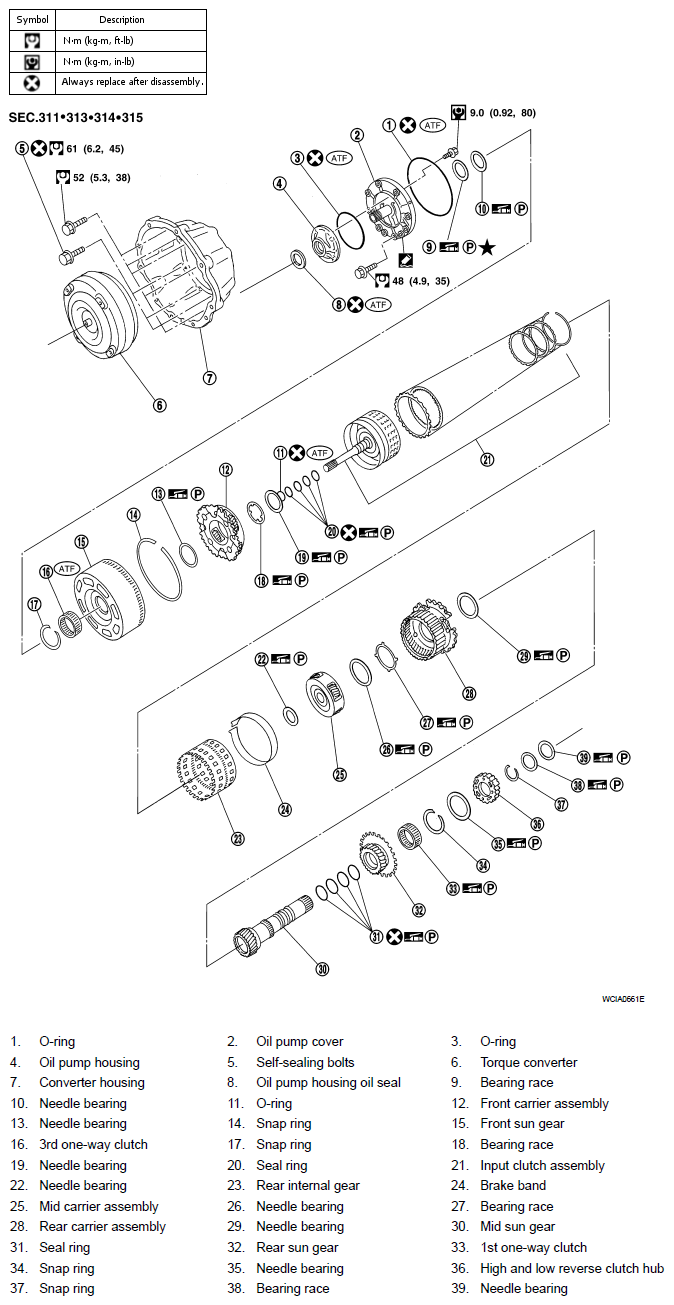

Fig 1: Exploded View Of Transmission Assembly With Torque Specifications (1 Of 2)

Courtesy of NISSAN MOTOR CO., U.S.A.

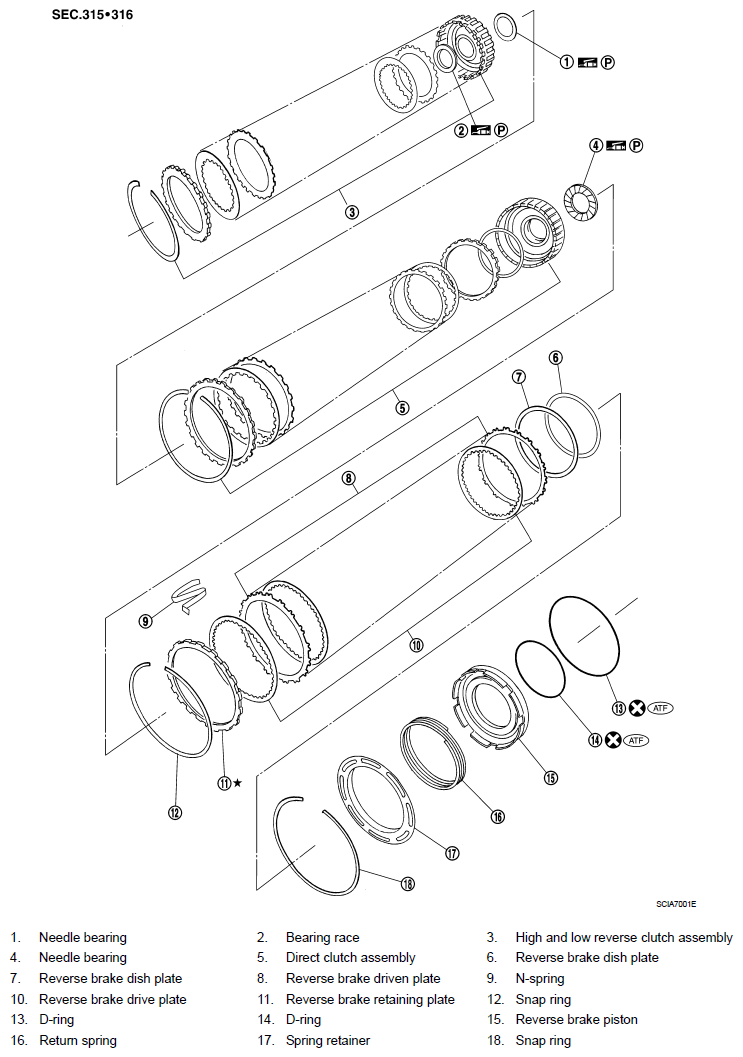

Fig 2: Exploded View Of Transmission Assembly (2 Of 2)

Courtesy of NISSAN MOTOR CO., U.S.A.
