Direct Clutch: Components

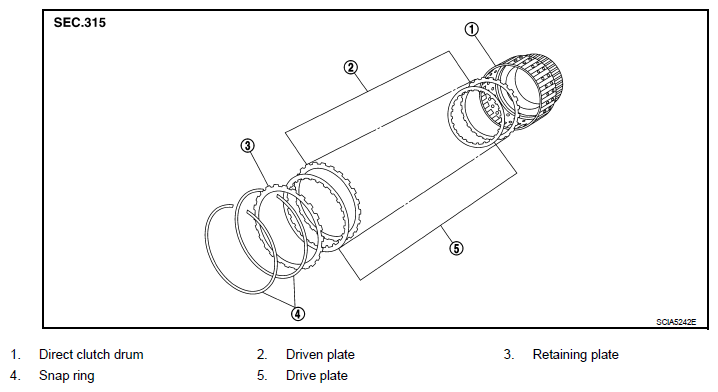

Fig 1: Identifying Direct Clutch Components

G06316407

Courtesy of NISSAN MOTOR CO., U.S.A.
