Exploded View

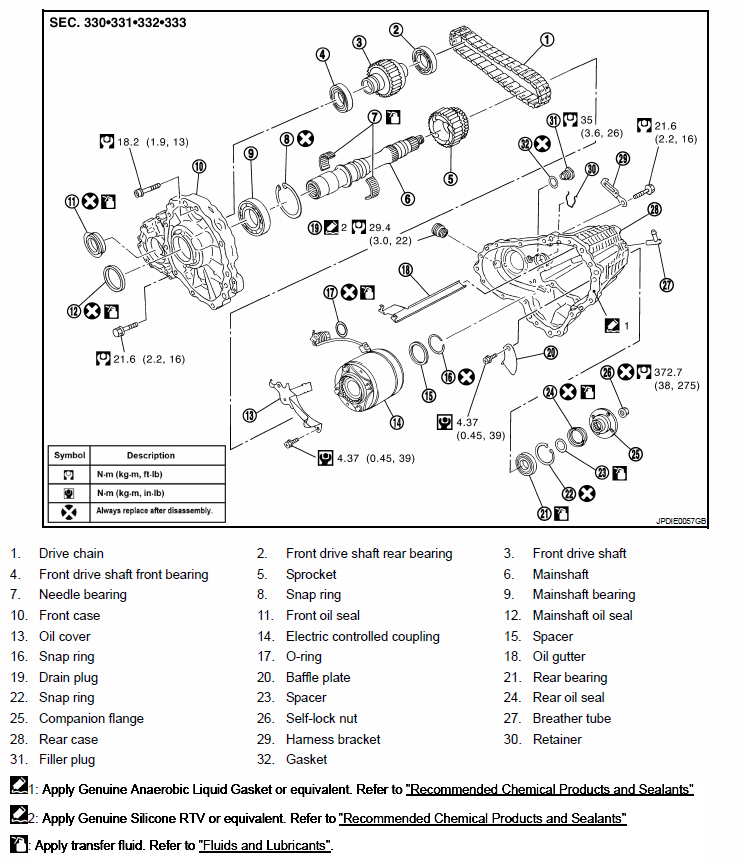

Fig 1: Exploded View Of Transfer (ETX13B) With Torque Specifications
G06301745Courtesy of NISSAN MOTOR CO., U.S.A.

Refer to "COMPONENTS " for symbols not described above.
