Component Parts Location

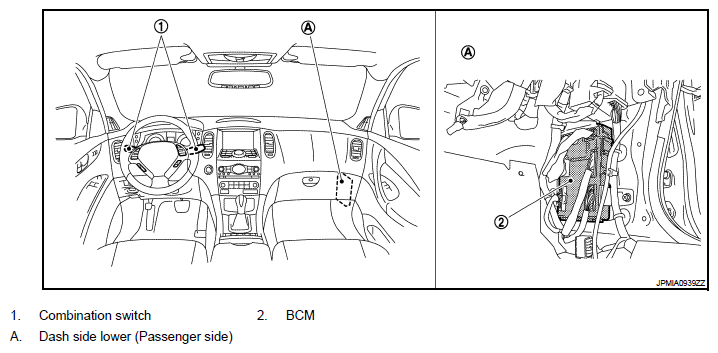

Fig 1: Identifying Combination Switch And BCM Component Parts Location
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
