Wiring Diagram - BOSE AUDIO WITH NAVIGATION AND AROUND VIEW MONITOR-

NOTE: The name MULTIFUNCTION SWITCH indicates the integration of PRESET SWITCH and MULTIFUNCTION SWITCH virtually.

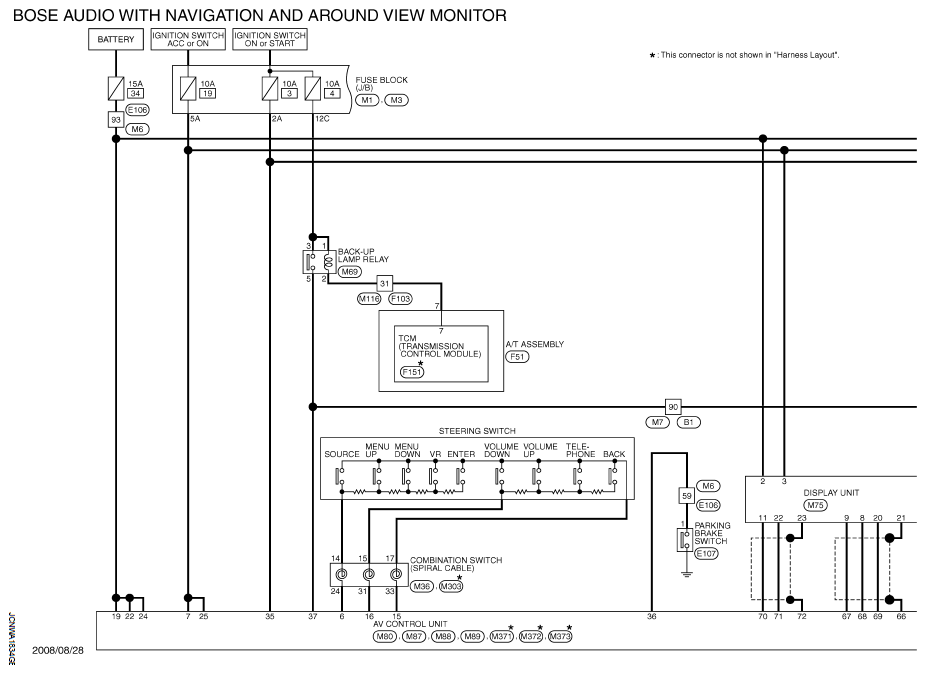

Fig 1: BOSE Audio With Navigation And Around View Monitor - Wiring Diagram (1 Of 6)
G06296678Courtesy of NISSAN MOTOR CO., U.S.A.

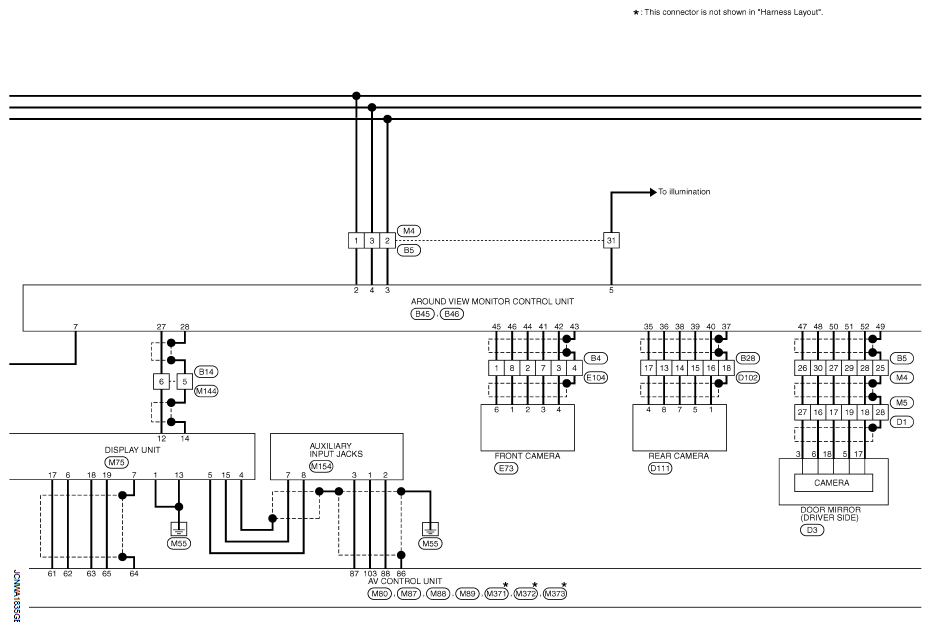

Fig 2: BOSE Audio With Navigation And Around View Monitor - Wiring Diagram (2 Of 6)
G06296679Courtesy of NISSAN MOTOR CO., U.S.A.

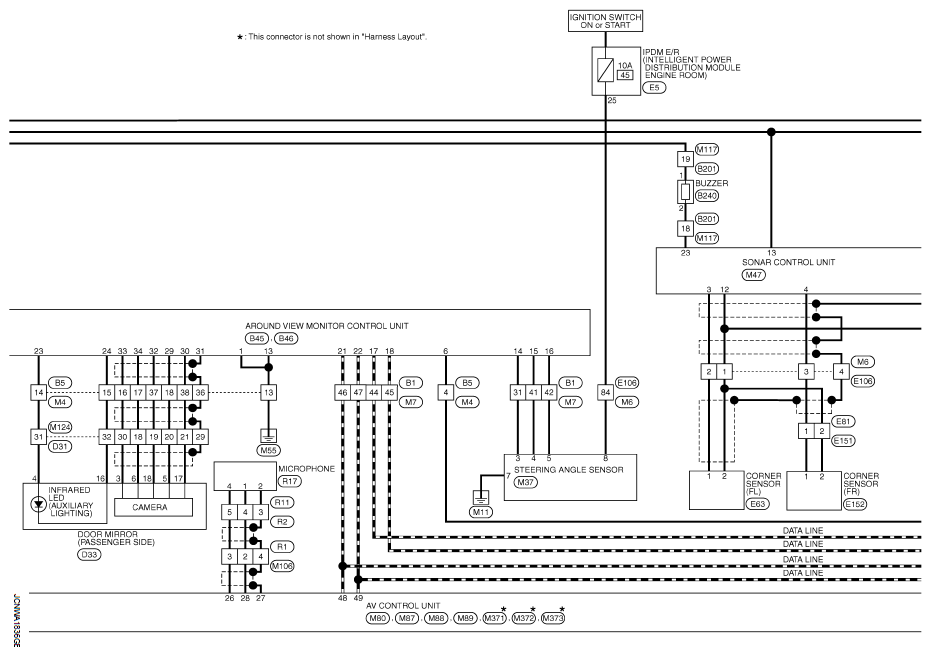

Fig 3: BOSE Audio With Navigation And Around View Monitor - Wiring Diagram (3 Of 6)
G06296680Courtesy of NISSAN MOTOR CO., U.S.A.

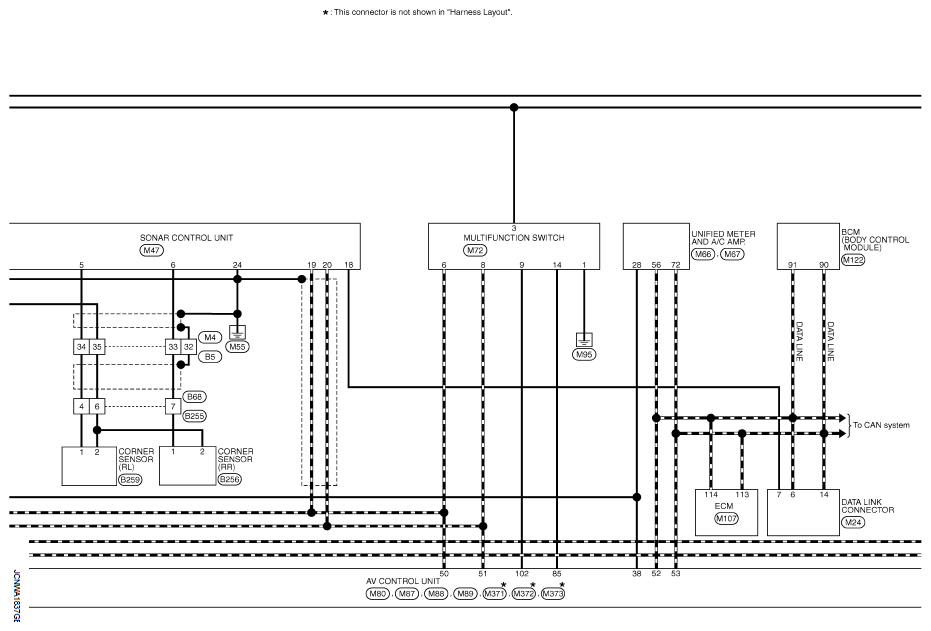

Fig 4: BOSE Audio With Navigation And Around View Monitor - Wiring Diagram (4 Of 6)
G06296681Courtesy of NISSAN MOTOR CO., U.S.A.

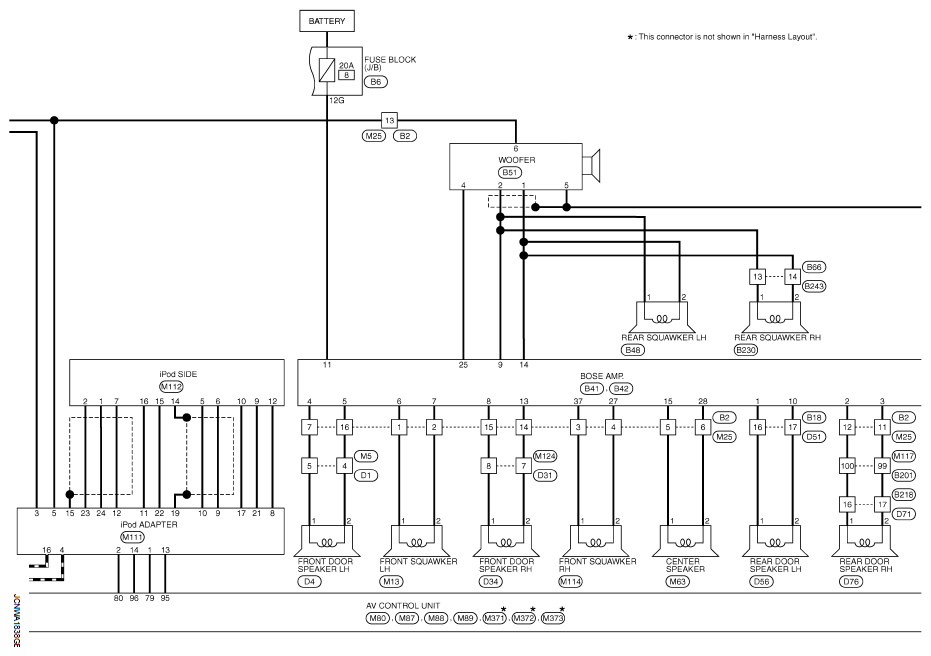

Fig 5: BOSE Audio With Navigation And Around View Monitor - Wiring Diagram (5 Of 6)
G06296682Courtesy of NISSAN MOTOR CO., U.S.A.

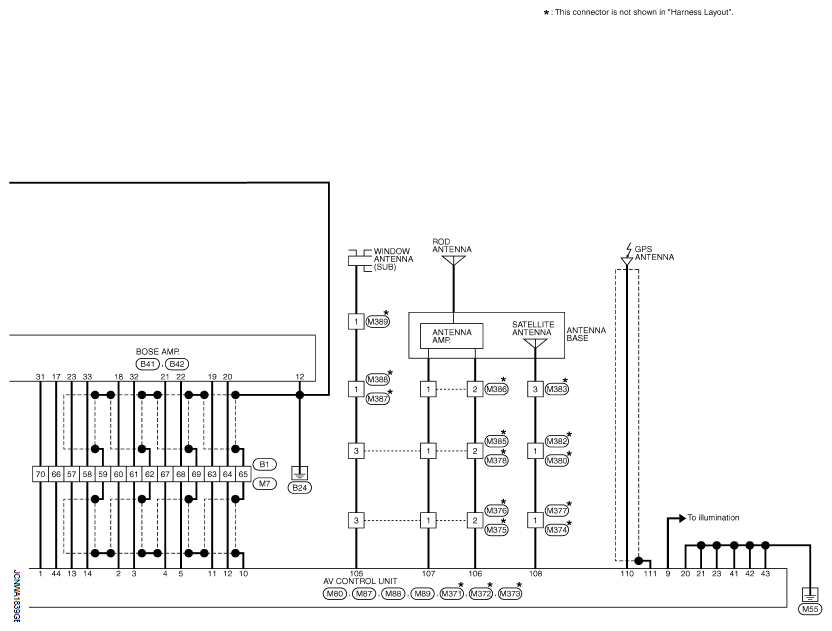

Fig 6: BOSE Audio With Navigation And Around View Monitor - Wiring Diagram (6 Of 6)
G06296683Courtesy of NISSAN MOTOR CO., U.S.A.

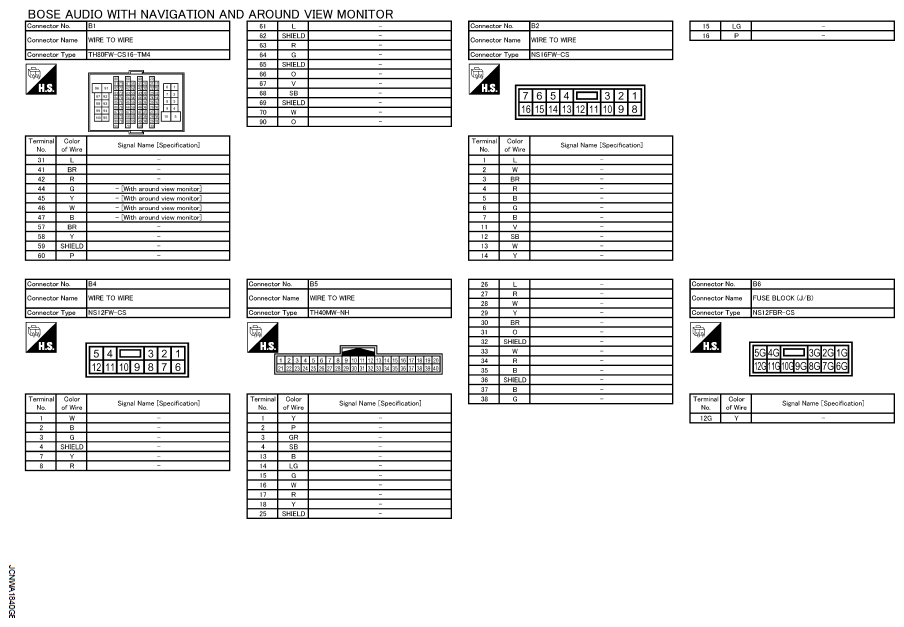

Fig 7: Identifying BOSE Audio With Navigation And Around View Monitor Connectors (1 Of 15)
G06296684Courtesy of NISSAN MOTOR CO., U.S.A.

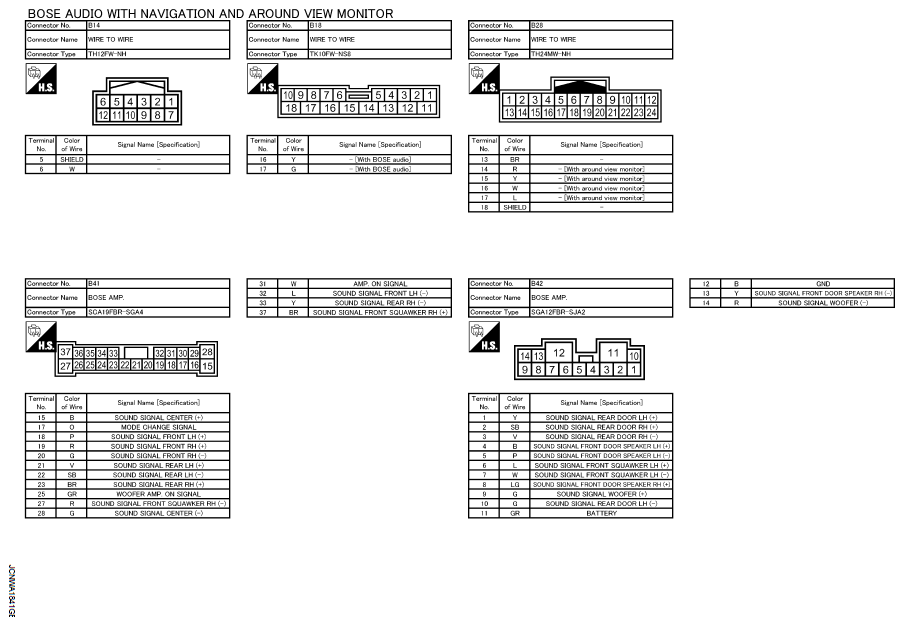

Fig 8: Identifying BOSE Audio With Navigation And Around View Monitor Connectors (2 Of 15)
G06296685Courtesy of NISSAN MOTOR CO., U.S.A.

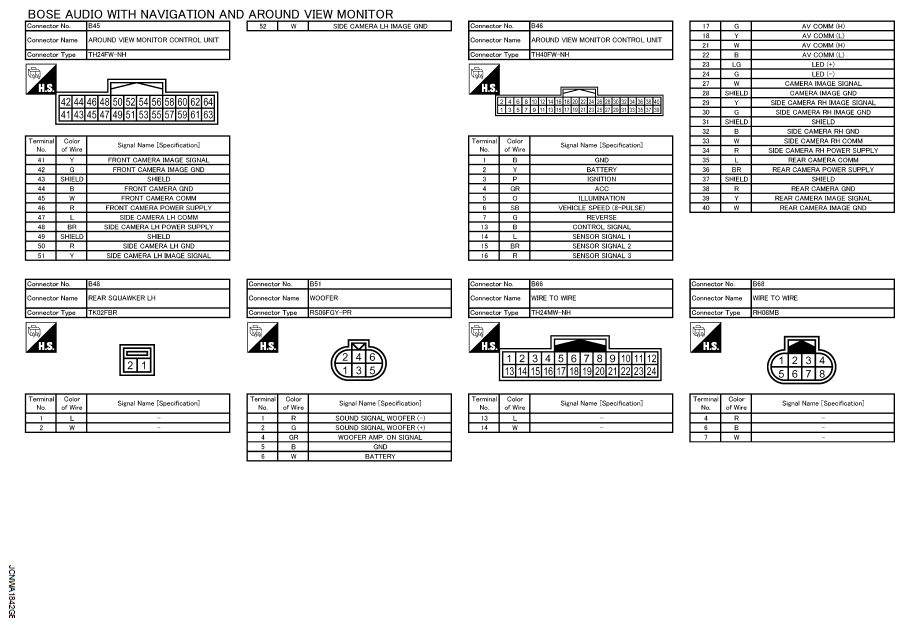

Fig 9: Identifying BOSE Audio With Navigation And Around View Monitor Connectors (3 Of 15)
G06296686Courtesy of NISSAN MOTOR CO., U.S.A.

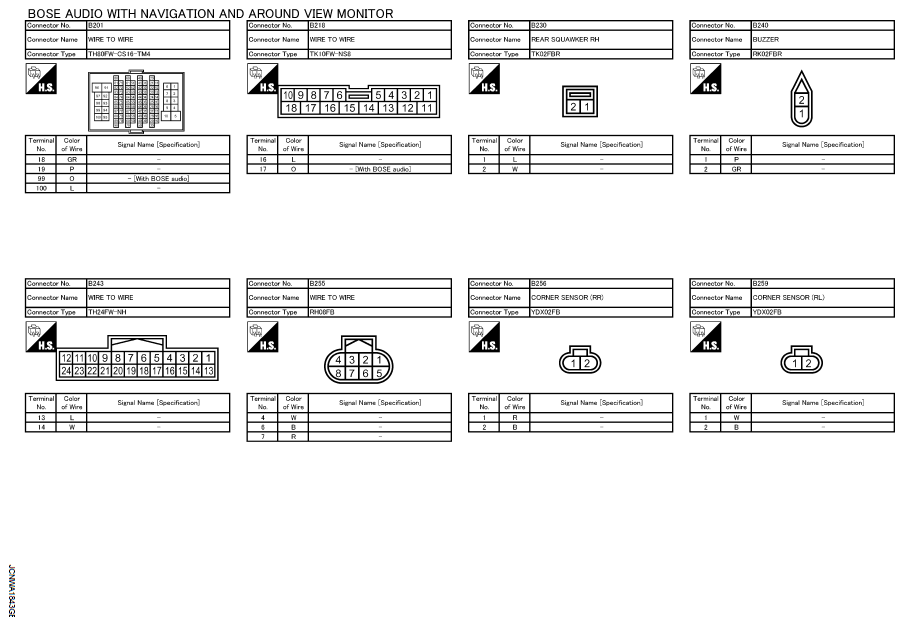

Fig 10: Identifying BOSE Audio With Navigation And Around View Monitor Connectors (4 Of 15)
G06296687Courtesy of NISSAN MOTOR CO., U.S.A.

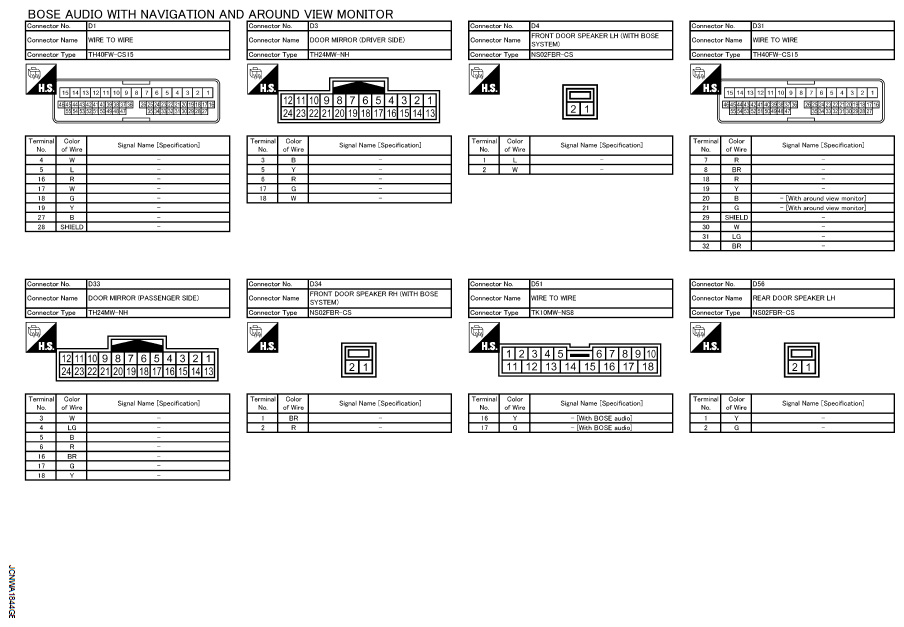

Fig 11: Identifying BOSE Audio With Navigation And Around View Monitor Connectors (5 Of 15)
G06296688Courtesy of NISSAN MOTOR CO., U.S.A.

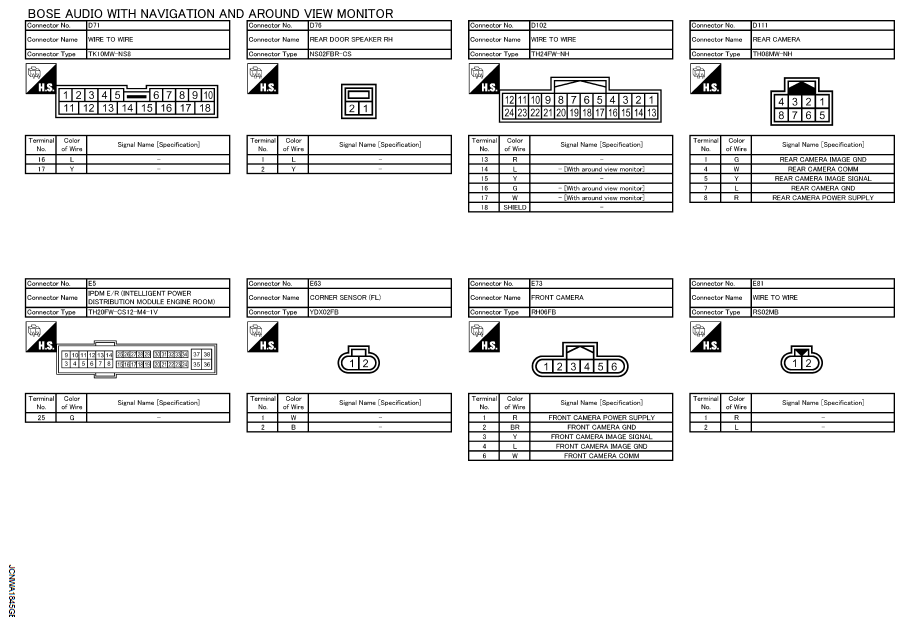

Fig 12: Identifying BOSE Audio With Navigation And Around View Monitor Connectors (6 Of 15)
G06296689Courtesy of NISSAN MOTOR CO., U.S.A.

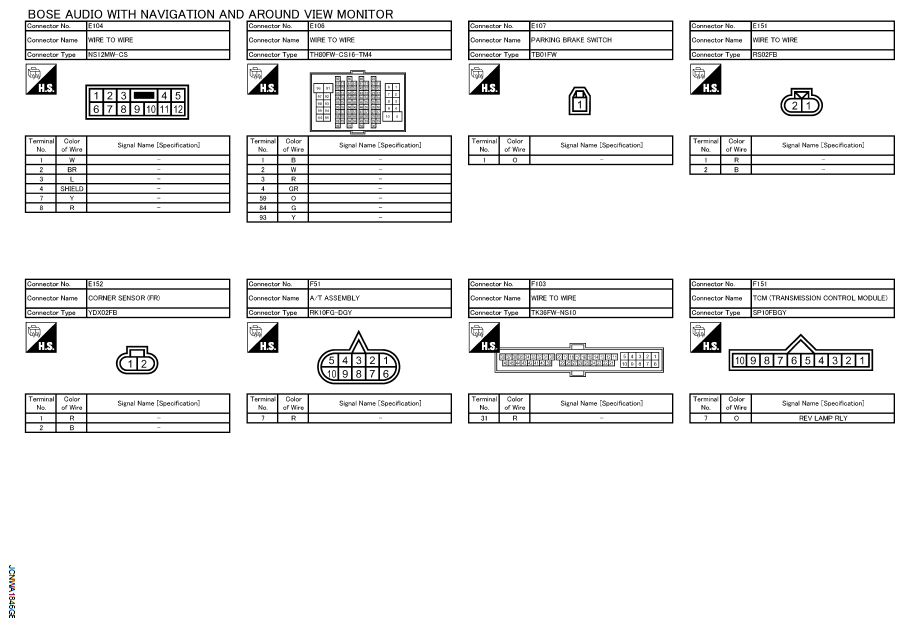

Fig 13: Identifying BOSE Audio With Navigation And Around View Monitor Connectors (7 Of 15)
G06296690Courtesy of NISSAN MOTOR CO., U.S.A.

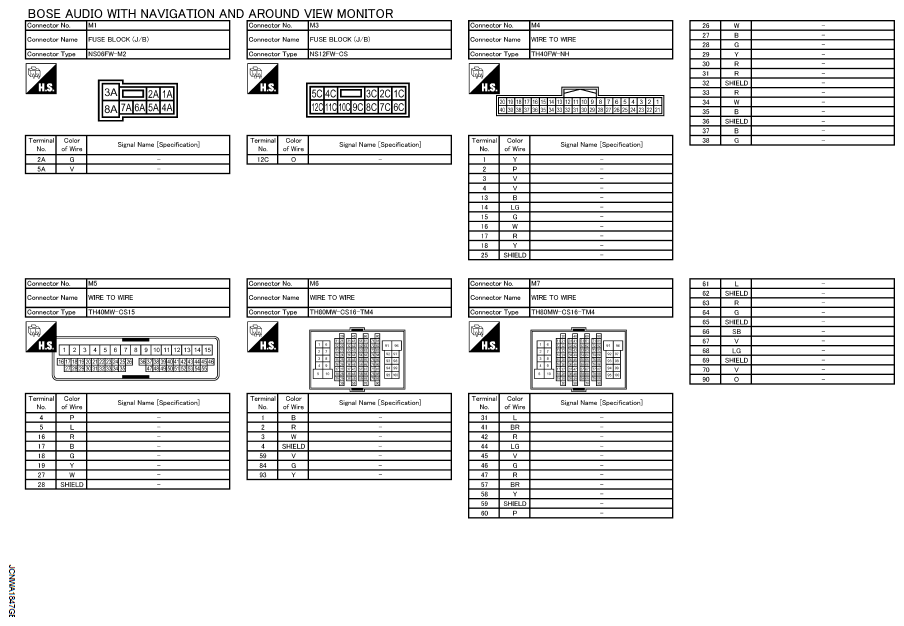

Fig 14: Identifying BOSE Audio With Navigation And Around View Monitor Connectors (8 Of 15)
G06296691Courtesy of NISSAN MOTOR CO., U.S.A.

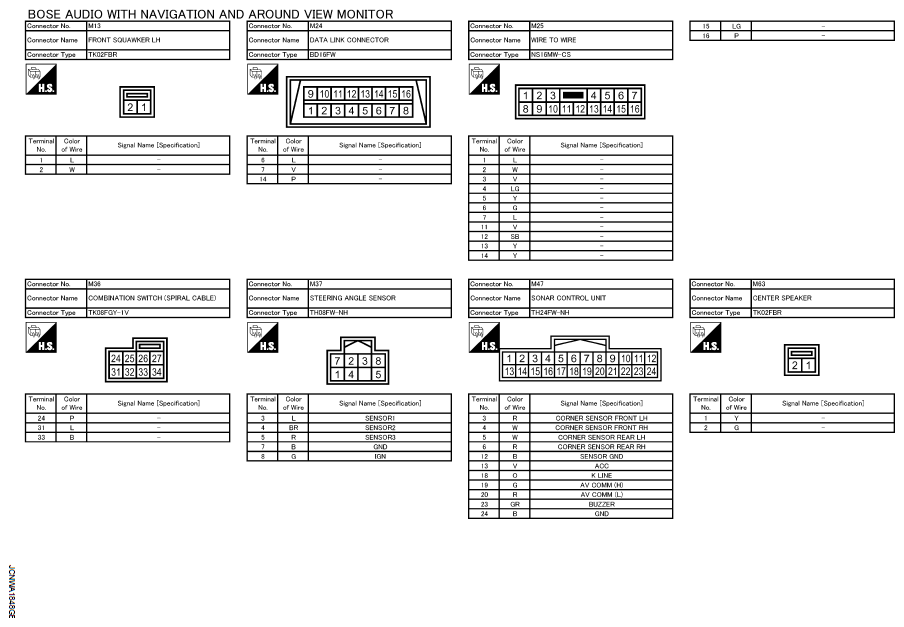

Fig 15: Identifying BOSE Audio With Navigation And Around View Monitor Connectors (9 Of 15)
G06296692Courtesy of NISSAN MOTOR CO., U.S.A.

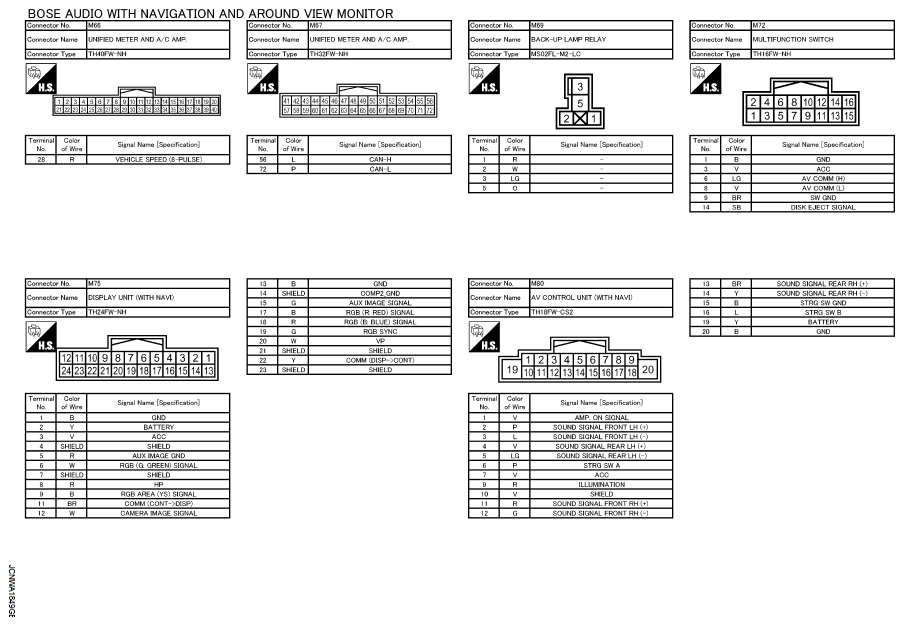

Fig 16: Identifying BOSE Audio With Navigation And Around View Monitor Connectors (10 Of 15)
G06296693Courtesy of NISSAN MOTOR CO., U.S.A.

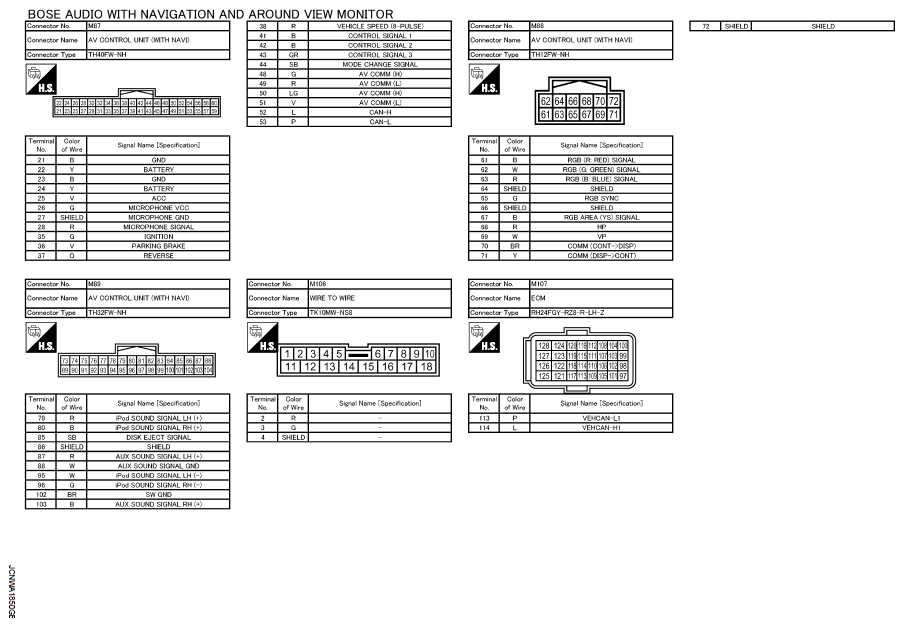

Fig 17: Identifying BOSE Audio With Navigation And Around View Monitor Connectors (11 Of 15)
G06296694Courtesy of NISSAN MOTOR CO., U.S.A.

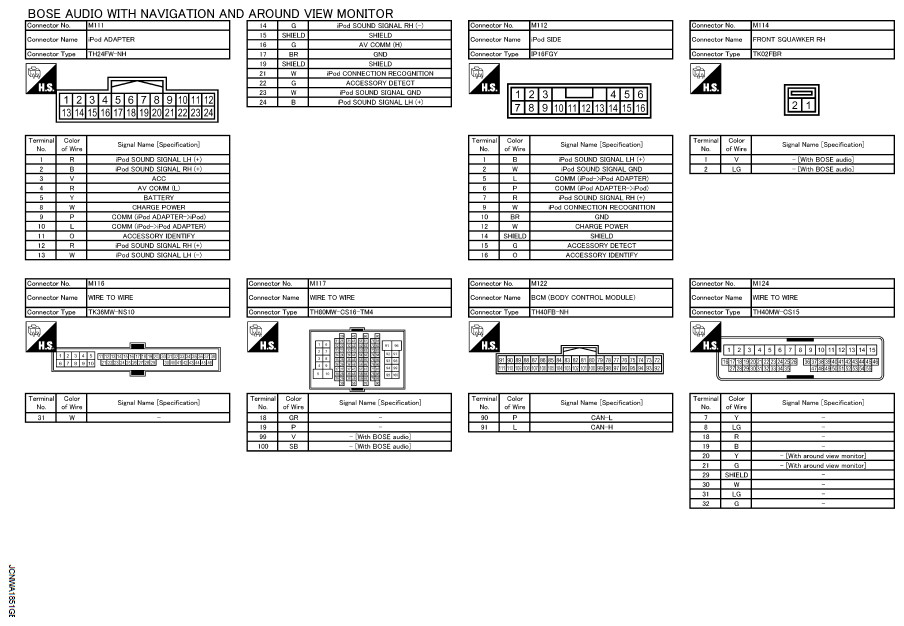

Fig 18: Identifying BOSE Audio With Navigation And Around View Monitor Connectors (12 Of 15)
G06296695Courtesy of NISSAN MOTOR CO., U.S.A.

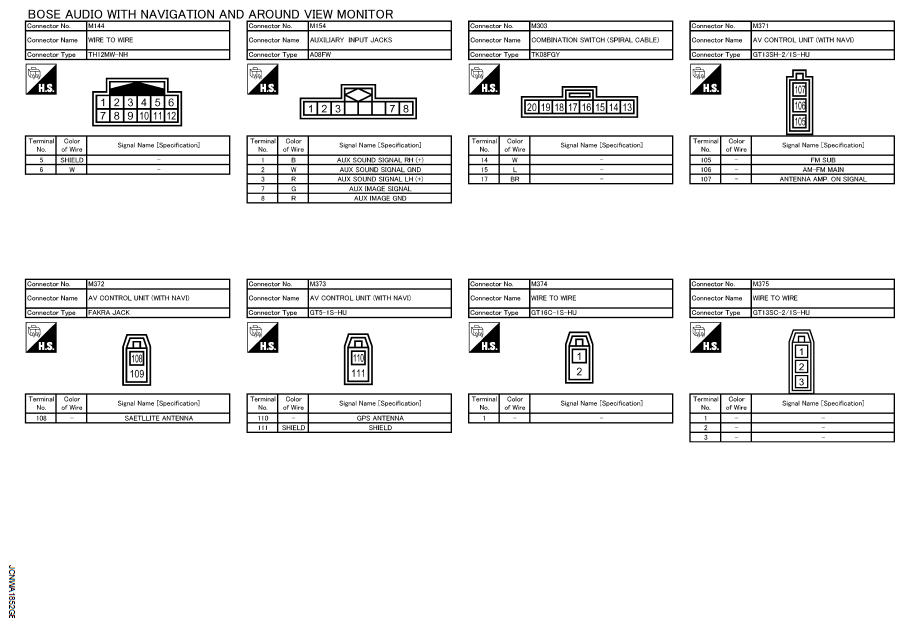

Fig 19: Identifying BOSE Audio With Navigation And Around View Monitor Connectors (13 Of 15)
G06296696Courtesy of NISSAN MOTOR CO., U.S.A.

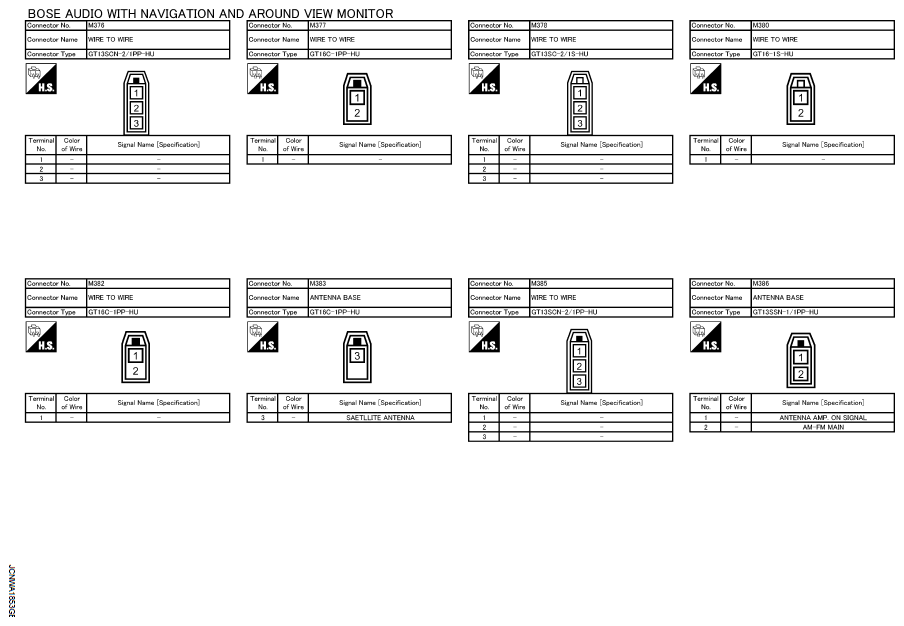

Fig 20: Identifying BOSE Audio With Navigation And Around View Monitor Connectors (14 Of 15)
G06296697Courtesy of NISSAN MOTOR CO., U.S.A.

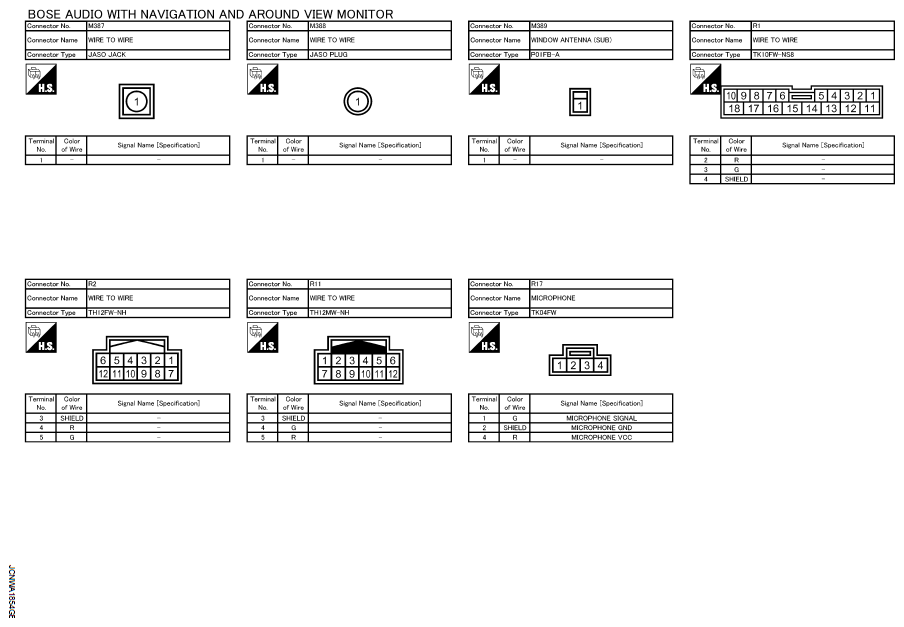

Fig 21: Identifying BOSE Audio With Navigation And Around View Monitor Connectors (15 Of 15)
G06296698Courtesy of NISSAN MOTOR CO., U.S.A.
