Wiring Diagram - BASE AUDIO AND REAR VIEW MONITOR -

NOTE: The name MULTIFUNCTION SWITCH indicates the integration of PRESET SWITCH and MULTIFUNCTION SWITCH virtually.

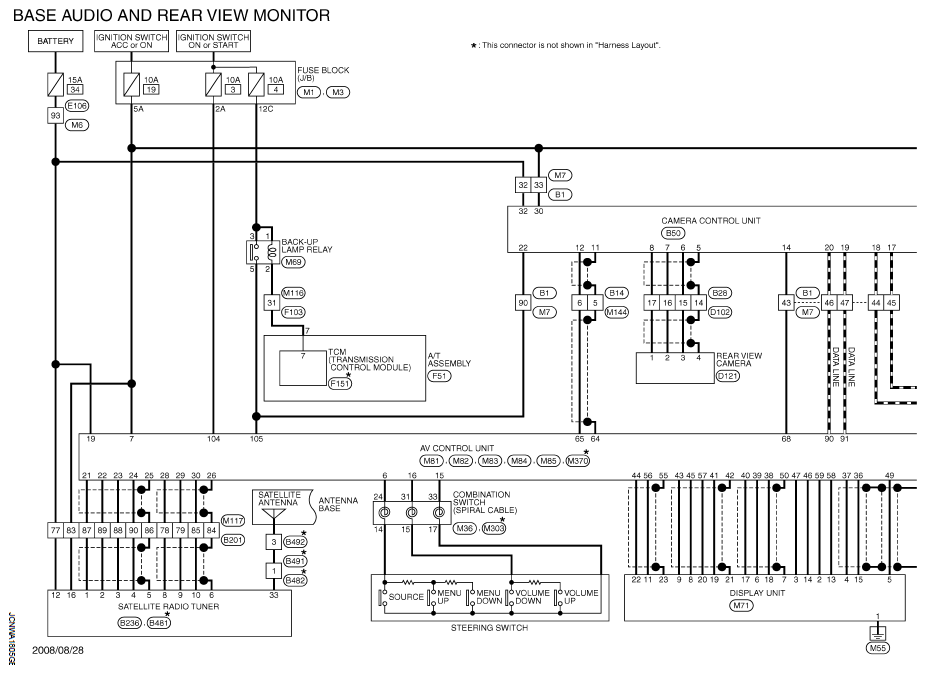

Fig 1: Base Audio And Rear View Monitor - Wiring Diagram (1 Of 3)
G06296417Courtesy of NISSAN MOTOR CO., U.S.A.

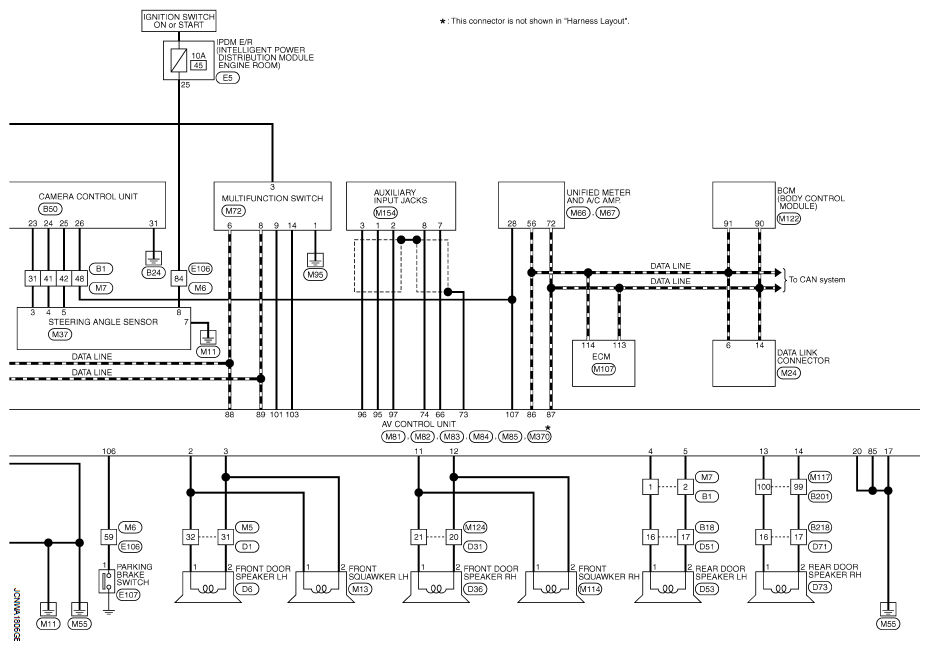

Fig 2: Base Audio And Rear View Monitor - Wiring Diagram (2 Of 3)
G06296418Courtesy of NISSAN MOTOR CO., U.S.A.

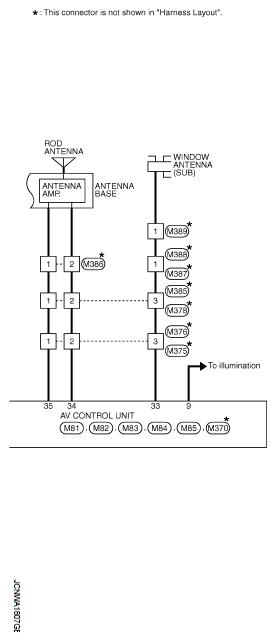

Fig 3: Base Audio And Rear View Monitor - Wiring Diagram (3 Of 3)
G06296419Courtesy of NISSAN MOTOR CO., U.S.A.

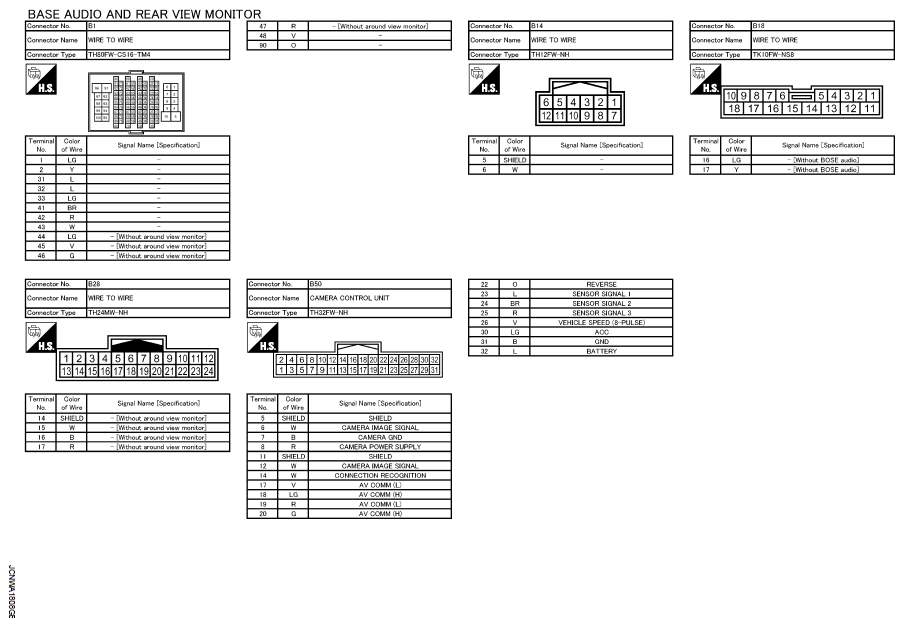

Fig 4: Identifying Base Audio And Rear View Monitor Connectors (1 Of 10)
G06296420Courtesy of NISSAN MOTOR CO., U.S.A.

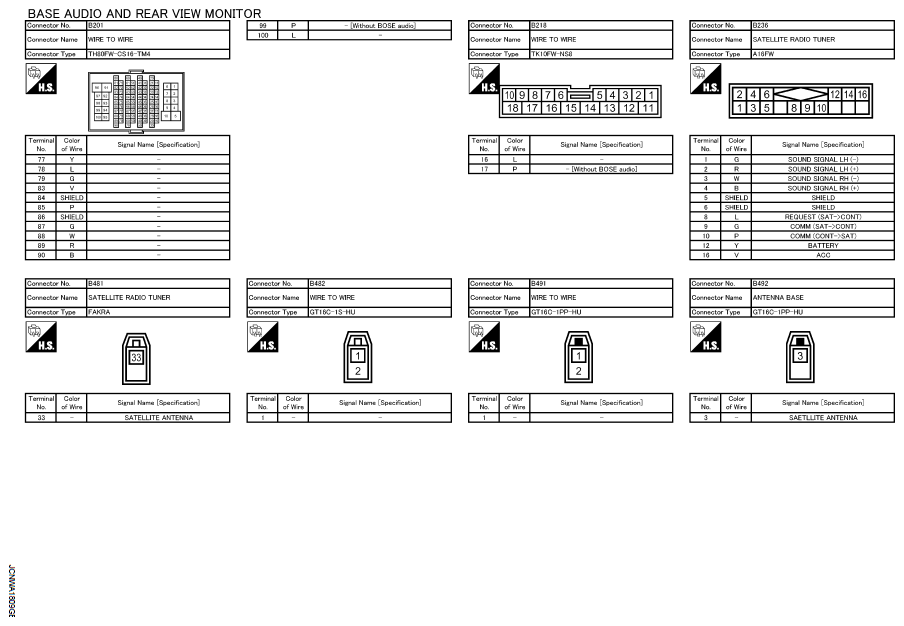

Fig 5: Identifying Base Audio And Rear View Monitor Connectors (2 Of 10)
G06296421Courtesy of NISSAN MOTOR CO., U.S.A.

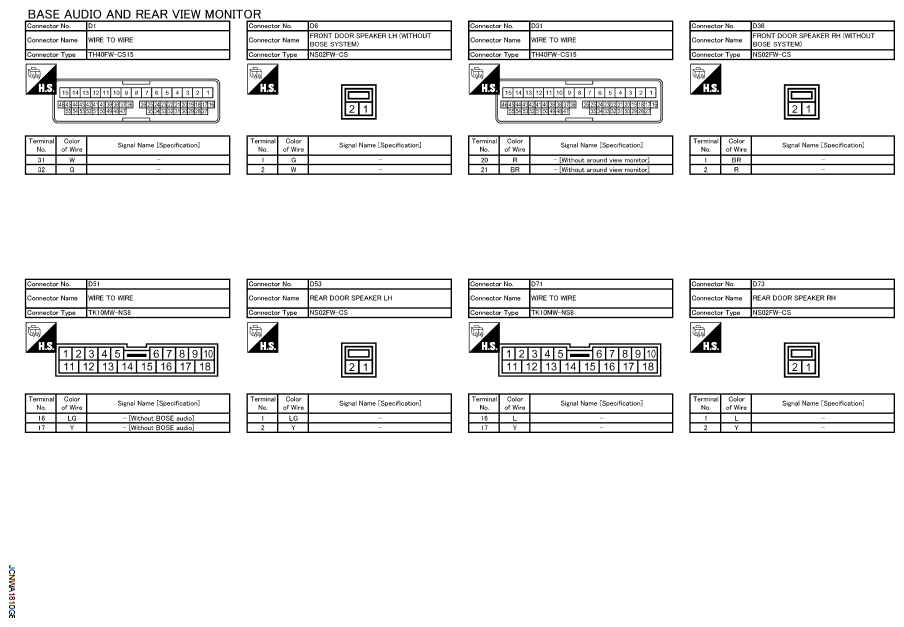

Fig 6: Identifying Base Audio And Rear View Monitor Connectors (3 Of 10)
G06296422Courtesy of NISSAN MOTOR CO., U.S.A.

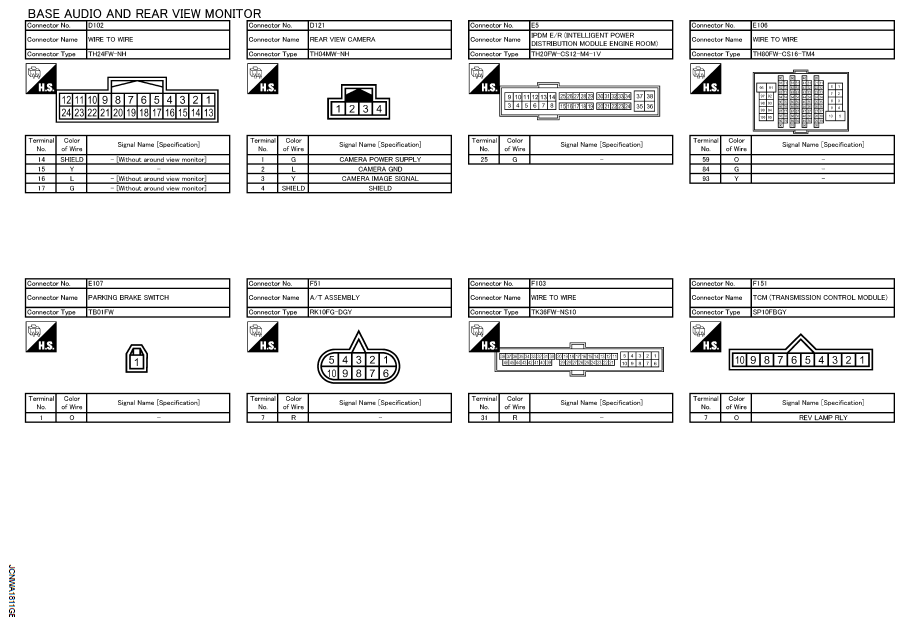

Fig 7: Identifying Base Audio And Rear View Monitor Connectors (4 Of 10)
G06296423Courtesy of NISSAN MOTOR CO., U.S.A.

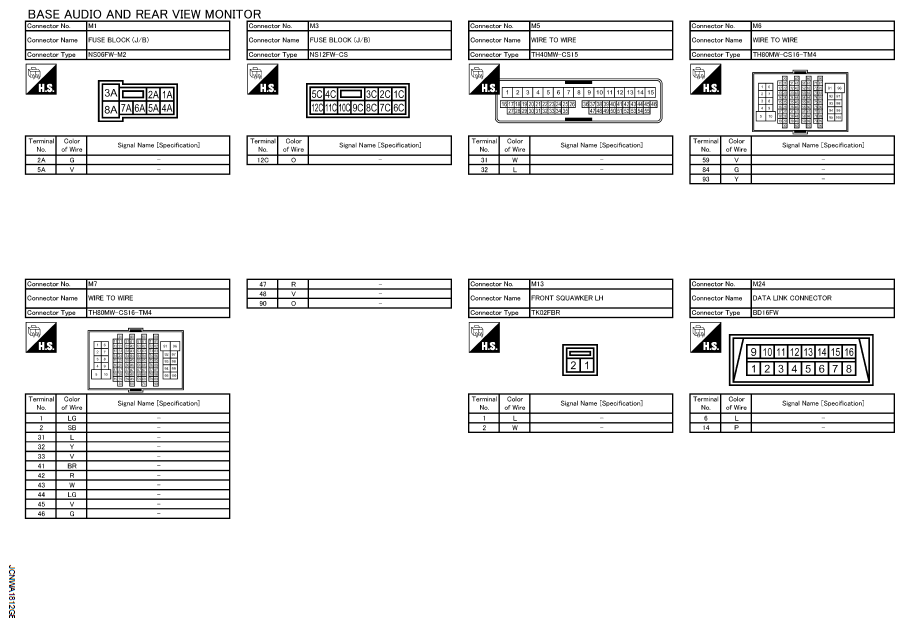

Fig 8: Identifying Base Audio And Rear View Monitor Connectors (5 Of 10)
G06296424Courtesy of NISSAN MOTOR CO., U.S.A.

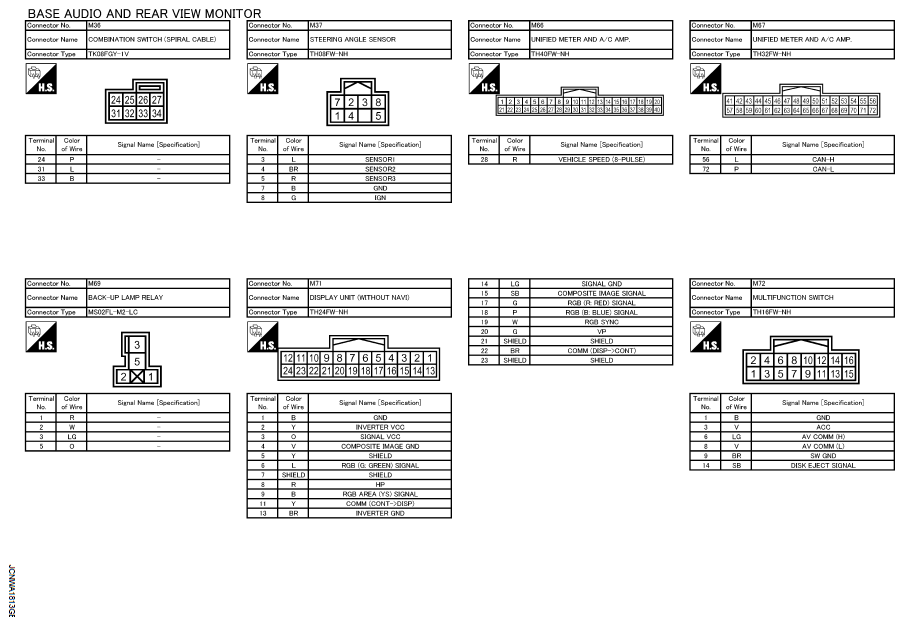

Fig 9: Identifying Base Audio And Rear View Monitor Connectors (6 Of 10)
G06296425Courtesy of NISSAN MOTOR CO., U.S.A.

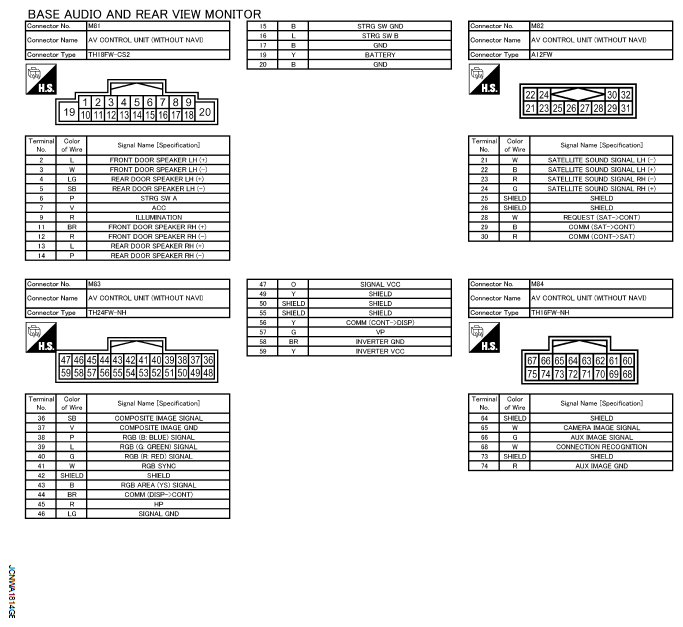

Fig 10: Identifying Base Audio And Rear View Monitor Connectors (7 Of 10)
G06296426Courtesy of NISSAN MOTOR CO., U.S.A.

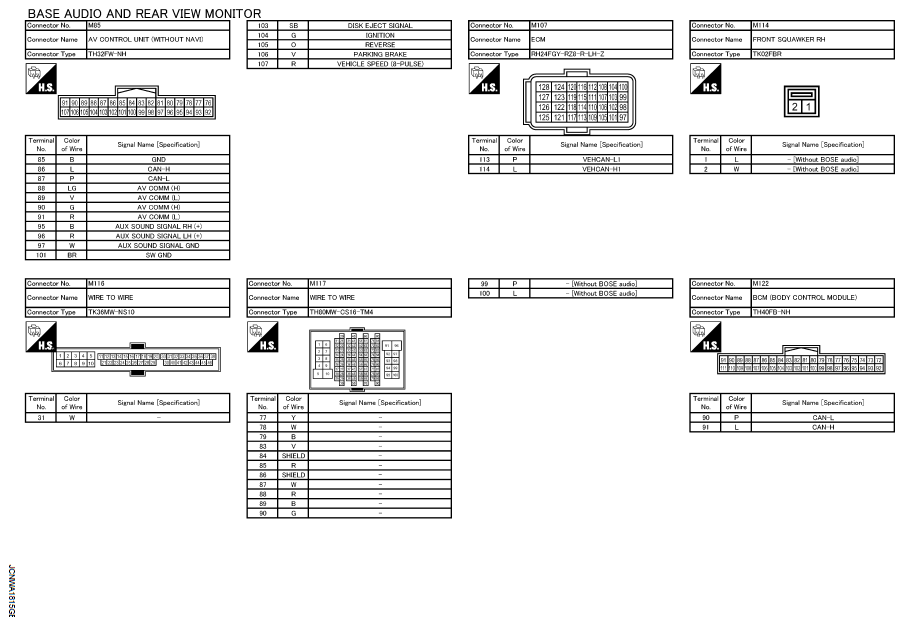

Fig 11: Identifying Base Audio And Rear View Monitor Connectors (8 Of 10)
G06296427Courtesy of NISSAN MOTOR CO., U.S.A.

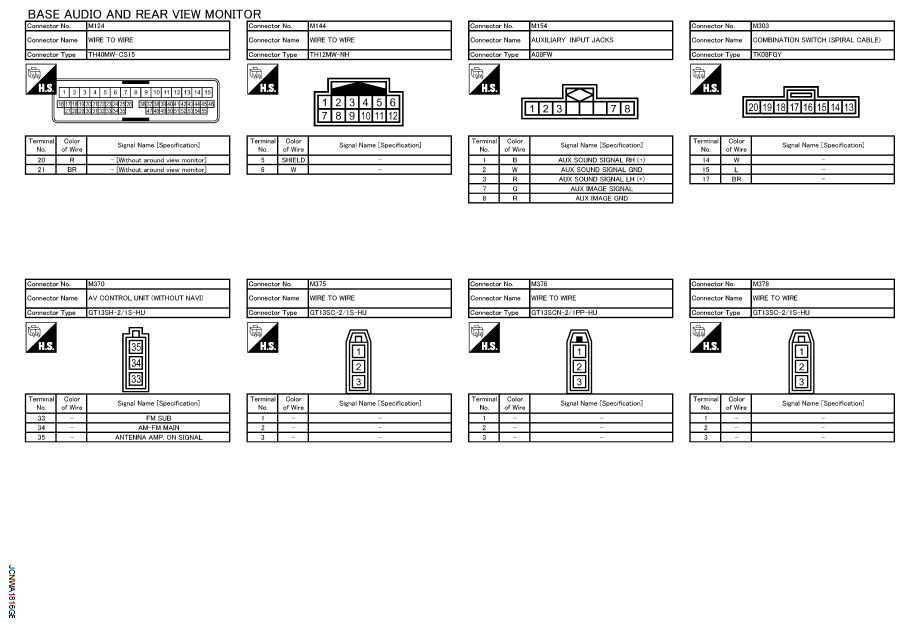

Fig 12: Identifying Base Audio And Rear View Monitor Connectors (9 Of 10)
G06296428Courtesy of NISSAN MOTOR CO., U.S.A.

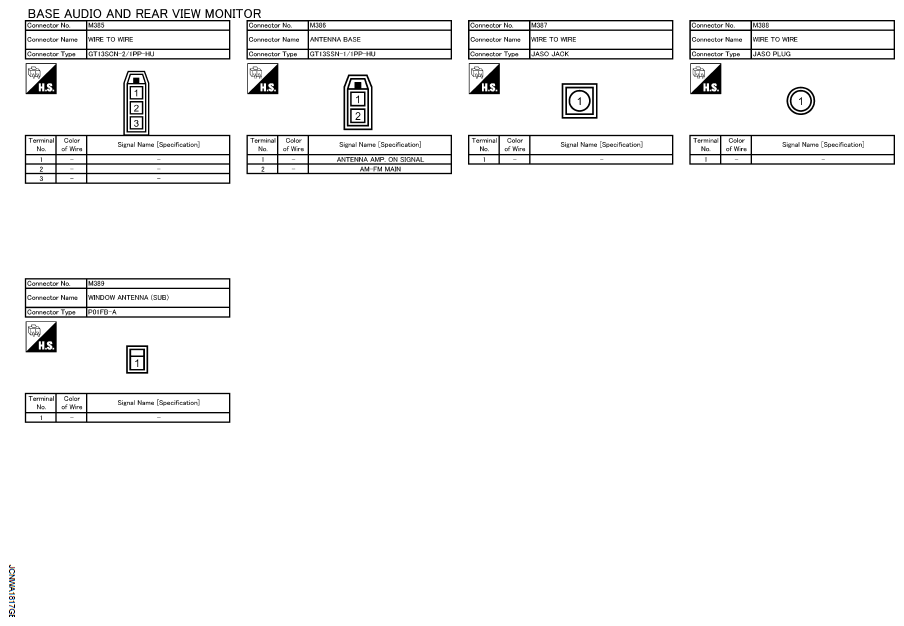

Fig 13: Identifying Base Audio And Rear View Monitor Connectors (10 Of 10)
G06296429Courtesy of NISSAN MOTOR CO., U.S.A.
