REAR WHEEL SENSOR : Exploded View

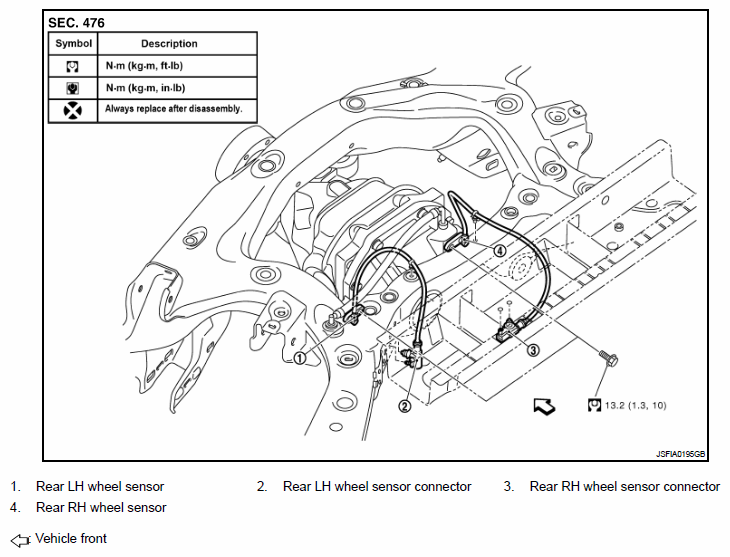

Fig 1: Identifying Rear Wheel Sensor Components
G06297219Courtesy of NISSAN MOTOR CO., U.S.A.

Refer to COMPONENTS in GENERAL INFORMATION for symbol marks in the figure.
