Exploded View

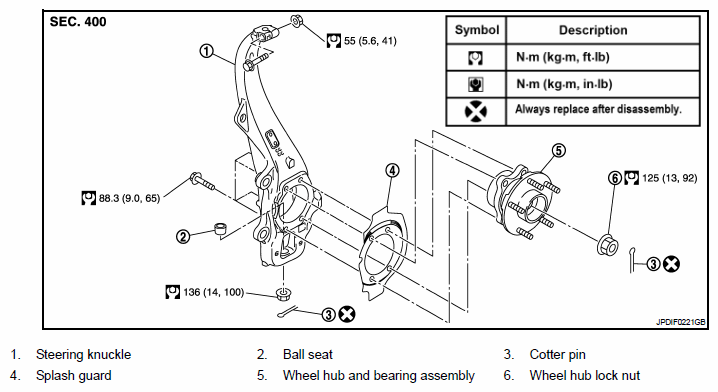

Fig 1: Identifying Front Wheel Hub And Knuckle
G06301281Courtesy of NISSAN MOTOR CO., U.S.A.

Refer to "Components " for symbols in the figure.
