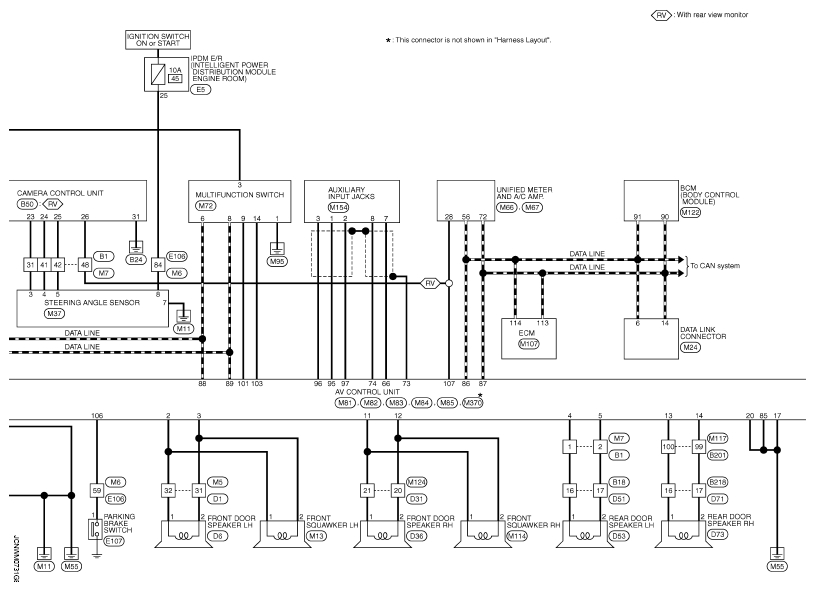

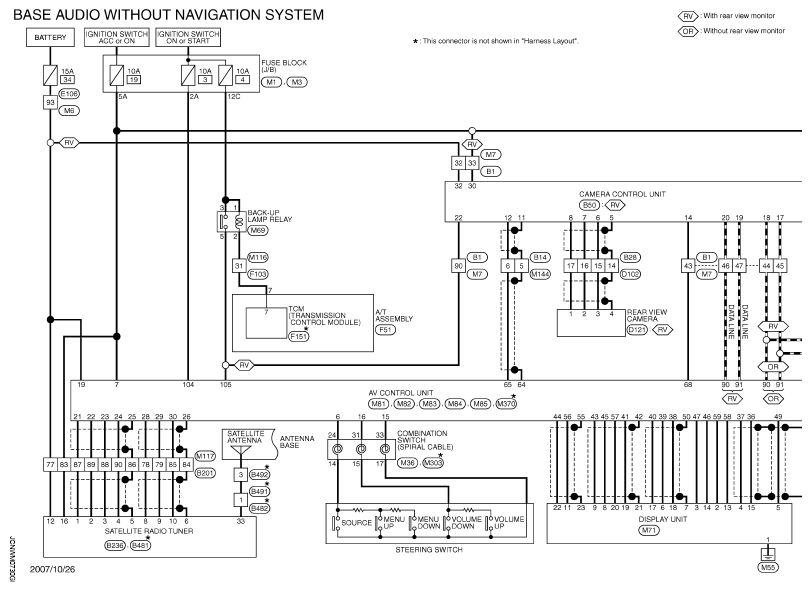

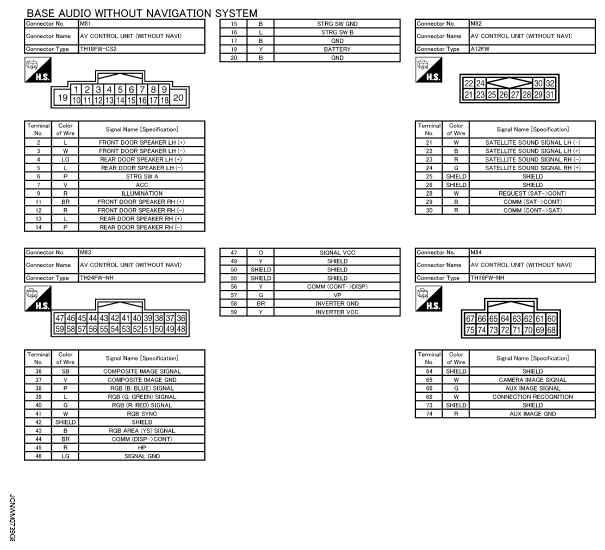

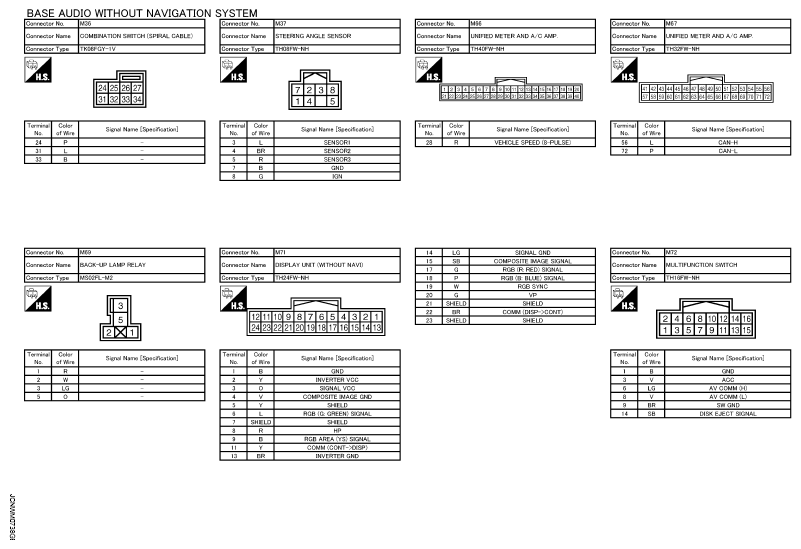

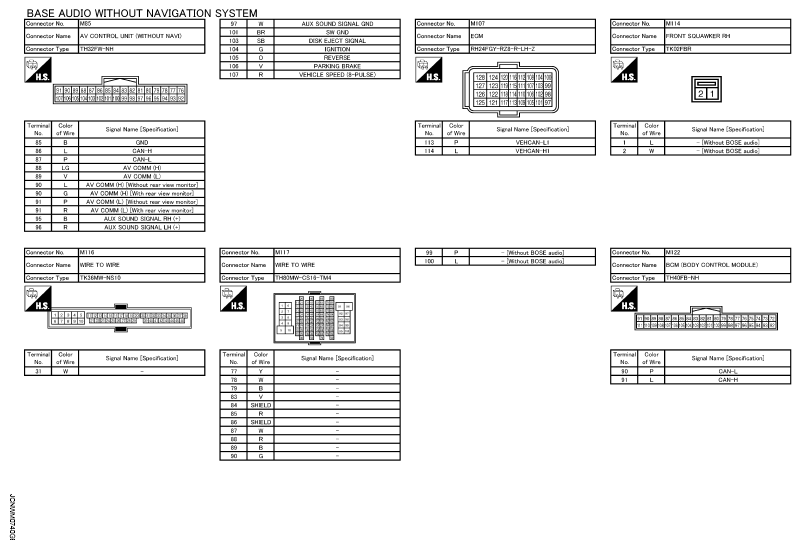

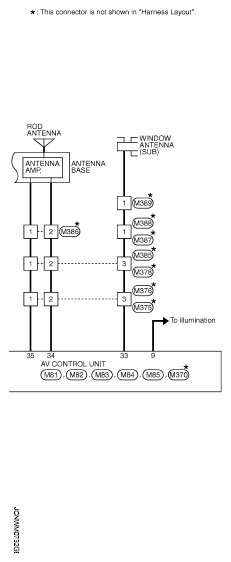

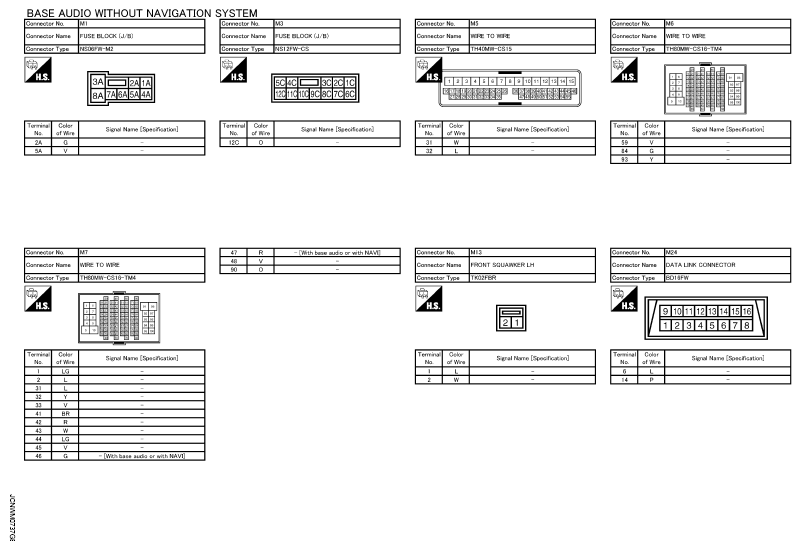

Wiring Diagram - BASE AUDIO WITHOUT NAVIGATION SYSTEM
WARNING: This page is about a different car, the 2008 Infiniti EX35. However, it is still accessible from the selected car via links, so may be relevant.

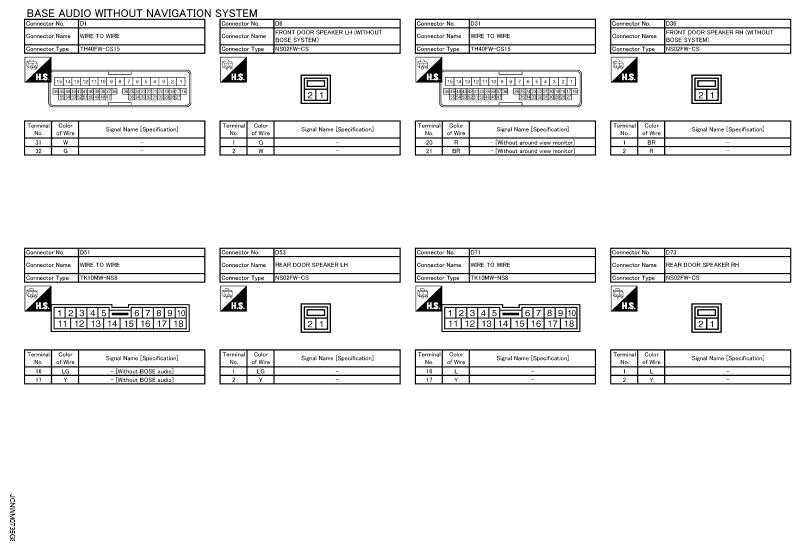

Courtesy of NISSAN MOTOR CO., U.S.A.

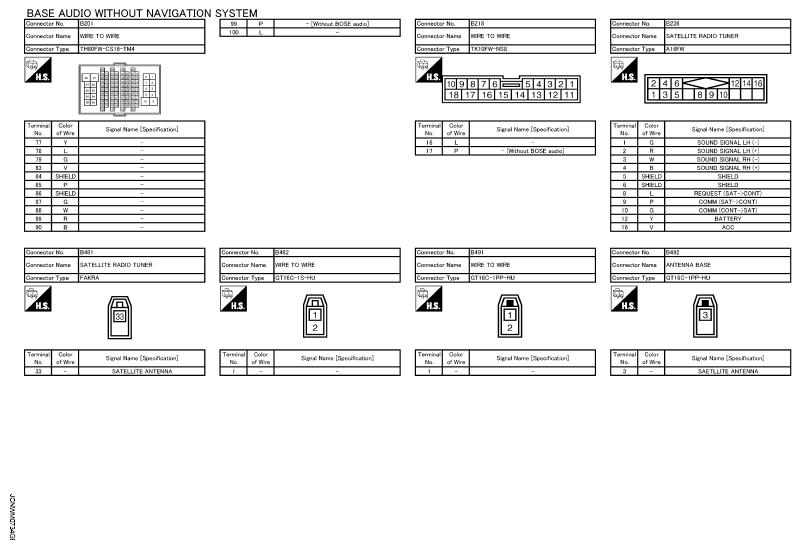

Courtesy of NISSAN MOTOR CO., U.S.A.

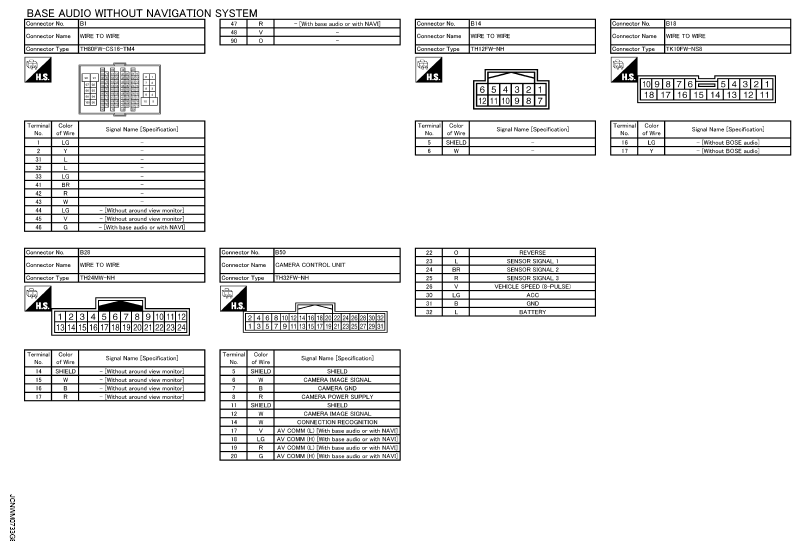

Courtesy of NISSAN MOTOR CO., U.S.A.

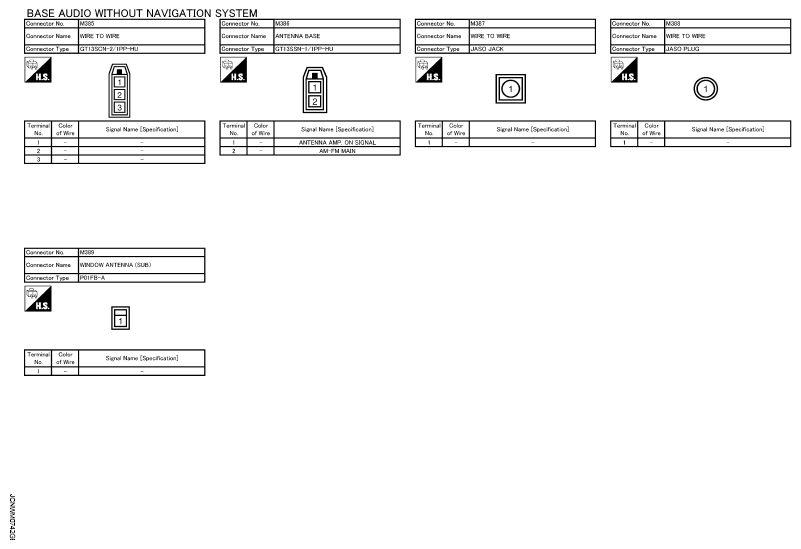

Courtesy of NISSAN MOTOR CO., U.S.A.

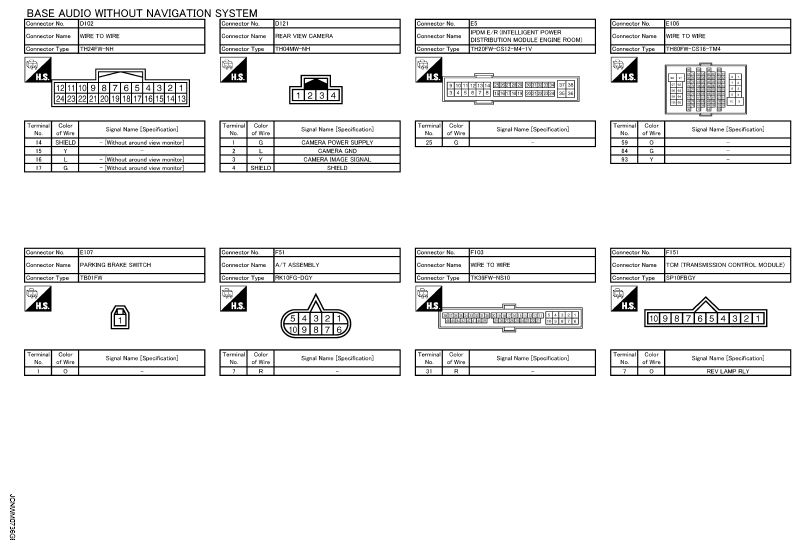

Courtesy of NISSAN MOTOR CO., U.S.A.

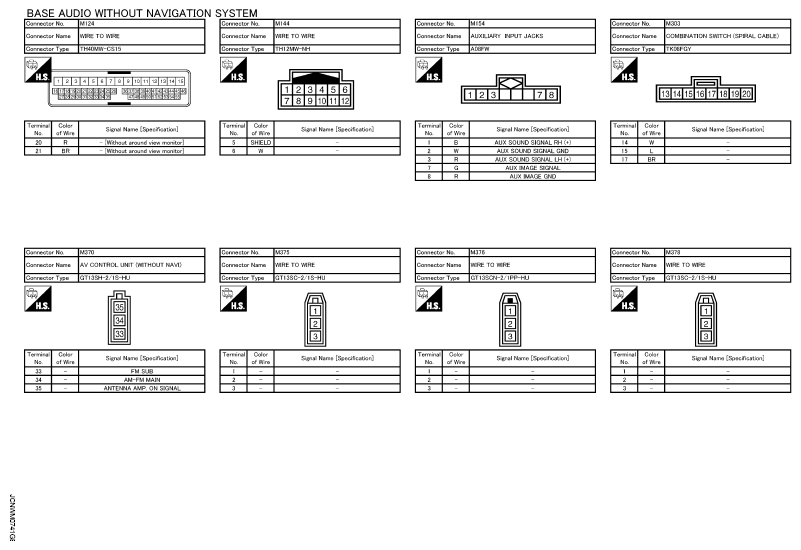

Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
NOTE:
The name MULTIFUNCTION SWITCH indicates the integration of PRESET SWITCH and MULTIFUNCTION SWITCH virtually.
