Removal and Installation: Removal

WARNING: This page is about a different car, the 2008 Infiniti EX35. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove map lamp assembly. Refer to EXPLODED VIEW (normal roof) or EXPLODED VIEW (sunroof) .
  2. Remove microphone (1), stretching pawls of map lamp assembly.

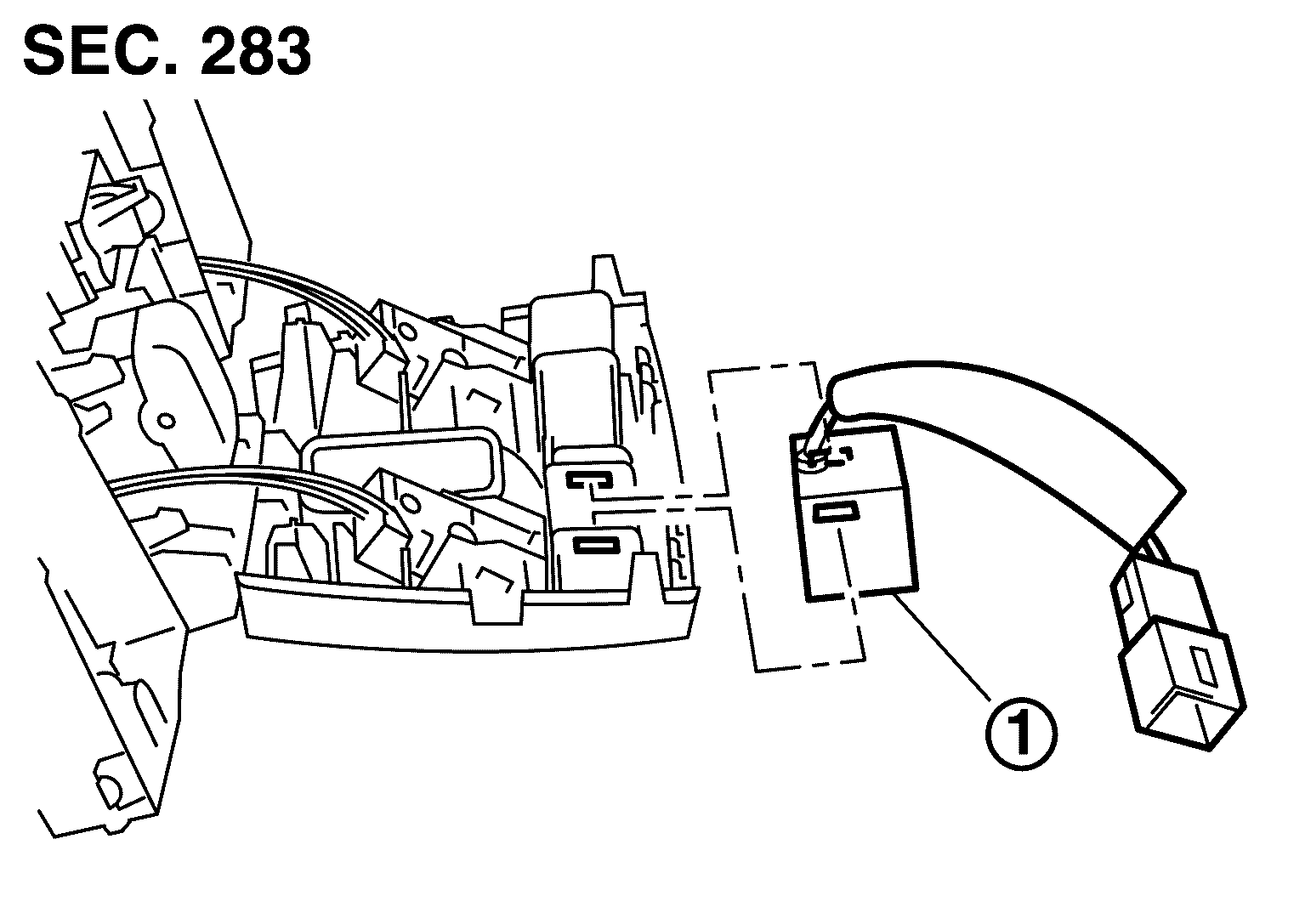

    Fig 1: Identifying Microphone
    G05731706Courtesy of NISSAN MOTOR CO., U.S.A.
