Rear View Camera: Adjustment

WARNING: This page is about a different car, the 2008 Infiniti EX35. However, it is still accessible from the selected car via links, so may be relevant.

Draw lines on rearward area of the vehicle passing through the following points: 250 mm (9.84 in) from both sides of the vehicle, and 0.5 m (1.64 ft), 1.0 m (3.28 ft) from the rear end of the bumper.
Set into "Adjust offset of rear view camera" mode of Confirmation/Adjustment mode.

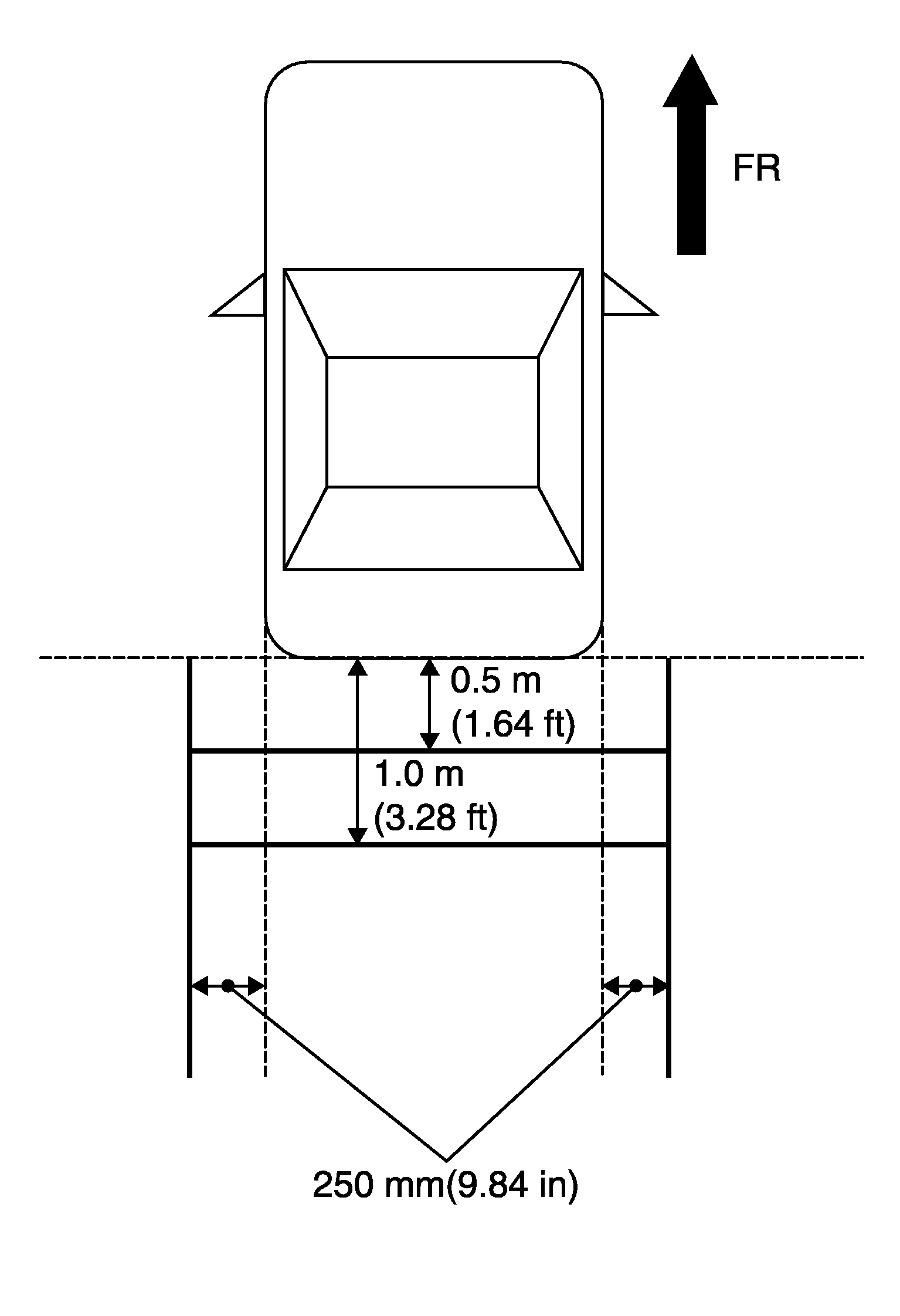

Fig 1: Identifying Rear View Camera Adjusting Dimension
Courtesy of NISSAN MOTOR CO., U.S.A.
Rotate the center dial, and then select the guiding line pattern so that its angle is aligned with the correction line of the rear of the vehicle.
Selected pattern : 7
Make fine adjustment to the correction line of the rear of the vehicle with up/down/left/right switches so that its position is aligned with the guiding line. Press ""
Up/Down adjustment range: -20 - 20

Left/Right adjustment range: -20 - 20

Fig 2: Adjusting Offset Of Rear View Camera
Courtesy of NISSAN MOTOR CO., U.S.A.
CAUTION:
Never operate other function such as pressing BACK while writing index data.
If Confirmation/Adjustment mode does not function in the above procedure, perform one of the following service to adjust the index again.
- Remove battery for five min. Then reconnect battery.
- Remove camera control unit connector for five min. Then reconnect camera control unit connector.
