Around View Monitor Screen

WARNING: This page is about a different car, the 2008 Infiniti EX35. However, it is still accessible from the selected car via links, so may be relevant.

Around view monitor combines and displays the travel direction view and "Birds-Eye view", "Front-Side view", and then it displays the sonar indicator on the "Birds-Eye view", "Front-Side view".
AV control unit renders the "Change View", "BEEP" switch, view icon, warning message on display.

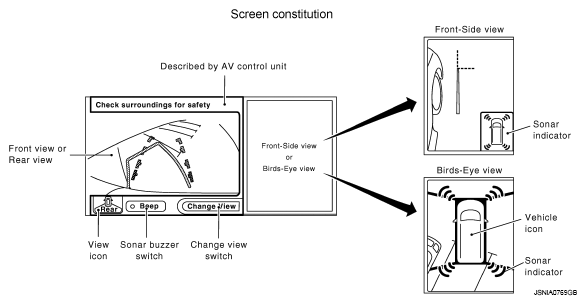

Fig 1: Identifying Around View Monitor Screen (Screen Constitution)
Courtesy of NISSAN MOTOR CO., U.S.A.
