Confirmation/Adjustment Mode
WARNING: This page is about a different car, the 2008 Infiniti EX35. However, it is still accessible from the selected car via links, so may be relevant.
- Start the diagnosis function and select "Confirmation/Adjustment". The confirmation/adjustment mode indicates where each item can be checked or adjusted.
- Select each switch on the "Confirmation/Adjustment Mode" screen to display the relevant trouble diagnosis screen. Press the "BACK" switch to return to the initial Confirmation/Adjustment Mode screen.

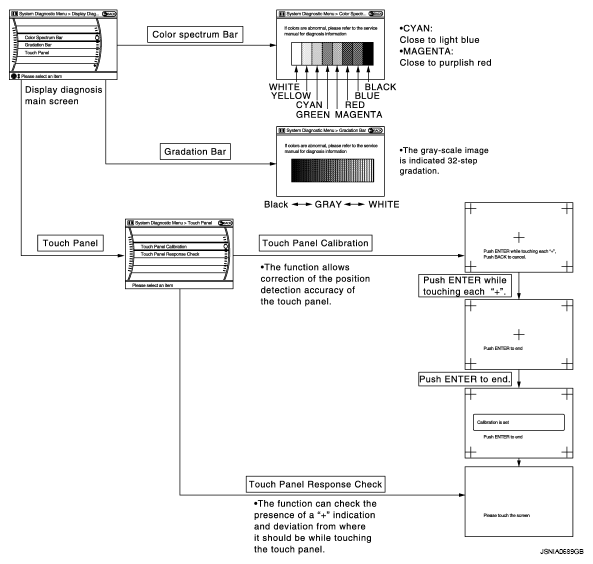

Display Diagnosis
The tint of the color bar indication is as per the following list if a RGB signal error is detected.
R (red) signal error: Light blue (Cyan) tint
G (green) signal error: Purple (Magenta) tint
B (blue) signal error: Yellow tint
Vehicle Signals
A comparison check can be made of each actual vehicle signal and the signals recognized by the system.
DIAGNOSIS ITEM TABLE
| Diagnosis item | Display | Vehicle status | Remarks |
|---|---|---|---|
| Vehicle speed | ON | Vehicle speed > 0 km/h (0 MPH) | Changes in indication may be delayed. This is normal. |
| OFF | Vehicle speed = 0 km/h (0 MPH) | ||
| Parking brake | ON | Parking brake is applied. | |
| OFF | Parking brake is released. | ||
| Lights | ON | Light switch ON | - |
| OFF | Light switch OFF | ||
| Ignition | ON | Ignition switch ON | - |
| OFF | Ignition switch in THE ACC position | ||
| Reverse | ON | Shift the selector lever to the "R" position | Changes in indication may be delayed. This is normal. |
| OFF | Shift the selector lever to a position other than the "R" position |
Speaker Test
Select "SPEAKER DIAGNOSIS" to display the Speaker Diagnosis screen. Press "START and NEXT" to generate a test tone in a speaker. Press "Start" to generate a test tone in the next speaker. Press "End" to stop the test tones.
NOTE:
The frequency of test tone emitted from each speaker is as follows.
SPEAKER TEST REFERENCE TABLE
| Tweeter(1) | : 3 kHz | ||
| Front speaker | : 300 Hz | ||
| Rear speaker | : 1 kHz | ||
|
|||
Climate Control
Refer to HEATER & AIR CONDITIONING CONTROL SYSTEM for details.
Navigation
STEERING ANGLE ADJUSTMENT
The steering angle output value detected with the gyroscope is adjusted.
SPEED CALIBRATION
During normal driving, distance error caused by tire wear and tire pressure change is automatically adjusted for by the automatic distance correction function. This function, on the other hand, is for immediate adjustment, in cases such as driving with tire chains fitted on tires.
XM SAT SUBSCRIPTION STATUS
The XM NavTraffic subscription status can be checked.

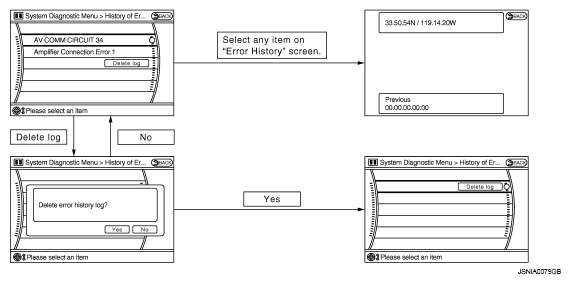

Error History
The self-diagnosis results are judged depending on whether any error occurs from when "Self-diagnosis" is selected until the self-diagnosis results are displayed.
However, the diagnosis results are judged normal if an error has occurred before the ignition SW is turned ON and then no error has occurred until the self-diagnosis start. Check the "Error Record" to detect any error that may have occurred before the self-diagnosis start because of this condition.
The error record displays the time and place of the most recent occurrence of that error. However, take note of the following points.
- If there is a malfunction with the GPS antenna circuit board in AV control unit, the correct date and time of occurrence may not be displayed.
- Place of the error occurrence is represented by the position of the current location mark at the time an error occurred. If current location mark has deviated from the correct position, then the place of the error occurrence cannot be located correctly.
- The frequency of occurrence is displayed in a count up manner. The actual count up method differs depending on the error item.
Count up method A
- The counter resets to 0 if an error occurs when IGN switch is turned ON. The counter increases by 1 if the condition is normal at a next IGN ON cycle.
- The counter upper limit is 39. Any counts exceeding 39 are ignored. The counter can be reset (no error record display) with the "Delete log" switch or CONSULT-III.
Count up method B
- The counter increases by 1 if an error occurs when IGN switch is ON. The counter will not decrease even if the condition is normal at the next IGN ON cycle.
- The counter upper limit is 50. Any counts exceeding 50 are ignored. The counter can be reset (no error record display) with the "Delete log" switch or CONSULT-III.
ERROR HISTORY DISPLAY ITEM TABLE
| Display type of occurrence frequency | Error history display item |
|---|---|
| Count up method A | CAN communication line, control unit (CAN), AV communication line, control unit (AV communication) |
| Count up method B | Other than the above |
Error item
Some error items may be displayed simultaneously according to the cause. If some error items are displayed simultaneously, the detection of the cause can be performed by the combination of display items.
ERROR ITEM TABLE
| Error item | Detection logic | Possible malfunction factor/Action to take |
|---|---|---|
| CAN COMM CIRCUIT | CAN communication malfunction is detected. | Perform diagnosis with CONSULT-III, and then repair the malfunctioning parts according to the diagnosis results. Refer to CONSULT-III FUNCTION (MULTI AV) . |
| CONTROL UNIT (CAN) | CAN initial diagnosis malfunction is detected. | Replace AV control unit. |
| CONTROL UNIT (AV) | AV communication circuit initial diagnosis malfunction is detected. | |
| FLASH-ROM Error Of Control Unit | AV control unit malfunction is detected. | |
| Connection Of Gyro | ||
| XM SERIAL COMM Error | ||
| CAN Controller Memory Error | ||
| Bluetooth Module Connection Error | ||
| HDD CONN Error | ||
| HDD READ Error | ||
| HDD WRITE Error | ||
| HDD COMM Error | ||
| HDD ACCESS Error | ||
| DSP CONN Error | ||
| DSP COMM Error | ||
| Internal Communication Error | When either one of the following items are detected:
|
|
| GPS Communication Error | GPS malfunction is detected. | An intermittent error caused by strong radio interference may be detected unless any symptom (GPS reception error, etc.) occurs. Replace AV control unit if the malfunction occurs constantly. |
| GPS ROM Error | ||
| GPS RAM Error | ||
| GPS RTC Error | ||
| Front Display Connection Error | When either one of the following items are detected:
|
|
| GPS Antenna Error | GPS antenna connection malfunction is detected. | GPS antenna. |
| Camera Control Unit Connection Error | Malfunction is detected in the camera connection recognition circuit between AV control unit and camera control unit. | Camera-connection recognition circuit between AV control unit and camera control unit. |
| XM Antenna Connection Error | Poor connection is detected in satellite radio antenna. |
|
|
When either one of the following items are detected:
|
|
|
WITHOUT REAR VIEW MONITOR AND AROUND VIEW MONITOR When either one of the following items are detected:
|
|
| WITH REAR VIEW MONITOR When either one of the following items are detected:
|
|
|
| WITH AROUND VIEW MONITOR When either one of the following items are detected:
|
|
|
|
Camera control unit power supply or ground circuits malfunction is detected. | Camera control unit power supply and ground circuits. |
|
WITHOUT REAR VIEW MONITOR AND AROUND VIEW MONITOR When either one of the following items are detected:
|
WITHOUT REAR VIEW MONITOR AND AROUND VIEW MONITOR
|
| WITH REAR VIEW MONITOR When either one of the following items are detected:
|
WITH REAR VIEW MONITOR
|
|
| WITH AROUND VIEW MONITOR When either one of the following items are detected:
|
WITH AROUND VIEW MONITOR
|
|
|
Around view monitor control unit power supply or ground circuits malfunction is detected. | Around view monitor control unit power supply and ground circuits. |
|
When either one of the following items are detected:
|
|
|
Malfunction is detected in the AV communication circuits between AV control unit and the junction between multifunction and iPod adapter. | AV communication circuits between AV control unit and the junction between multifunction and iPod adapter. |
|
Malfunction is detected in the AV communication circuits between camera control unit and the junction between AV control unit and multifunction switch. | AV communication circuits between camera control unit and the junction between AV control unit and multifunction switch. |
|
Malfunction is detected in the AV communication circuits between AV control unit and the junction between camera control unit and multifunction switch. | AV communication circuits between AV control unit and the junction between camera control unit and multifunction switch. |
|
Malfunction is detected in the AV communication circuits between around view monitor control unit and the junction between AV control unit and multifunction switch. | AV communication circuits between around view monitor control unit and the junction between AV control unit and multifunction switch. |
|
Malfunction is detected in the AV communication circuits between AV control unit and the junction between around view monitor control unit and multifunction switch. | AV communication circuits between AV control unit and the junction between around view monitor control unit and multifunction switch. |
|
Malfunction is detected in the AV communication circuits. | Check and repair the short circuit in AV communication circuits. |
|
Malfunction is detected in the AV communication circuits. | Check and repair the short circuit in AV communication circuits. |
Vehicle CAN Diagnosis
- CAN communication status and error counter is displayed.
- The error counter displays "OK" if any malfunction was not detected in the past and displays "0" if a malfunction is detected. It increases by 1 if the condition is normal at the next ignition switch ON cycle. The upper limit of the counter is 39.
- The error counter is erased if "Reset" is pressed.
MALFUNCTION DISPLAY TABLE
| Items | Display (Current) | Malfunction counter (Past) |
|---|---|---|
| Tx(HVAC) | OK / UNKWN | OK / 0 - 39 |
| Rx(ECM) | OK / UNKWN | OK / 0 - 39 |
| Rx(Cluster) | OK / UNKWN | OK / 0 - 39 |
| Rx(BCM) | OK / UNKWN | OK / 0 - 39 |
| Rx(HVAC) | OK / UNKWN | OK / 0 - 39 |
| Rx(USM) | OK / UNKWN | OK / 0 - 39 |
AV COMM Diagnosis
- Displays the communication status between AV control unit (master unit) and each unit.
- The error counter displays "OK" if any malfunction was not detected in the past and displays "0" if a malfunction is detected. It increases by 1 if the condition is normal at the next ignition switch ON cycle. The upper limit of the counter is 39.
- The error counter is erased if reset.
ITEM STATUS (CURRENT) TABLE
| Items | Status (Current) | Counter (Past) |
|---|---|---|
| C Tx(ITM-PrimarySW) | OK / UNKWN | OK / 0 - 39 |
| C Rx(PrimarySW-ITM) | OK / UNKWN | OK / 0 - 39 |
| C Rx(STRG SW-ITM) | OK / UNKWN | OK / 0 - 39 |
| C Rx(Audio-ITM) | OK / UNKWN | OK / 0 - 39 |
| C Rx(Amp-ITM) | OK / UNKWN | OK / 0 - 39 |
| C Rx(RearCamera-ITM) | OK / UNKWN | OK / 0 - 39 |
| C Rx(XM-ITM) | OK / UNKWN | OK / 0 - 39 |
| C Rx(iPod-ITM) | OK / UNKWN | OK / 0 - 39 |
| C RX(AVM-ITM) | OK / UNKWN | OK / 0 - 39 |
| C Rx(Amp-Audio) | - | - |
| C Rx(iPod-Audio) | OK / UNKWN | OK / 0 - 39 |
| C Rx(Sonar-AVM) | OK / UNKWN | OK / 0 - 39 |
| C Tx(Audio-ITM) | OK / UNKWN | OK / 0 - 39 |
NOTE:
- Any units with "-" displayed have no history of vehicle connection.
- "Audio" and "Amp" indicate the same status because "Amp" indicates the status of the amplifier integrated in AV control unit.
- "STRG SW", "Amp" and "XM" indicate the same status as "Audio".
Hands-Free Phone
The hands-free phone reception volume adjustment, microphone and speaker test, and memory erase functions are also available.
Camera Cont. (With Rear View Monitor)
The two functions of "Connection Confirmation" and "Adjust Offset of Rear View Camera" are available.
CONNECTION CONFIRMATION
Steering angle sensor, reverse signal and vehicle speed sensor can be inspected.
DIAGNOSIS ITEM TABLE
| Diagnosis item | Display | Vehicle status |
|---|---|---|
| Steer. Angle Sensor | ON | When steering the vehicle with ignition switch ON (remains ON until connection mode is stopped when it is turned ON) |
| OFF |
|
|
| - | Malfunction detected in camera connection recognition signal | |
| Reverse Sensor | ON | Selector lever is in "R" with ignition switch ON. |
| OFF |
|
|
| - | Malfunction detected in camera-connection recognition signal | |
| Vehicle Speed Sensor | ON | Vehicle speed is more than 0 km/h (0 MPH) with ignition switch ON |
| OFF |
|
|
| - | Malfunction detected in camera connection recognition signal | |
| Side view Switch | - | Not used |
ADJUST OFFSET OF REAR VIEW CAMERA
Use this mode to adjust the guide line display position of the rear view monitor if necessary after removing the rear view monitor camera.
Camera Cont. (With Around View Monitor)
Refer to DIAGNOSIS DESCRIPTION .
Bluetooth
Confirm/Change Passkey
- The passkey of Bluetooth can be confirmed and changed.
- The passkey can be changed by four digits within 0 to 9.
Confirm/Change Device Name
- The device name of Bluetooth can be confirmed and changed.
- The device name can be changed by sixteen digits within A to Z (small character can be used) and - (hyphen).
SAT
- Change Channel
- Any necessary channels required to receive traffic information from the satellite radio system can be set.
- Change Application ID
- Any application IDs required to receive traffic information from the satellite radio system can be set.
Delete Unit Connection Log
Deletes any unit connection records and error records from AV control unit memory. (Clear the records of the unit that has been removed.)
Initialize Settings
Deletes data stored in HDD.
