WITH ELECTRIC MOTOR : Exploded View

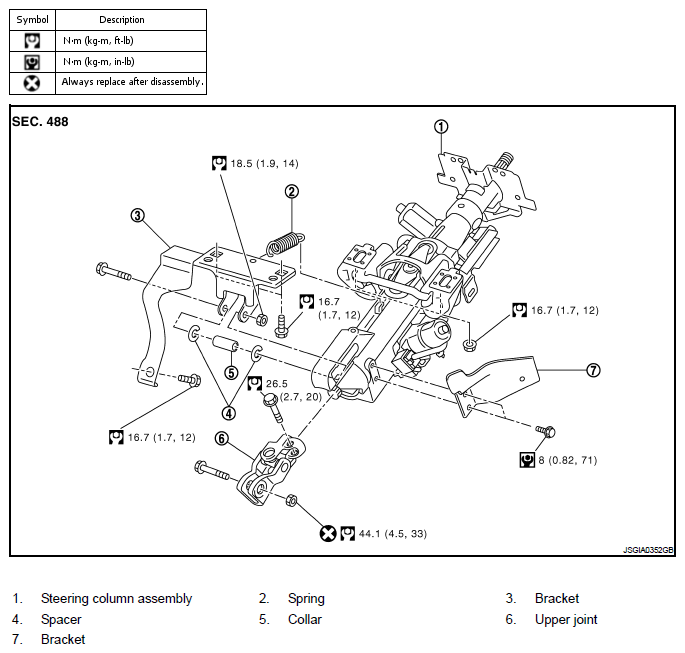

Fig 1: Exploded View Of Electric Motor With Torque Specification
G06302623Courtesy of NISSAN MOTOR CO., U.S.A.

Refer to "COMPONENTS " for symbols in the figure.
