WITHOUT ELECTRIC MOTOR : Exploded View

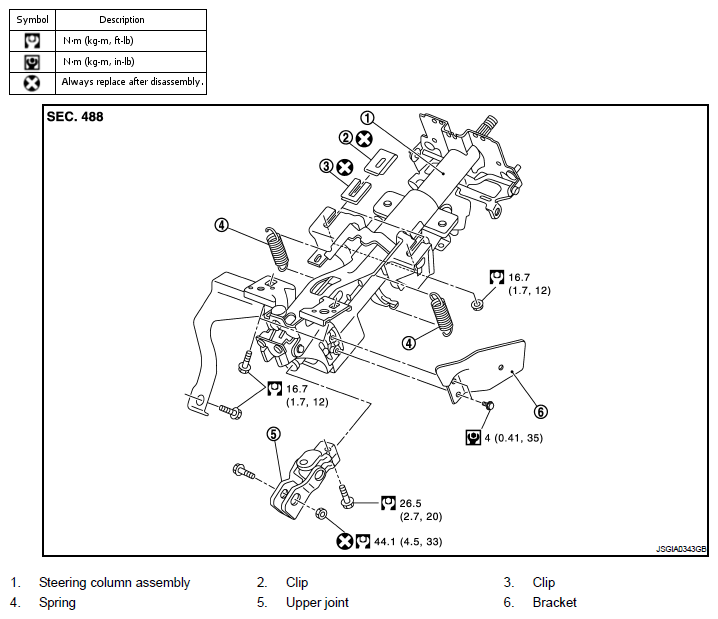

Fig 1: Steering Column Assembly, Upper Joint, Clip And Bracket With Torque Specifications
Courtesy of NISSAN MOTOR CO., U.S.A.
Refer to "
COMPONENTS
" for symbols in the figure.
