Touch Panel System

Each operation of multi AV system can be performed by directly touching a display.

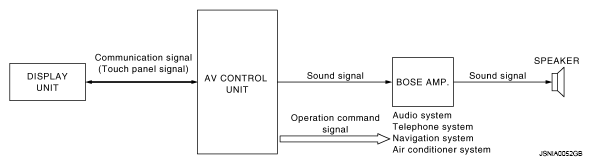

Fig 1: Touch Panel System Diagram
G05220183Courtesy of NISSAN MOTOR CO., U.S.A.
