Exploded View

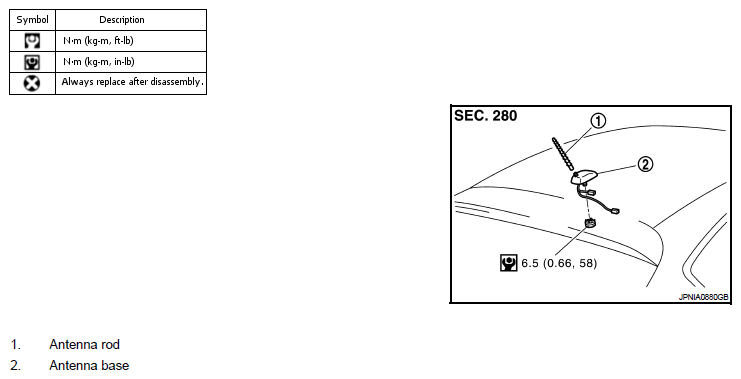

Fig 1: Antenna Base And Antenna Rod With Torque Specifications
G06296505Courtesy of NISSAN MOTOR CO., U.S.A.

Refer to "COMPONENTS " for symbols in the figure.
