Calibrating Camera Image
- Perform the calibration of camera image caused by the incorrect mounting position of each camera, etc. Always perform calibration after performing the following work.
- When each camera or each camera mount (door mirror, front grille, etc.) is removed
- When replacing around view monitor control unit
- When performing the calibration initialization, it can be set to the NISSAN factory shipment condition.
Refer to "CALIBRATING CAMERA IMAGE (AROUND VIEW MONITOR) : SPECIAL REPAIR REQUIREMENT " for the calibration procedure.

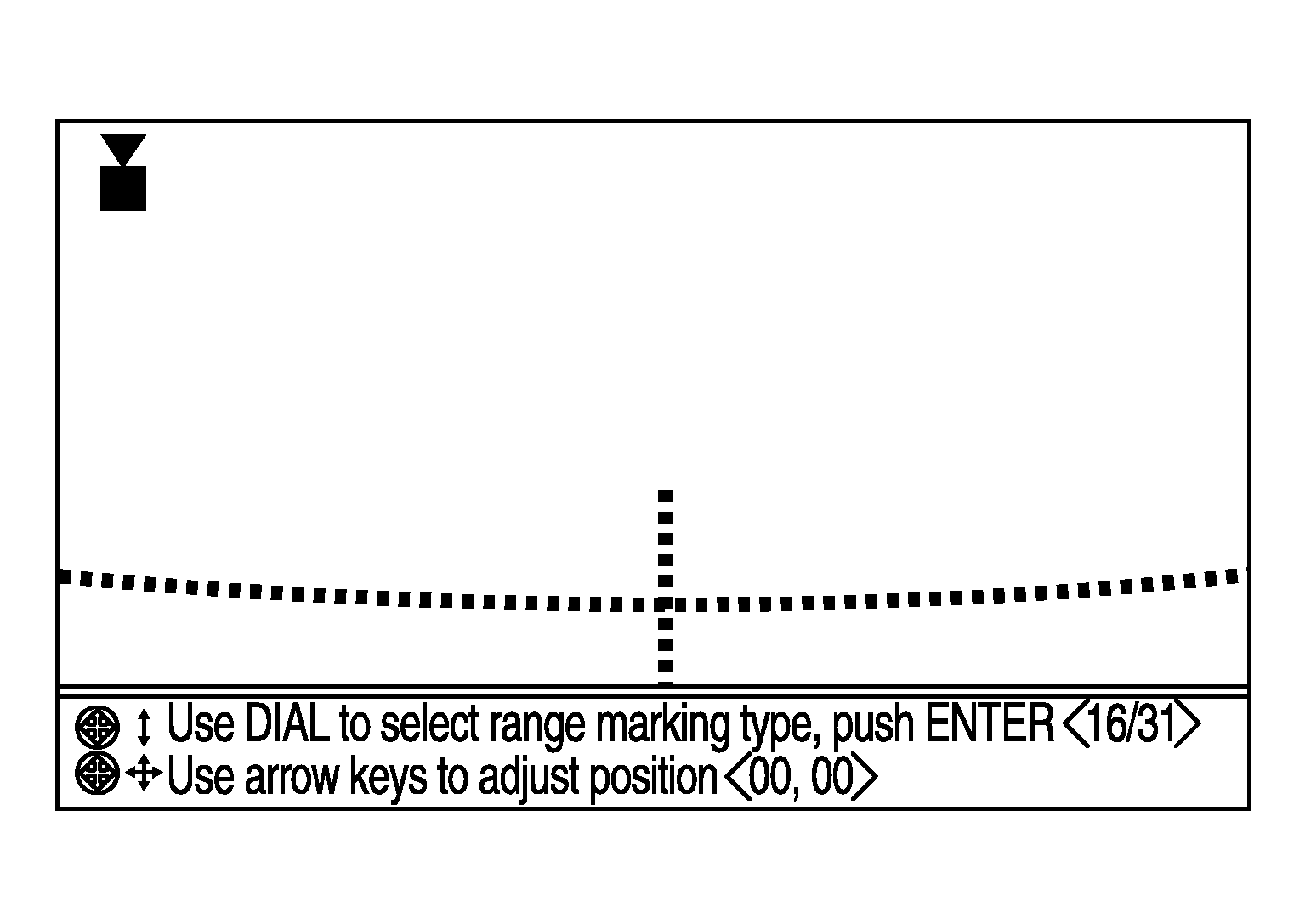

Adjustment range
Rotating direction : 31 patterns (16 on the center)
Upper/lower direction : -99 - 99
Left/right direction : -99 - 99
Calibrating Camera Image item
CALIBRATING CAMERA IMAGE ITEM
| Items | Description | ||
|---|---|---|---|
| Rear Camera | Performs the calibration of rear camera. | ||
| Pass-Side Camera | Performs the calibration of side camera RH. | ||
| Front Camera | Performs the calibration of front camera. | ||
| Dr-Side Camera | Performs the calibration of side camera LH. | ||
| Initialize Camera Image Calibration(1) | The calibration can be initialized to the factory shipment setting. | ||
|
|||
Correct Draw Line of Camera Image
The display position of guiding lines when displayed on the rear view, front view, and front-side view can be changed.
Adjustment range
Rotating direction : 31 patterns
Upper/lower direction : -25 - 25
Left/right direction : -25 - 25
Correct Draw Line of Camera Image item
CORRECT DRAW LINE OF CAMERA IMAGE ITEM
| Items | Description |
|---|---|
| Rear View | The position of rear view guiding line can be changed. |
| Front-Side View | The position of Front-Side view guiding line can be changed. |
| Front View | The position of Front view guiding line can be changed. |
