Fine Tuning Of Birds-Eye View
- The fine adjustment function of camera calibration can check and adjust the difference between each camera.

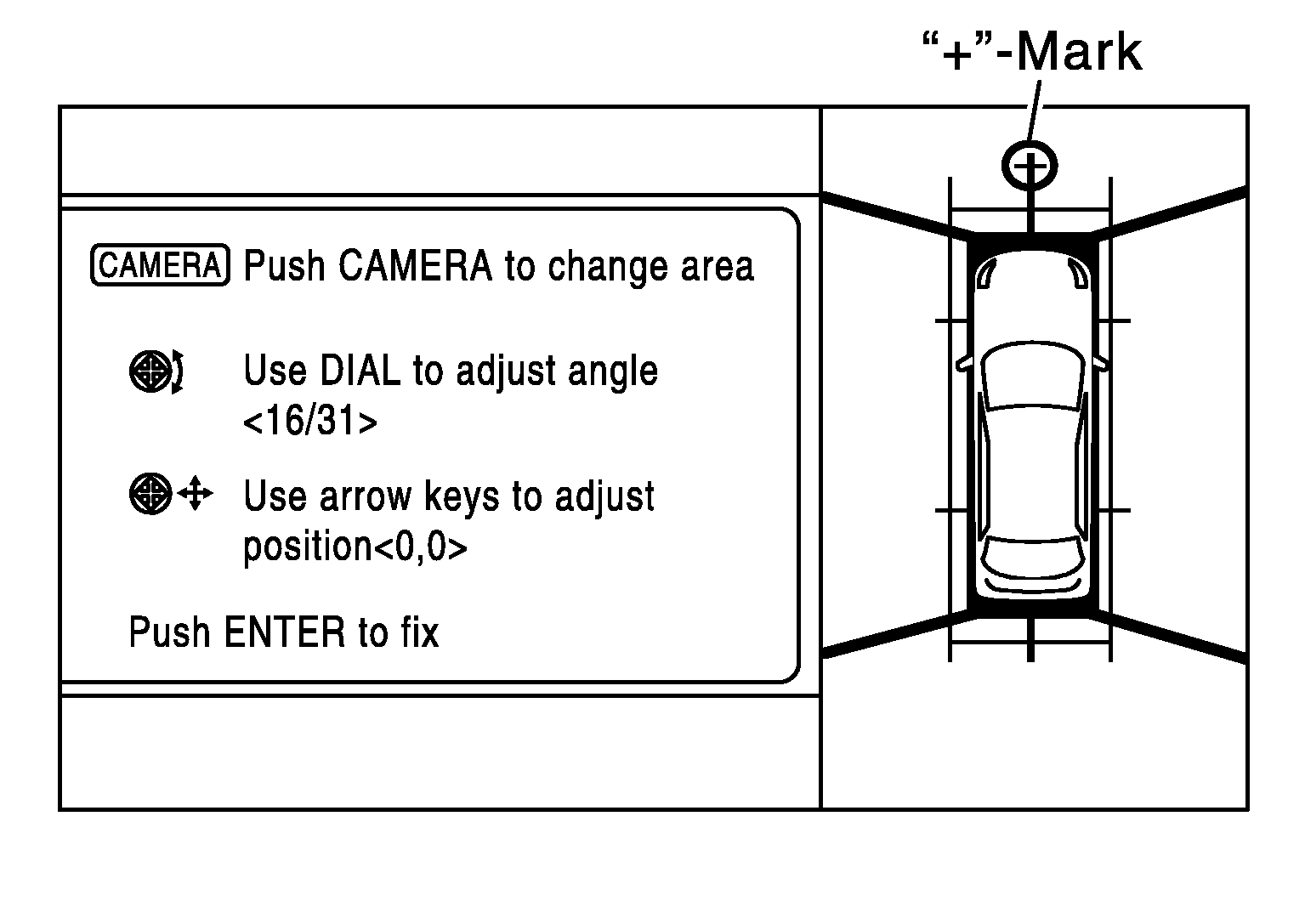

- Fine adjustments can be performed for each camera. Move the "+"-mark to select the camera by pressing the "CAMERA" switch.
- Perform the adjustment with the center dial and upper/lower/left/right switches.
CAUTION:
Operate the center dial slowly because the changing of the screen takes approximately 1 second.
NOTE:
- It can be initialized to the NISSAN factory shipment setting with "Initialize Camera Image Calibration" of "Calibrating Camera Image".
- The adjustment value is cancelled in this mode by performing "Initialize Camera Image Calibration".
Adjustment range
Rotating direction : 31 patterns (16 on the center)
Upper/lower direction : -99 - 99
Left/right direction : -99 - 99
