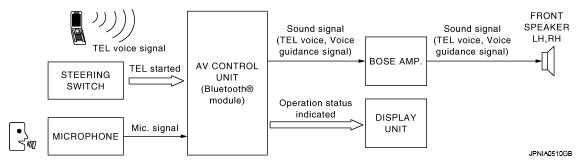

Hands-Free Phone System
- Hands-free communication can be operated by connecting using Bluetooth® with cellular phone.
- Operation is performed by steering switch, and operating condition is indicated on display.
- Guide sound that is heard during operation is input from AV control unit to BOSE amp. and is output from door speakers.
When A Call Is Originated
Spoken voice sound output from the microphone (Mic. Signal) is input into AV control unit. AV control unit outputs to cellular phone with Bluetooth communication as a TEL voice signal. Voice sound is then heard by the other party.
When Receiving A Call
Voice sound is input to one's own cellular phone from the other party. TEL voice signal is output to door speakers, and the signal is input to BOSE amp. via AV control unit by establishing Bluetooth communication from cellular phone.
