Air Conditioner LAN Control System

The LAN (Local Area Network) system consists of unified meter and A/C amp, mode door motor, air mix door motors and intake door motor.

A configuration of these components is as shown in the figure below.

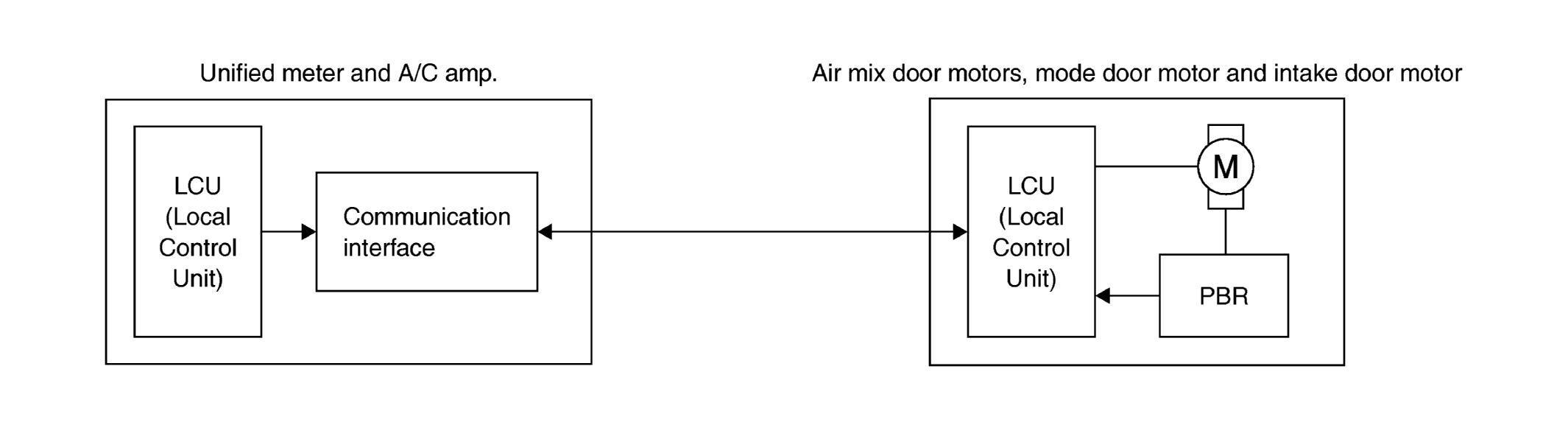

Fig 1: Air Conditioner LAN Control Communication Diagram
G05727716Courtesy of NISSAN MOTOR CO., U.S.A.
