Control System

The control system consists of input sensors, switches, unified meter and A/C amp. (microcomputer) and outputs.

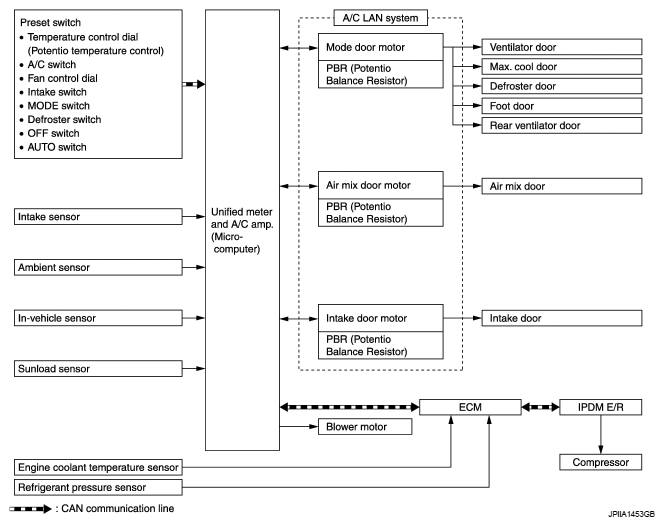

The relationship of these components is as shown in the figure below:

Fig 1: Ventilation Temperature Separately Control System Diagram
G06294774Courtesy of NISSAN MOTOR CO., U.S.A.
