Principle Of Operation

Compressor is not activated.

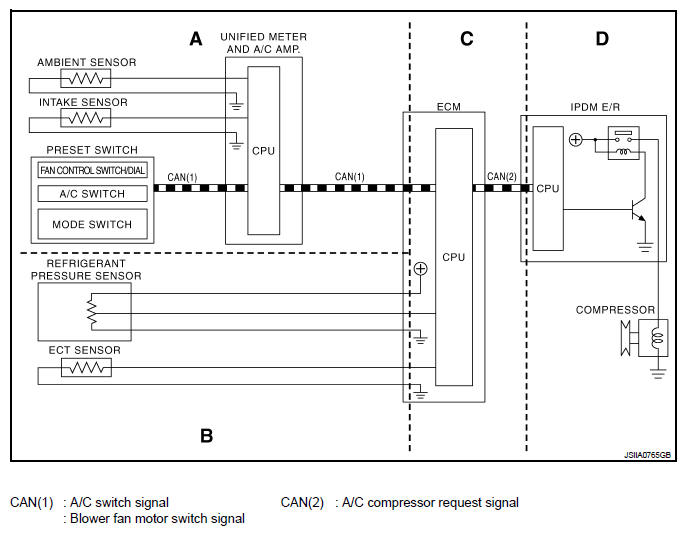

Functional circuit diagram

Fig 1: Ventilation Temperature Separately Control System Operation Diagram
G06294771Courtesy of NISSAN MOTOR CO., U.S.A.

Functional initial inspection chart

FUNCTIONAL INITIAL INSPECTION CHART

Location A B C D
CONSULT-III ECM DATA MONITOR   Yes Yes
IPDM E/R DATA MONITOR     Yes
AUTO ACTIVE TEST       Yes
Self-diagnosis function (except CAN diagnosis) Yes
