Direct Clutch: Assembly

  1. Install drive plates, driven plates, dish plate, retaining plates and snap ring to direct clutch drum.
    CAUTION: Check the order of plates.

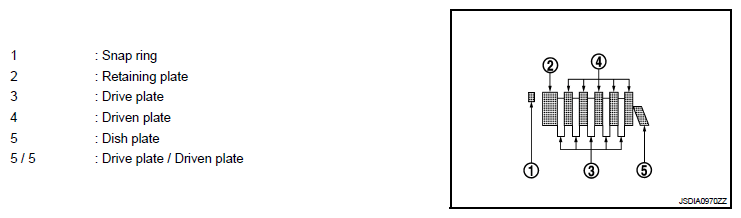

    Fig 1: Identifying Drive Plates, Driven Plates, Dish Plate, Retaining Plates And Snap Ring To Direct Clutch Drum
    G06301224Courtesy of NISSAN MOTOR CO., U.S.A.
  2. Install snap ring to direct clutch drum with a flat-bladed screwdriver.
    Fig 2: Identifying Snap Ring With Flat-Bladed Screwdriver
    G04876143Courtesy of NISSAN MOTOR CO., U.S.A.
