ICC Steering Switch

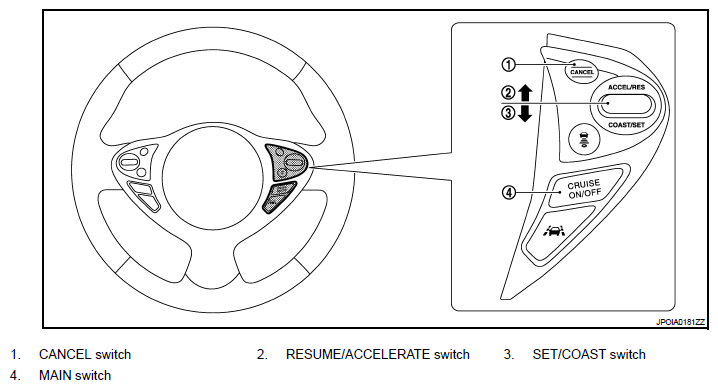

Fig 1: Identifying ICC Steering Switches

Courtesy of NISSAN MOTOR CO., U.S.A.

OPERATION DESCRIPTION TABLE

No.	Description	Function
1	CANCEL switch	Deactivates system without erasing set speed.
2	RESUME/ACCELERATE switch	Resumes set speed or increases speed incrementally.
3	SET/COAST switch	Sets desired cruise speed or reduces speed incrementally.
4	MAIN switch	Master switch to activate the system (Press for more than 1.5 seconds).
