ICC System Display (On The Information Display)

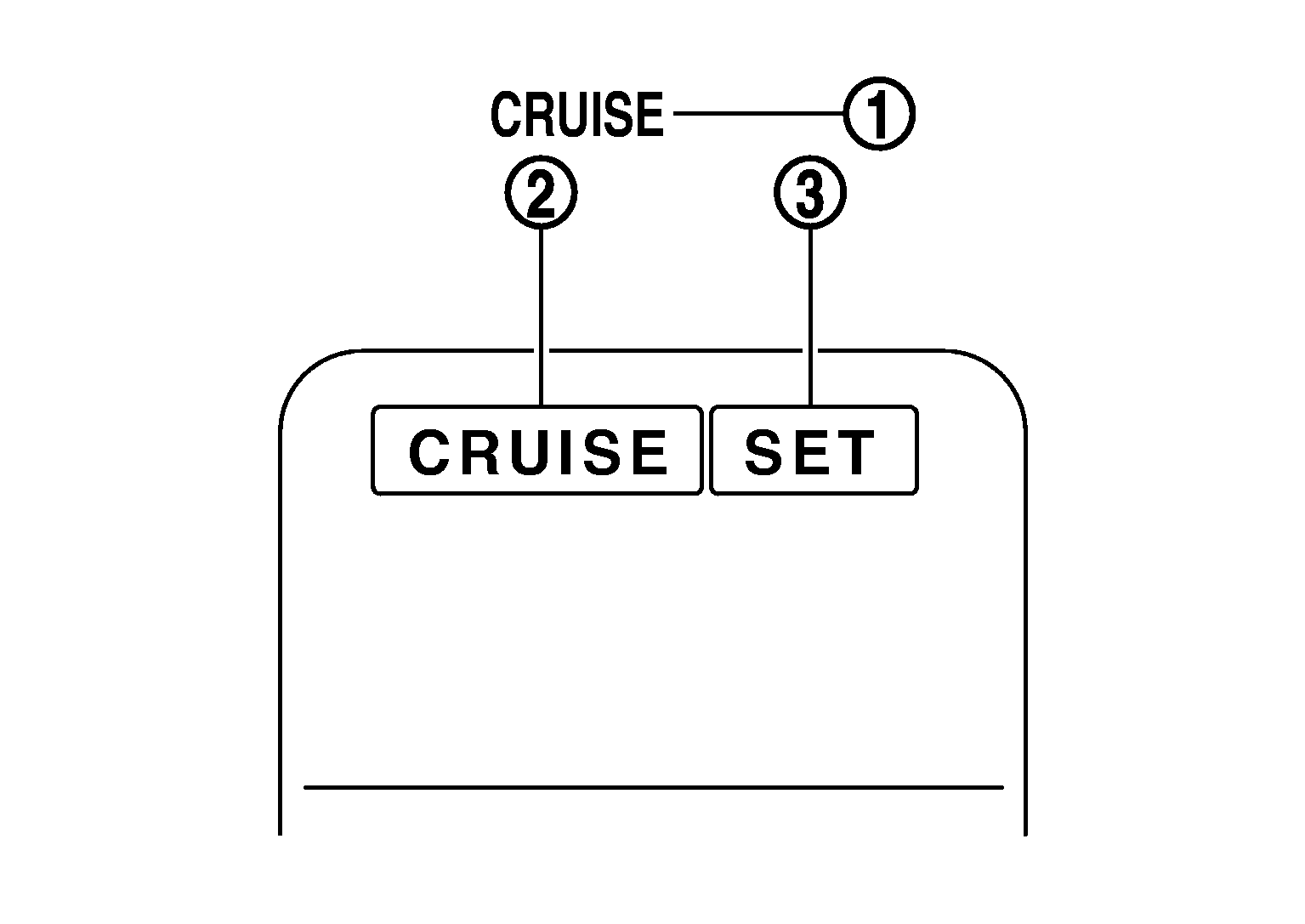

Fig 1: Screen Display - ICC Information

Courtesy of NISSAN MOTOR CO., U.S.A.

OPERATION DESCRIPTION TABLE

No.	Description	Function
1	ICC system warning lamp	Indicates that a malfunction occurs in the ICC system.
2	MAIN switch indicator	Indicates that the MAIN switch is ON (ICC system ON).
3	SET switch indicator	Indicates that the set conventional (fixed speed) cruise control mode is controlled.
