Display Diagnosis

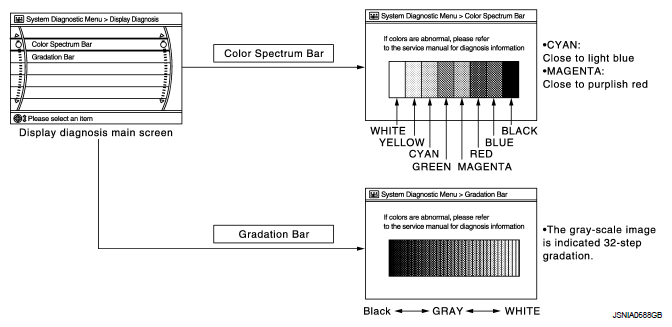

Fig 1: Diagnosis Display - Color Spectrum Bar And Gradation Bar

Courtesy of NISSAN MOTOR CO., U.S.A.

The tint of the color bar indication is as per the following list if a RGB signal error is detected.

R (red) signal error: Light blue (Cyan) tint

G (green) signal error: Purple (Magenta) tint

B (blue) signal error: Yellow tint
