Function Diagnosis
>>
Front Final Drive Assembly
>>
System Diagram
>>
Cross-Sectional View
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
Cross-Sectional View

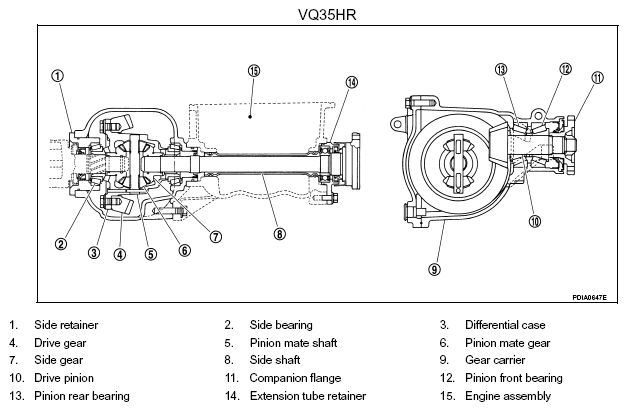

Fig 1: Front Final Drive Assembly (VQ35HR) - System Diagram
Courtesy of NISSAN MOTOR CO., U.S.A.

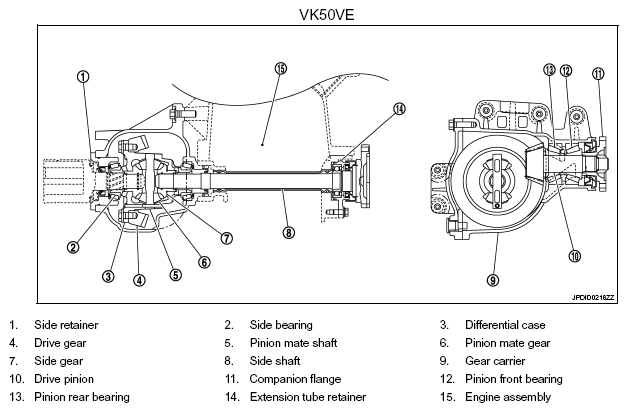

Fig 2: Front Final Drive Assembly (VK50VE) - System Diagram
Courtesy of NISSAN MOTOR CO., U.S.A.
