Control System

The control system consists of input sensors, switches, unified meter and A/C amp. (microcomputer) and outputs. The relationship of these components is as shown below:

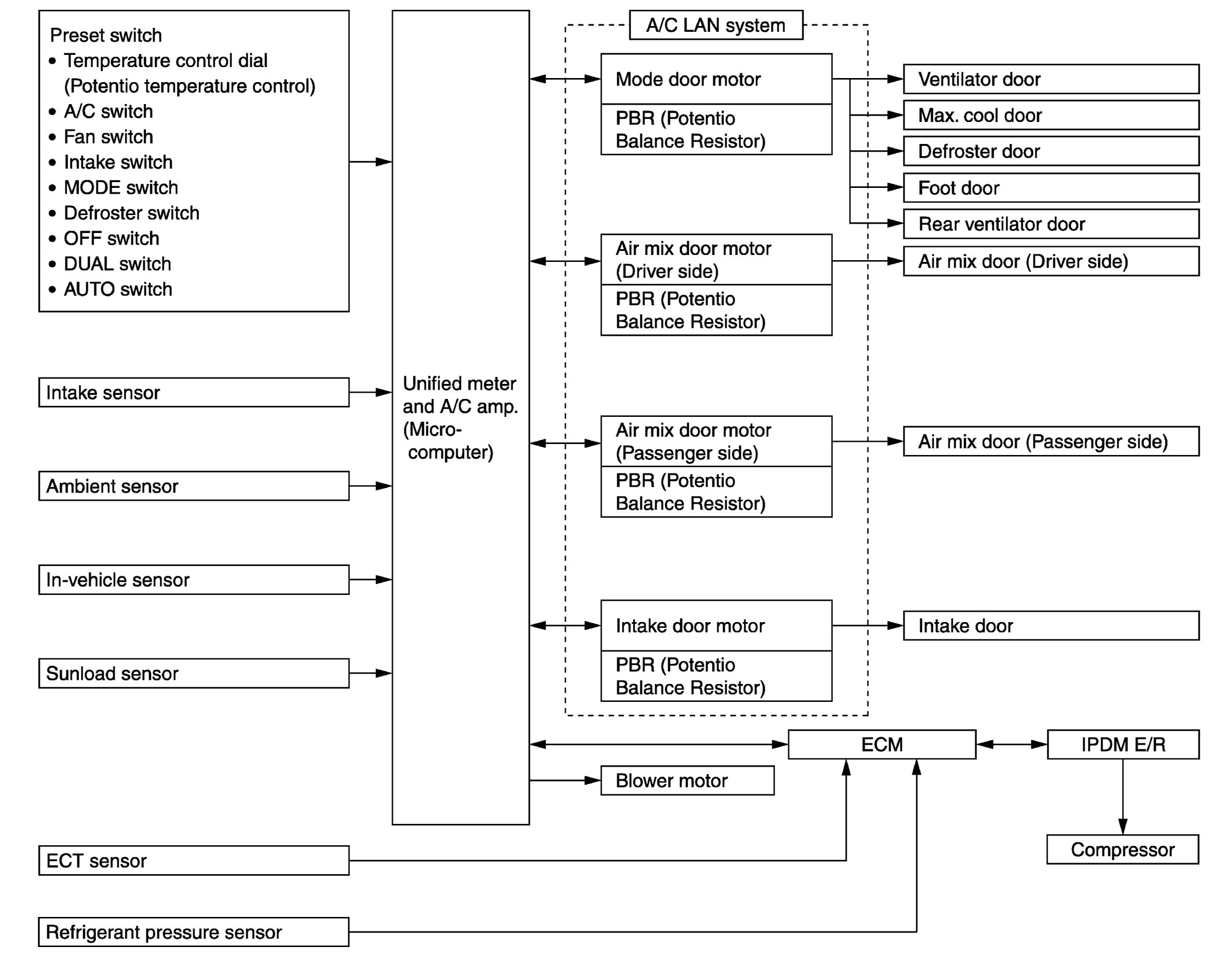

Fig 1: Automatic Air Conditioner System Diagram (Without ACCS)
G05981902Courtesy of NISSAN MOTOR CO., U.S.A.
