WITH ACCS: System Description

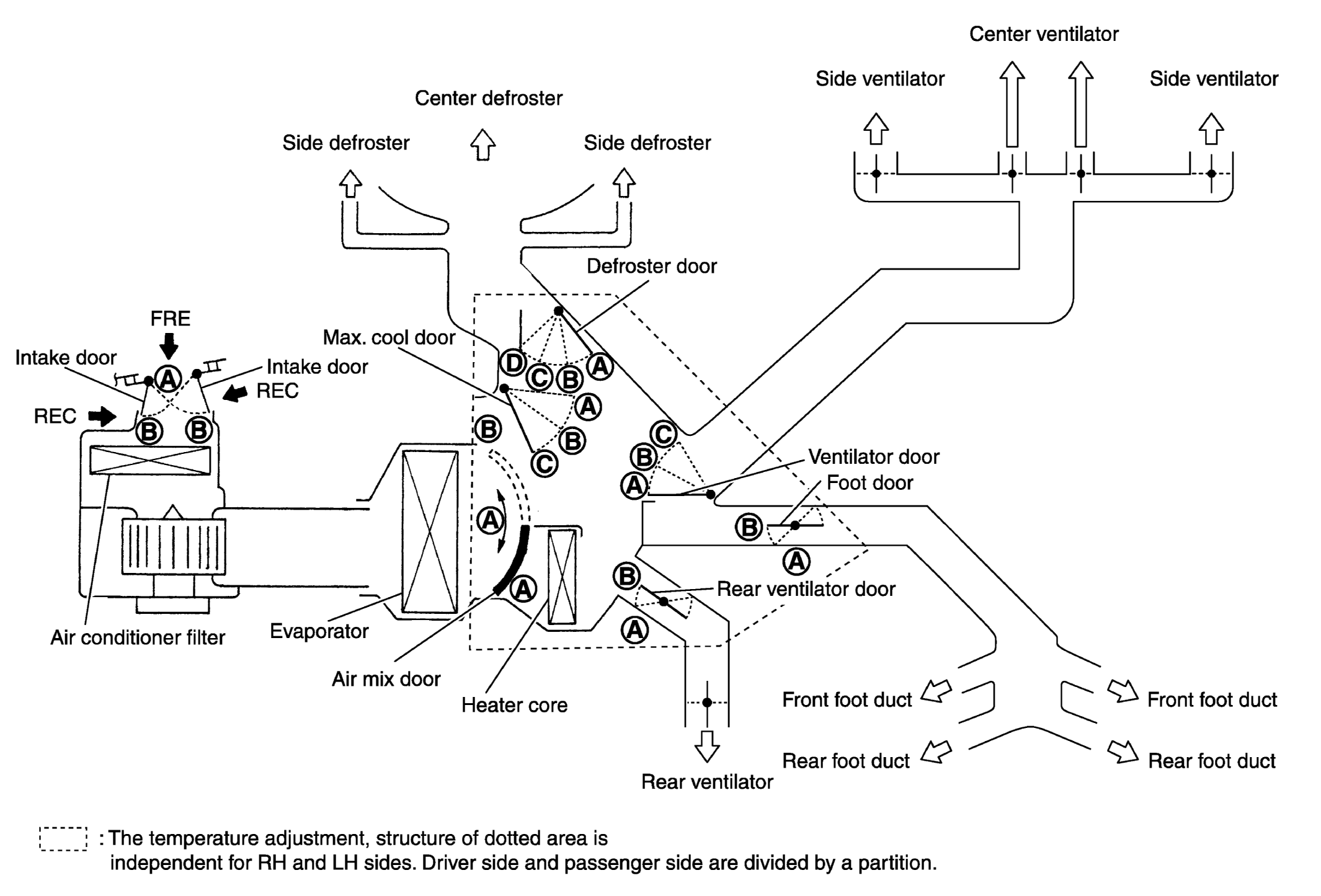

Fig 1: Switch Function System Diagram (With ACCS)
G05984593Courtesy of NISSAN MOTOR CO., U.S.A.

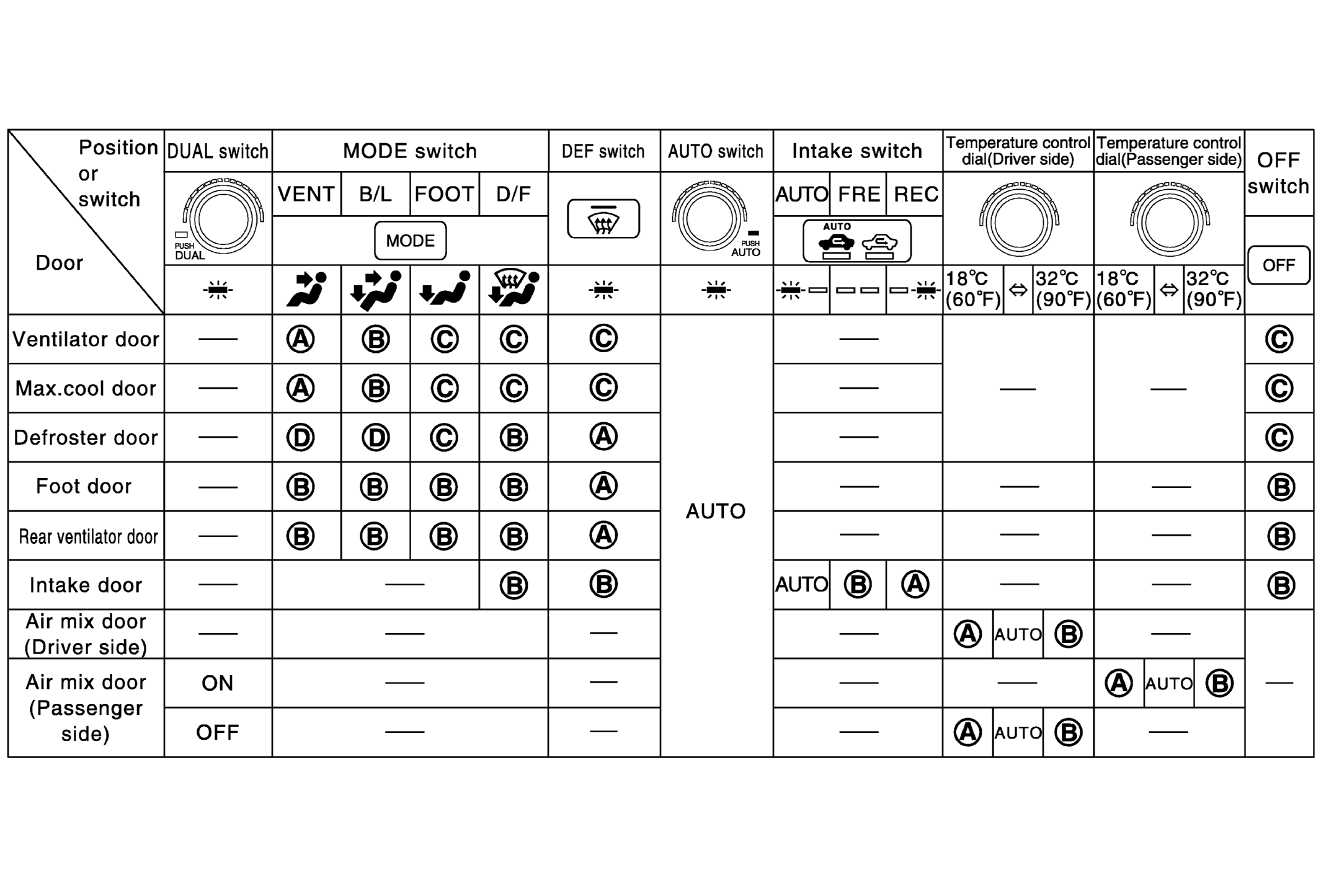

Fig 2: Mode Position Indication Condition Table
G05984596Courtesy of NISSAN MOTOR CO., U.S.A.
