Component Parts Location

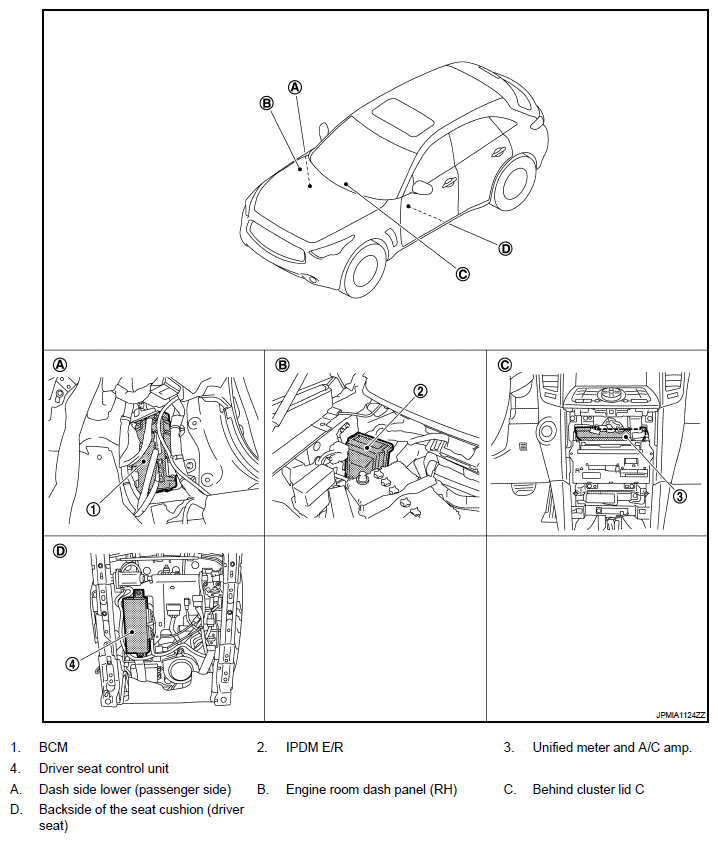

Fig 1: Identifying Power Consumption Control System Components Location
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
