CAN Communication Signal Table

NOTE: Refer to ABBREVIATION LIST for the abbreviations of the connecting units.

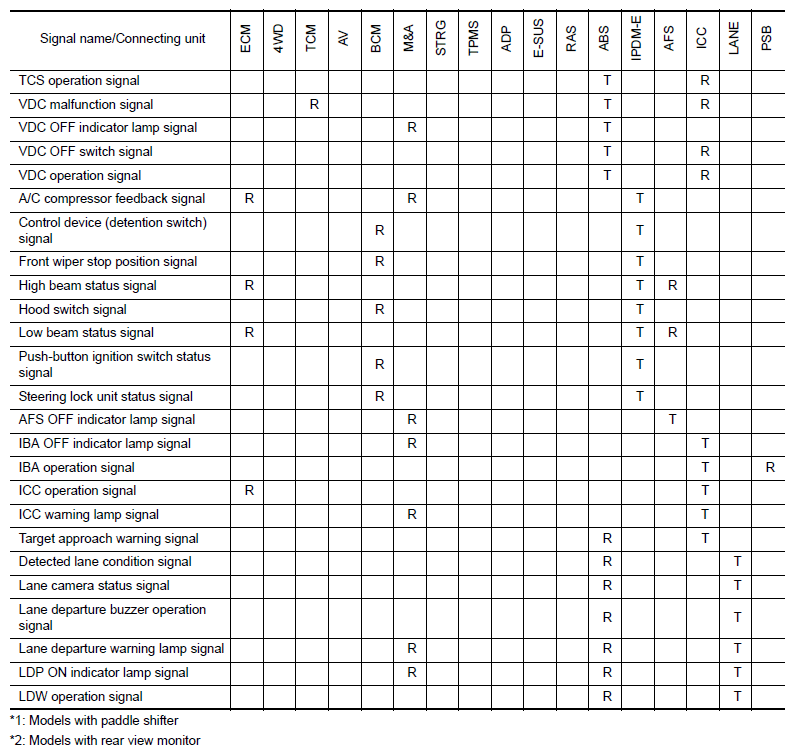

Fig 1: CAN Communication Signal Table (1 Of 4)

Courtesy of NISSAN MOTOR CO., U.S.A.

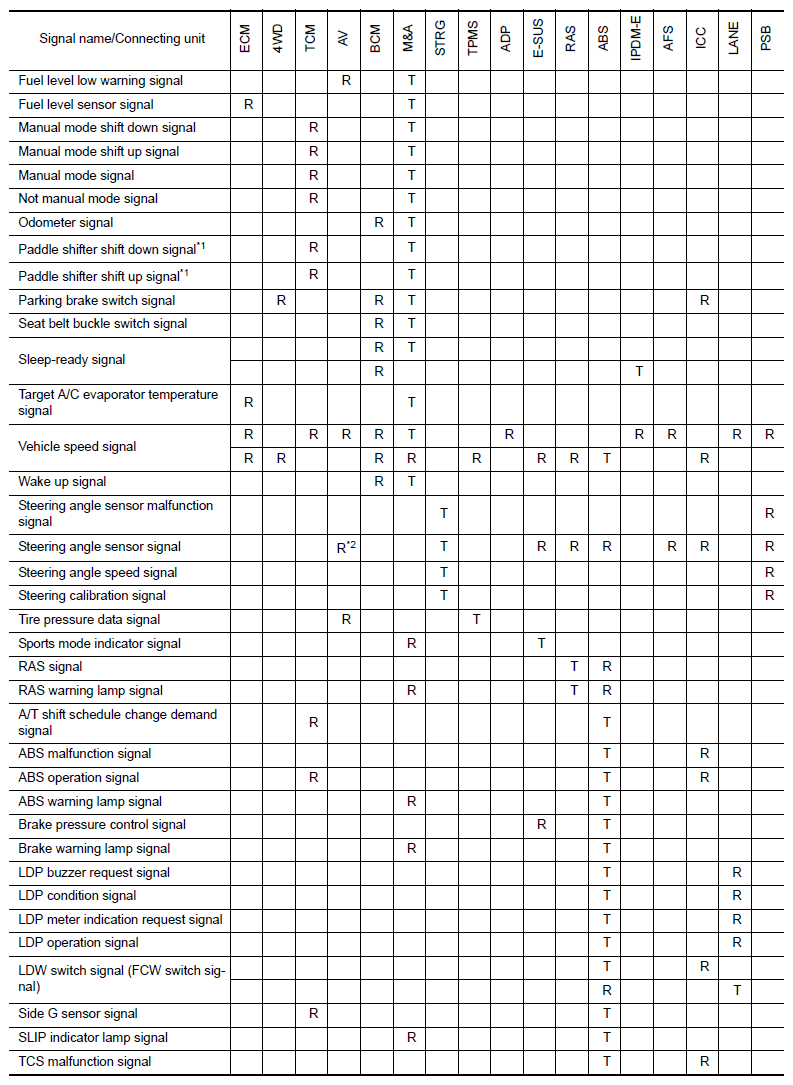

Fig 2: CAN Communication Signal Table (2 Of 4)

Courtesy of NISSAN MOTOR CO., U.S.A.

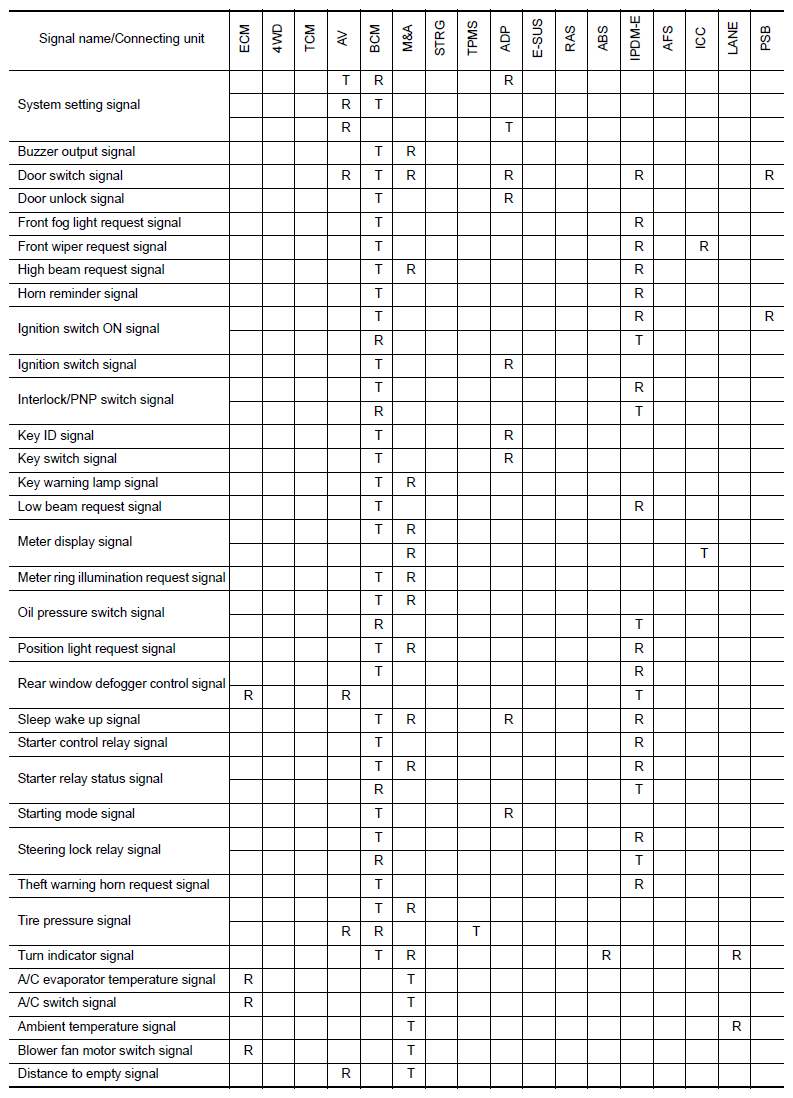

Fig 3: CAN Communication Signal Table (3 Of 4)

Courtesy of NISSAN MOTOR CO., U.S.A.

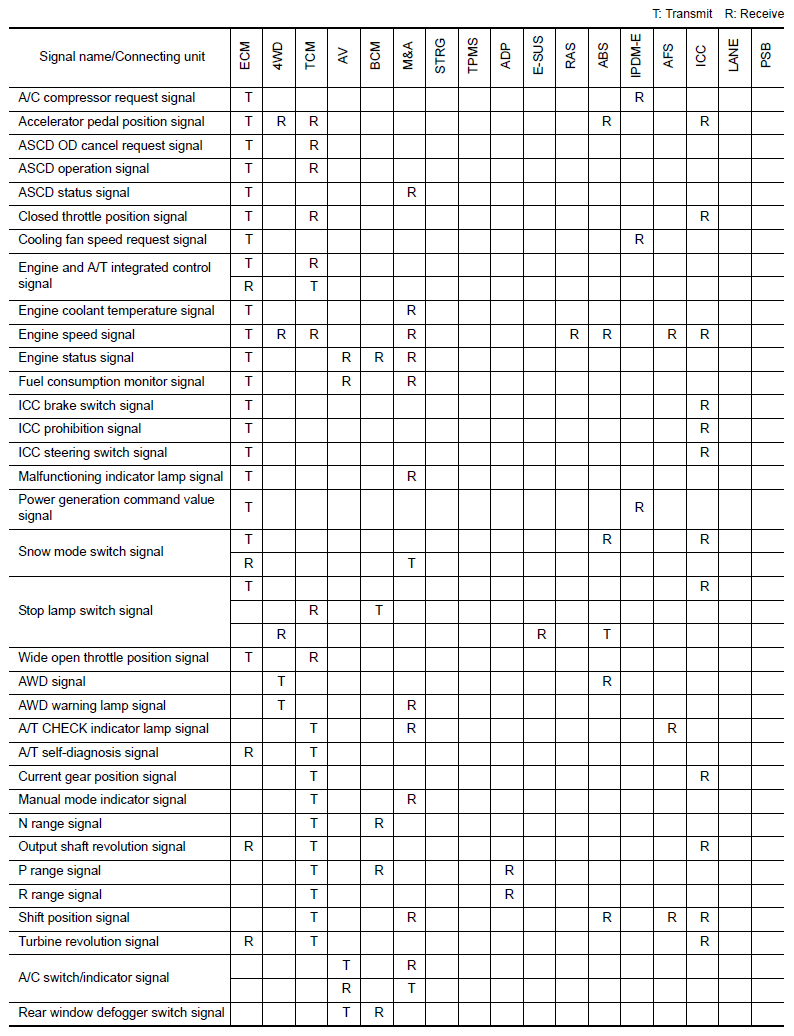

Fig 4: CAN Communication Signal Table (4 Of 4)

Courtesy of NISSAN MOTOR CO., U.S.A.

NOTE: CAN data of the air bag diagnosis sensor unit is not used by usual service work, thus it is omitted.
