System Diagram

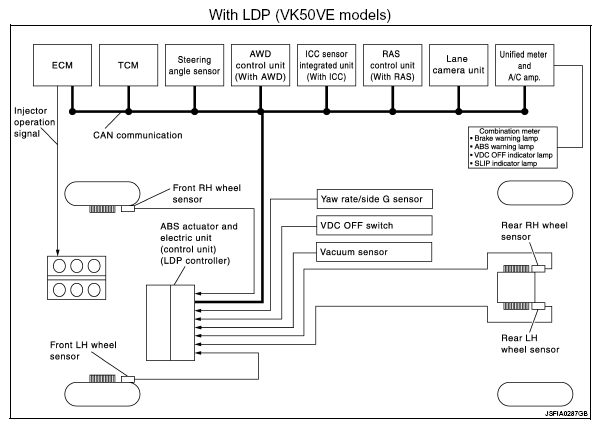

Fig 1: TCS System Diagram (With LDP - VK50VE Models)

Courtesy of NISSAN MOTOR CO., U.S.A.

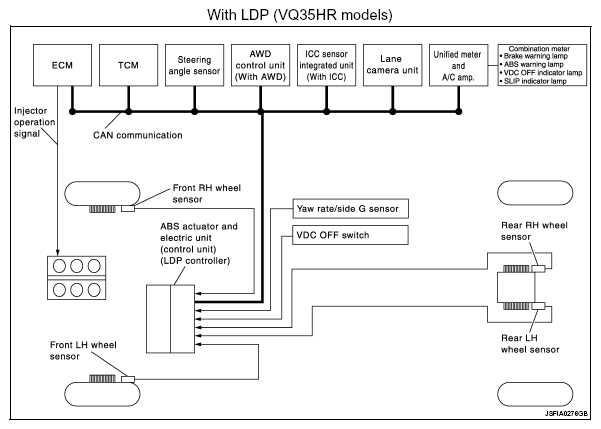

Fig 2: TCS System Diagram (With LDP - VQ35HR Models)

Courtesy of NISSAN MOTOR CO., U.S.A.

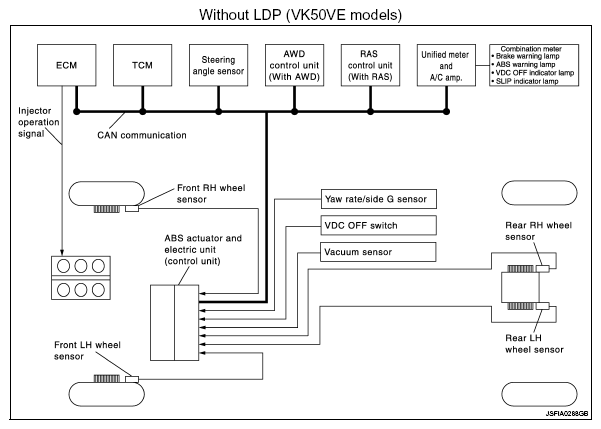

Fig 3: TCS System Diagram (Without LDP - VK50VE Models)

Courtesy of NISSAN MOTOR CO., U.S.A.

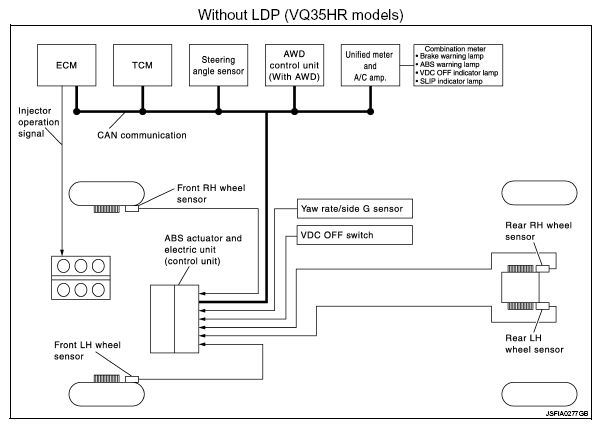

Fig 4: TCS System Diagram (Without LDP - VQ35HR Models)

Courtesy of NISSAN MOTOR CO., U.S.A.
